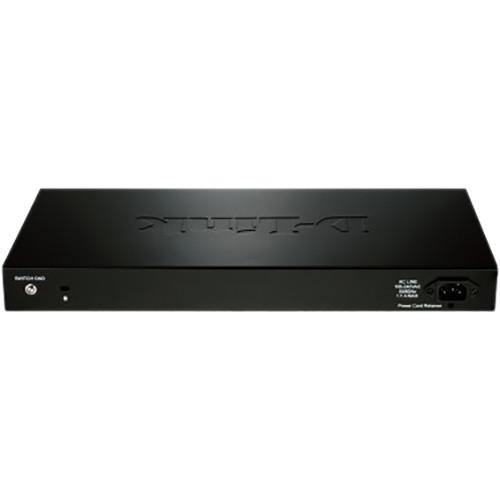

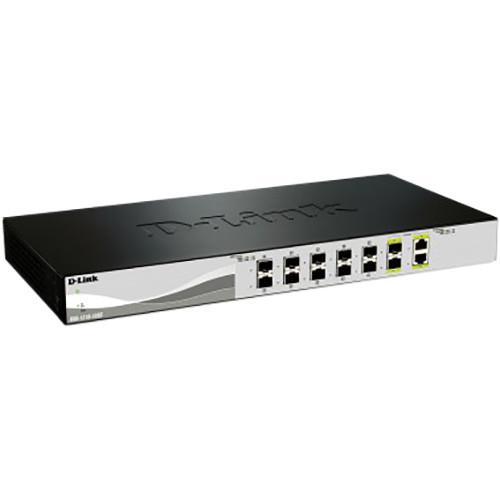

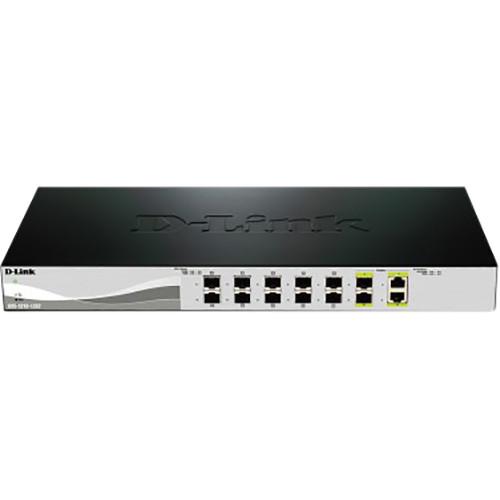

User Manual for D-Link 10 GB Ethernet Smart Switch with Two 10GBASE-T SFP Combo Ports and Ten 10G SFP Optical Ports Click to enlarge the picture
Contents of the user manual for the D-Link 10 GB Ethernet Smart Switch
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link 10 GB Ethernet Smart Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description Provided by third party: D-Link's DXS-1210 series 10 Gigabit Ethernet Smart Switches are great 10 GbE switches capable of servicing a range of network needs in any business. Supporting 10GBASE-T/ SFP+ combo ports, they provide connection flexibility across a network allowing easier network integration. With high performance and low latency, these switches can fulfill the needs for virtualization, cloud services and server-to-server applications, making it perfect for SMB customers.
- Key Features
-
- Energy saving
- Extensive management and layer 2 features
- QoS, bandwidth control
- Secure your network
- Versatile management
UPC: 790069412752 More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link 10 GB Ethernet Smart Switch with Two 10GBASE-T SFP Combo Ports and Ten 10G SFP Optical Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DXS-1210-12SC Specs | | | Device Type | Switch - 12 ports - managed | | Enclosure Type | Desktop, rack-mountable 1U | | Subtype | 10 Gigabit Ethernet | | Ports | 10 x 10 Gigabit SFP+ + 2 x combo 10 Gigabit SFP+ | | Performance | Switching capacity: 240 Gbps
Forwarding performance: 178.56 Mpps | | Capacity | ACL entries: 512
ACL rules: 512
ARP entries: 128
IPv4 routes (static): 32
IPv6 routes (static): 32
IGMP groups: 1000
QoS hardware queues per port: 8 | | MAC Address Table Size | 16K entries | | Jumbo Frame Support | 9KB | | Routing Protocol | Static IPv4 routing, static IPv6 routing | | Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI | | Encryption Algorithm | SSL, TLS, SSL 3.0, SSL 2.0, PEAP, TTLS | | Authentication Method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), internal user database, Extensible Authentication Protocol (EAP) | | Features | Flow control, BOOTP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, Deficit Weighted Round Robin (DWRR), LLDP support, DHCP relay, Port Security, IP-MAC binding, port based access control, SNMP trap, DHCP client, Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), Class of Service (CoS), Type of Service (ToS), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), system log, IP source guard, Deficit Round Robin (DRR), host based access control | | Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az | | | | Interfaces | 2 x 10GBase-T RJ-45
12 x 10Gbit LAN SFP+ | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 25.22 Watt | | | | Compliant Standards | VCCI, C-Tick, BSMI, cUL, CB, CCC, FCC | | | | Width | 17.3 in | | Depth | 8.3 in | | Height | 1.7 in | | Weight | 6.02 lbs | | | | Min Operating Temperature | 23
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
