User Manual for D-Link 18-Port 10 100 Unmanaged Desktop Rackmount PoE Switch with Two 1000Base-T SFP Combo Ports Click to enlarge the picture
Contents of the user manual for the D-Link 18-Port 10 100 Unmanaged Desktop
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link 18-Port 10 100 Unmanaged Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

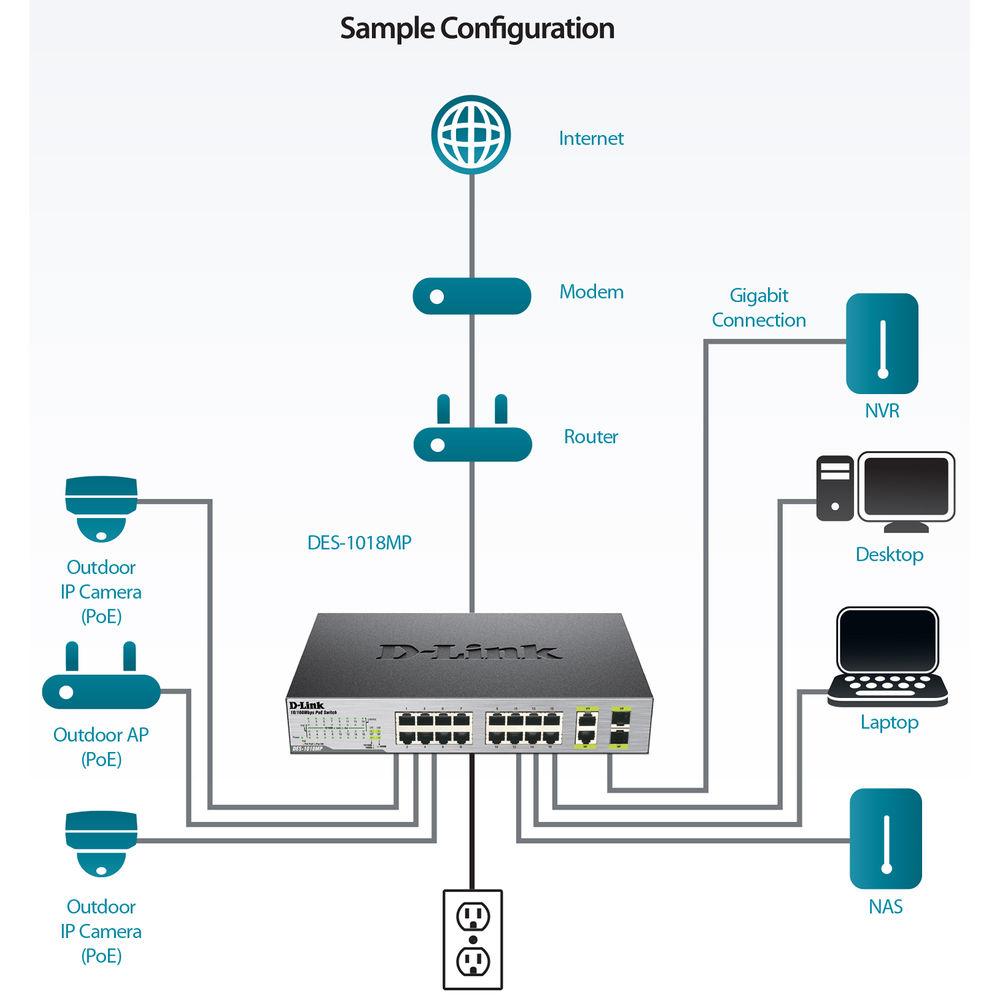

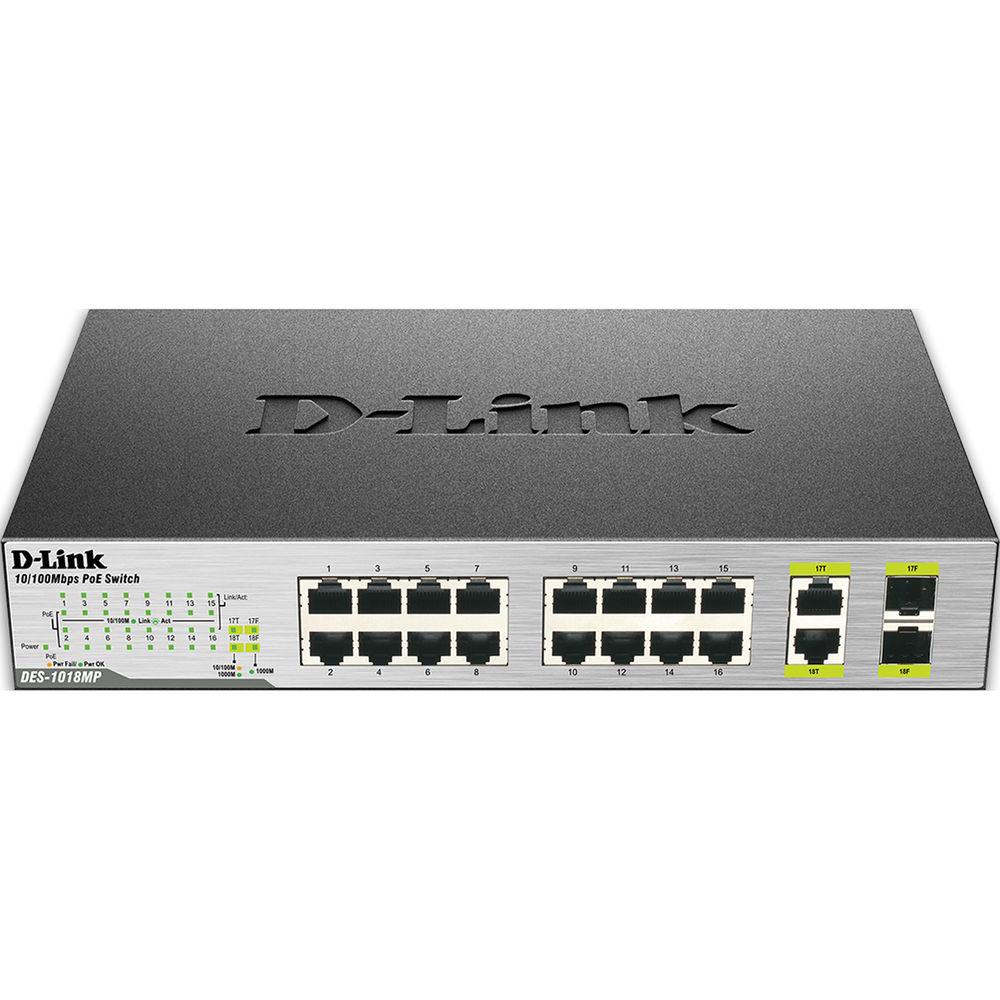

Product description Provided by third party: The D-Link DES-1018P/DES-1018MP 18-Port Fast Ethernet PoE Switches with 2 Gigabit Uplink Ports enables users to easily connect and supply power to PoE-capable devices such as wireless access points (APs), network cameras and IP phones. They can also connect other Ethernet devices like computers, printers and network attached storage (NAS) to fit into any type of network application.
- Key Features
-
- Power your devices
- Reliability PoE connections
- Flexible connectivity
- Power your devices
- It supports IEEE 802.3af Power-over-Ethernet (PoE) to power on your PoE-capable network devices via Ethernet cables without using power adapters.
- Reliability PoE connections
- Enhanced surge protection on all PoE ports protects the switch when feeding power to outdoor PoE capable devices.
- Flexible connectivity
- All downlink ports support 10/100M speeds, and two Gigabit uplink ports provide redundant, wired speed connection for reliable networking.
UPC: 790069406744 More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link 18-Port 10 100 Unmanaged Desktop Rackmount PoE Switch with Two 1000Base-T SFP Combo Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DES-1018MP Specs | | | Device Type | Switch - 18 ports - unmanaged | | Enclosure Type | Desktop 1U | | Subtype | Fast Ethernet | | Ports | 16 x 10/100 (PoE) + 2 x combo Gigabit SFP | | Power Over Ethernet (PoE) | PoE | | PoE Budget | 80 W | | Performance | Switching capacity: 7.2 Gbps
Forwarding performance (64-byte packet size): 5.36 Mpps | | MAC Address Table Size | 8K entries | | Features | Flow control, power over Ethernet (PoE), auto-uplink (auto MDI/MDI-X), store and forward, Energy Efficient Ethernet | | Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az | | Status Indicators | Port transmission speed, power, link OK, link/activity | | | | Interfaces | 16 x 100Base-TX RJ-45 PoE - 15.4 W
2 x 1000Base-T RJ-45
2 x 1000Base-X SFP | | | | Power Device | Internal power supply | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 102.6 Watt | | | | MTBF | 395,864 hours | | Compliant Standards | FCC Class A certified, cUL, CB, CCC, RoHS, LVD | | | | Width | 11 in | | Depth | 8.3 in | | Height | 1.7 in | | Weight | 3.92 lbs | | | | Min Operating Temperature | 32
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 28 owners. Add your rating and experience with the product.
