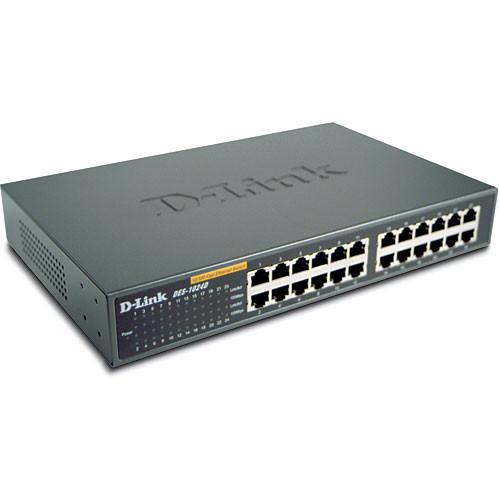

User Manual for D-Link 24-Port 10 100 Mbps Ethernet Rackmount Switch Click to enlarge the picture
Contents of the user manual for the D-Link 24-Port 10 100 Mbps Ethernet
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
|
User manual for the D-Link 24-Port 10 100 Mbps Ethernet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The 24-Port 10/100 Mbps Ethernet Rackmount Switch from D-Link is a 24-port Ethernet switch that can operate at 10/100 Mbps speeds. The switch features Store and Forward packet-switching and Auto Uplink ports for automatic MDI/MDI-X detection. The switch features a 1U rackmount form factor, making it an excellent addition to your network. - Ease of Use
- The switch is designed for use in small business environments. It features plug and play installation, a 1U rackmount form factor, and an 8K MAC address table. It is an excellent option for businesses that do not require the features of more advanced, managed switches.
- Autosensing MDI/MDI-X Ports
- Every port on the switch is autosensing MDI/MDI-X, so you won't have to worry about switching between standard Ethernet and crossover cables when configuring your network.
UPC: 790069246081 In the Box D-Link 24-Port 10/100 Mbps Ethernet Rackmount Switch Power Cord Limited 5-Year Warranty More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link 24-Port 10 100 Mbps Ethernet Rackmount Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DES-1024D Specs | | | Ports | 24 x 10/100 Mb/s Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3u, 802.3x | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | | | Dimensions | 11 x 7.1 x 1.7" / 28 x 18 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 12.9 x 7.2 x 4.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
