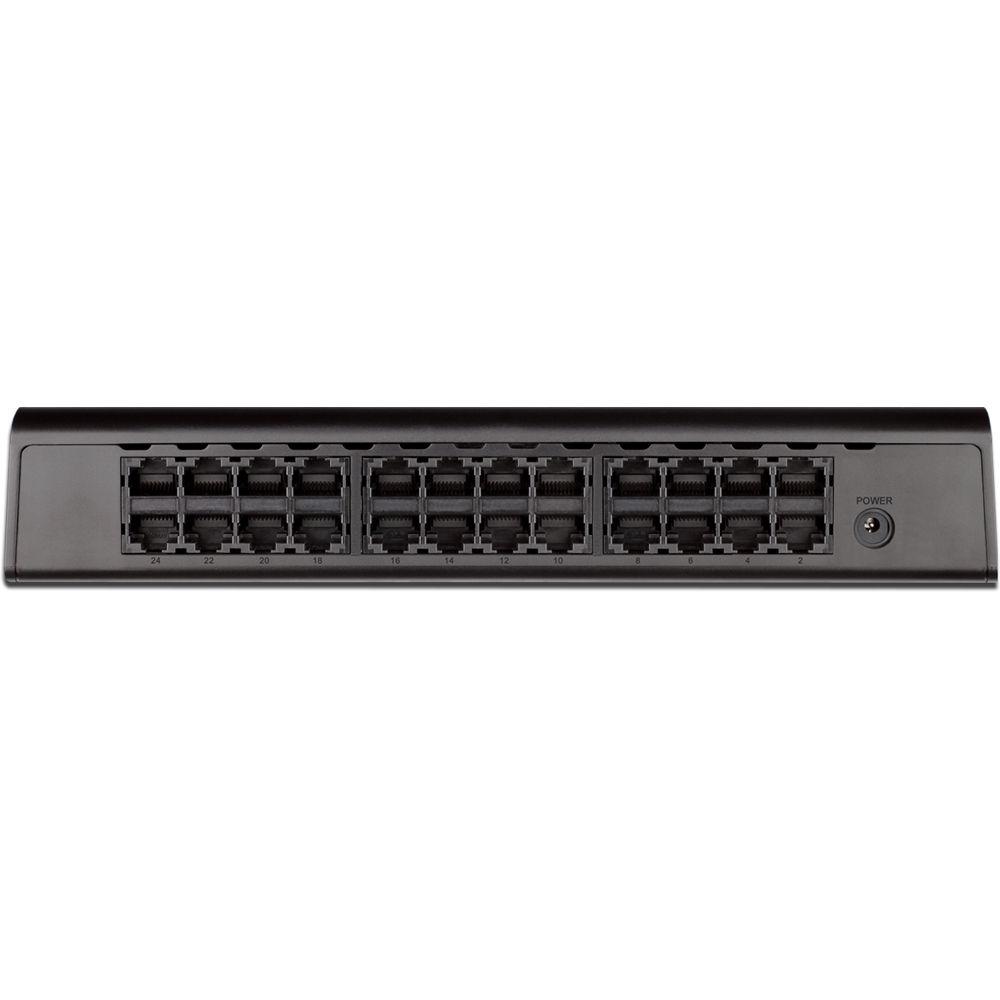

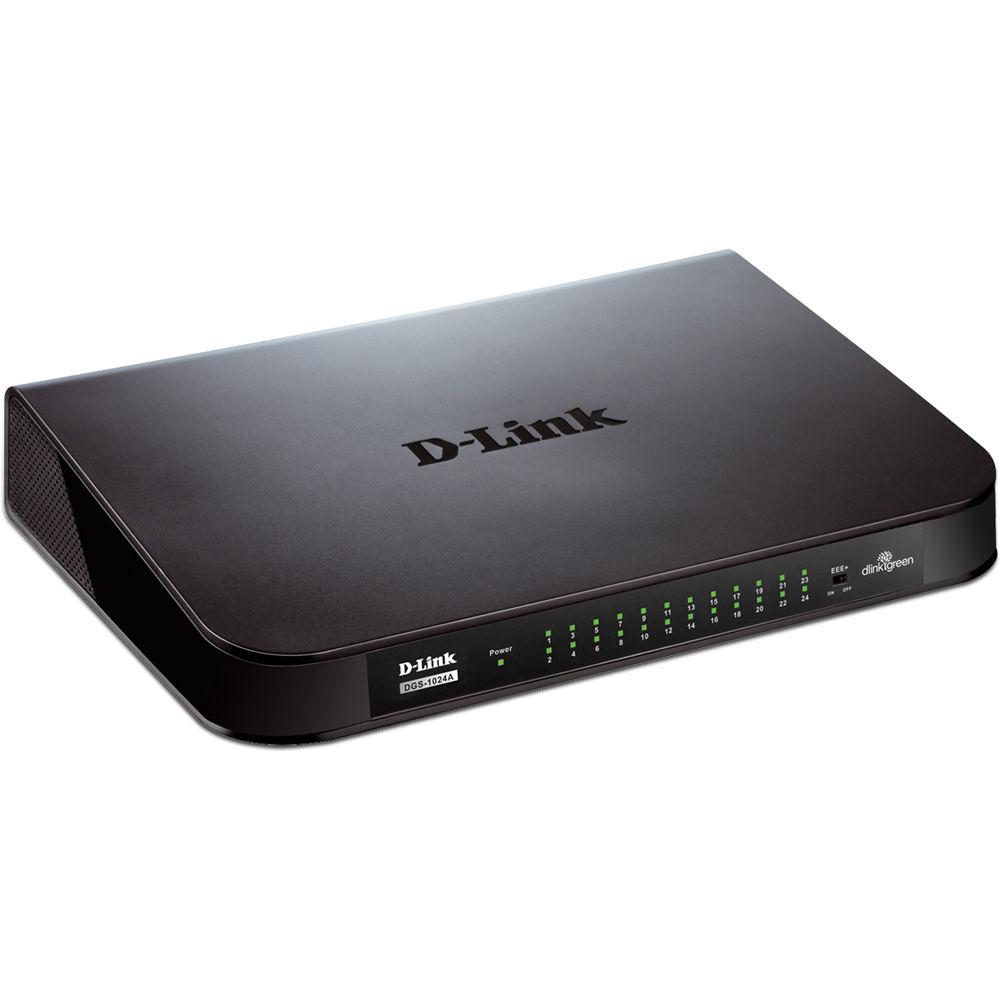

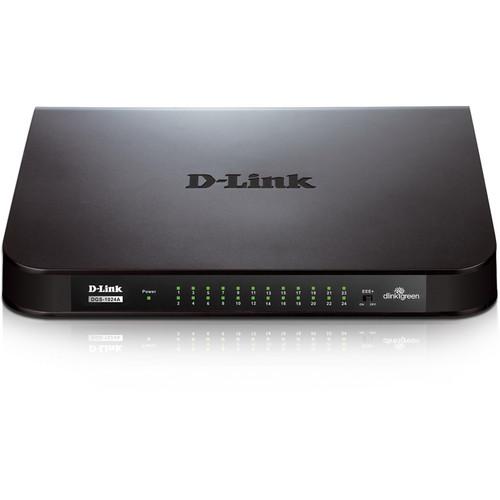

User Manual for D-Link 24-Port Gigabit Desktop Switch Click to enlarge the picture
Contents of the user manual for the D-Link 24-Port Gigabit Desktop Switch
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link 24-Port Gigabit Desktop Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The 24-Port Gigabit Desktop Switch from D-Link comes equipped with 24 Gigabit speed auto MDI/MDIX ports. Take advantage of full/half-duplex for Ethernet/Fast Ethernet speeds and 9,600 bytes jumbo frames. This energy efficient desktop switch comes with a variety of green features including D-Link Green Ethernet Technology, link status detection to reduce power usage, cable length detection, 802.3az EEE hardware implementation, and RoHS compliance. With a fanless design and plug-and-play installation this quiet switch is easy to setup and install. - Gigabit on Every Port
- The 24 Port Unmanaged Gigabit Switch brings the speed of Gigabit Ethernet to each and every port for a truly high-speed network. If your network has a mix of legacy and modern computing capabilities, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. You have the ability to connect every computer and device to your network quickly and efficiently.
- Innovative Design
- Using a compact desktop style the DGS-1024A helps reduce heat levels and allow for a fanless design, making the switch silent, as well as economical. The 24-Port Unmanaged Gigabit Switch is small, lightweight, and wall-mountable making it simple to setup.
- Conserves Energy
- The 24-Port Unmanaged Gigabit Switch helps conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjusts power usage accordingly, helping you save energy without affecting networking performance.
UPC: 790069379666 In the Box D-Link 24-Port Gigabit Desktop Switch AC Power Adapter Limited Lifetime Warranty More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link 24-Port Gigabit Desktop Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-1024A Specs | Ports | 24 x 10/100/1000 Gigabit Ports | | Switching Capacity | 48Gbps | | Standards | IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE) | | Data Transfer Rate | Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex) | | Network Cables | 10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max)
EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T
UTP CAT 5/5e (100m max)
EIA/TIA-568 100-ohm STP (100 m max) | | Media Interface Exchange | Auto MDI/MDIX adjustment for all ports | | LED Indicators | Per port: Link/Activity/Speed
Per device: Power | | Transmission Format | Store-and-forward | | MAC Address Table Size | 16k | | MAC Address Learning | Automatic update | | MAC Address Filtering/Forwarding | Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port | | RAM Buffer | 3.5Mbits | | Jumbo Frames | 9216 Bytes | | D-Link Green | IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
RoHS Compliance | | Power Input | Switching 12V/1.5A level V power adapter | | Power Consumption | Power On (Standby): AC input: 6.86 Watts
Power Max.: AC input: 14.17 Watts | | Heat Dissipation | Power On (Standby): AC input: 23.41 BTU/h
Power Max.: AC input: 48.35 BTU/h | | MTBF | 401,516 hours | | Environmental Requirements | Operating Temperature: 32 to 104°F (0 to 40°C)
Operating Humidity: 10 to 90% non-condensing
Storage Temperature: 14 to 158°F (-10 to 70°C)
Storage Humidity: 5 to 90% non-condensing | | Certifications | FCC Class A, ICES-003 Class A, CE Class A, uCL, CB, VCCI Class A, C-Tick Class A | | Dimensions | 10.1 x 7.0 x 1.8" (257 x 178 x 46 mm) | | Weight | 1.68 lb (760 g) | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 14.0 x 10.1 x 4.0" |
