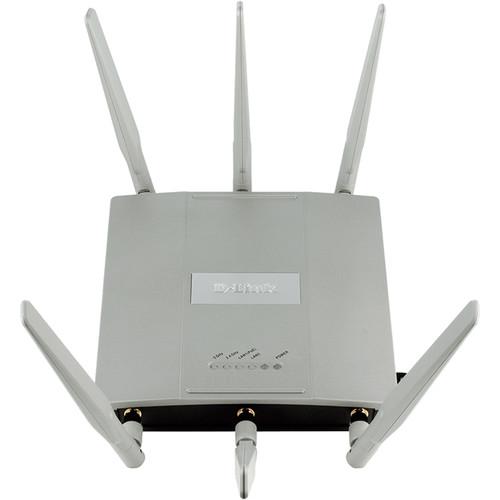

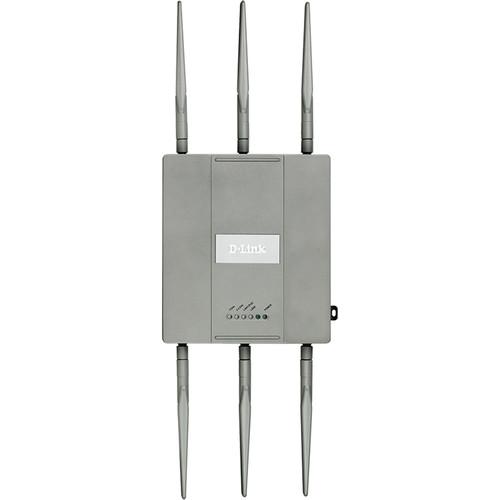

User Manual for D-Link AirPremier DAP-2695 Concurrent Dual Band PoE Access Point Click to enlarge the picture
Contents of the user manual for the D-Link AirPremier DAP-2695 Concurrent Dual Band
- Product category: Wireless Access Points D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Wireless Access Points
 |
User manual for the D-Link AirPremier DAP-2695 Concurrent Dual Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

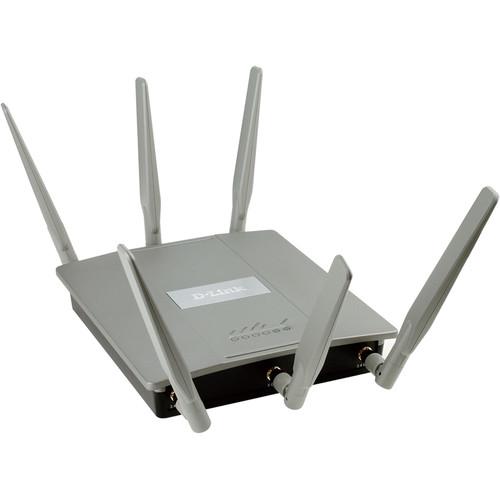

Product description The AirPremier DAP-2695 Concurrent Dual Band PoE Access Point from D-Link uses the 802.11ac standard with maximum wireless signal rates of up to 450 Mb/s over the 2.4 GHz band, and 1300 Mb/s over the 5 GHz band. This, coupled with support for the Wi-Fi Multimedia (WMM) Quality of Service (QoS) feature, makes it suitable for audio, video, and voice applications.
When enabled, QoS allows the DAP-2695 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the access point's web GUI using a drop-down menu option to select customized priority rules. Additionally, it supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.The access point allows network administrators to deploy a manageable and simultaneous dual-band wireless network. All six antennas on the DAP-2695 are detachable and can provide optimal wireless coverage over either the 2.4 GHz (802.11b, 802.11g, and 802.11n) or the 5 GHz (802.11a, 802.11n, and 802.11ac) band. Enclosed in a plenum-rated metal chassis, the access point adheres to strict fire codes for placement in air passageways. The access point supports 802.3at PoE connections, allowing it to be installed in areas where power outlets are not readily available.To help maintain a secure wireless network, the DAP-2695 Access Point supports both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server backend and a built-in internal RADIUS server allowing users to create their accounts within the device itself. This access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling to further protect your wireless network.
The access point includes support for up to eight VLANs per band for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. Additionally, the device supports Network Access Protection (NAP), a feature of Windows Server 2008, allowing network administrators to define multiple levels of network access based on individual client’s need.
The access point comes with Access Point, Wireless Distribution System (WDS) with Access Point, WDS/Bridge (No AP Broadcasting), and Wireless Client operation modes. With WDS support, network administrators can set up multiple DAP-2695s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. The access point also comes with features such as load balancing and redundancy for fail-safe wireless connectivity.Network administrators have multiple options for managing the DAP-2695, including web (HTTP), Secure Socket Layer (SSL), Secure Shell (SSH,), and Telnet. For network management, administrators can use the D-Link AP Manager II, or D-View SNMP management module to configure and manage multiple access points from a single location. In addition, the AP Manager II and D-View software provide network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation. Also available is an AP array, allowing the management of a set of network devices as a single group for easy configuration and deployment. The access point features a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power. Connectivity - Data rates up to 1750 Mb/s
- Simultaneous dual-band connectivity for increased network capacity
- Console port for debugging
- Rugged metal housing and plenum-rated chassis
Security - WPA/WPA2: Enterprise/Personal
- Network Access Protection (NAP)
Ease of Installation - Wall mounting brackets included
UPC: 790069396816 In the Box D-Link AirPremier DAP-2695 Concurrent Dual Band PoE Access Point 6 x Detachable Antennas Power Adapter Wall Mounting Plate and Hardware Ethernet Cable Console Cable Software CD More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link AirPremier DAP-2695 Concurrent Dual Band PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link Access Point DAP-2695 Specs | | | Standards | IEEE 802.11a/b/g/n/ac
IEEE 802.3u/ab/at | | Network Protocol | Telnet
Secure Telnet (SSH)
HTTP
Secure HTTP (HTTPS)
Traffic control
SNMP
D-View module - private MIB
AP Manager II
AP Array | | Data Rate | 2.4 GHz: Up to 450 Mb/s
5 GHz: 1300 Mb/s | | Frequency Range | 2.4 GHz Band: 2.4 to 2.4835 GHz
5 GHz Band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz | | Security | WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server | | Antenna | 3 x 4 dBi for 2.4 GHz
3 x 6 dBi for 5 GHz | | Operation Distance | Not specified by the manufacturer | | Transmitted Power | FCC at 2.4 GHz: 27.5 dBm (with 3 streams)
ETSI at 2.4 GHz: 15.5 dBm (with 3 streams)
FCC at 5 GHz: 27.5 dBm (with 3 streams)
ETSI at 5 GHz: 24.5 dBm (with 3 streams) | | Power Over Ethernet | 802.3at | | Ports | 802.11a/b/g/n/ac wireless

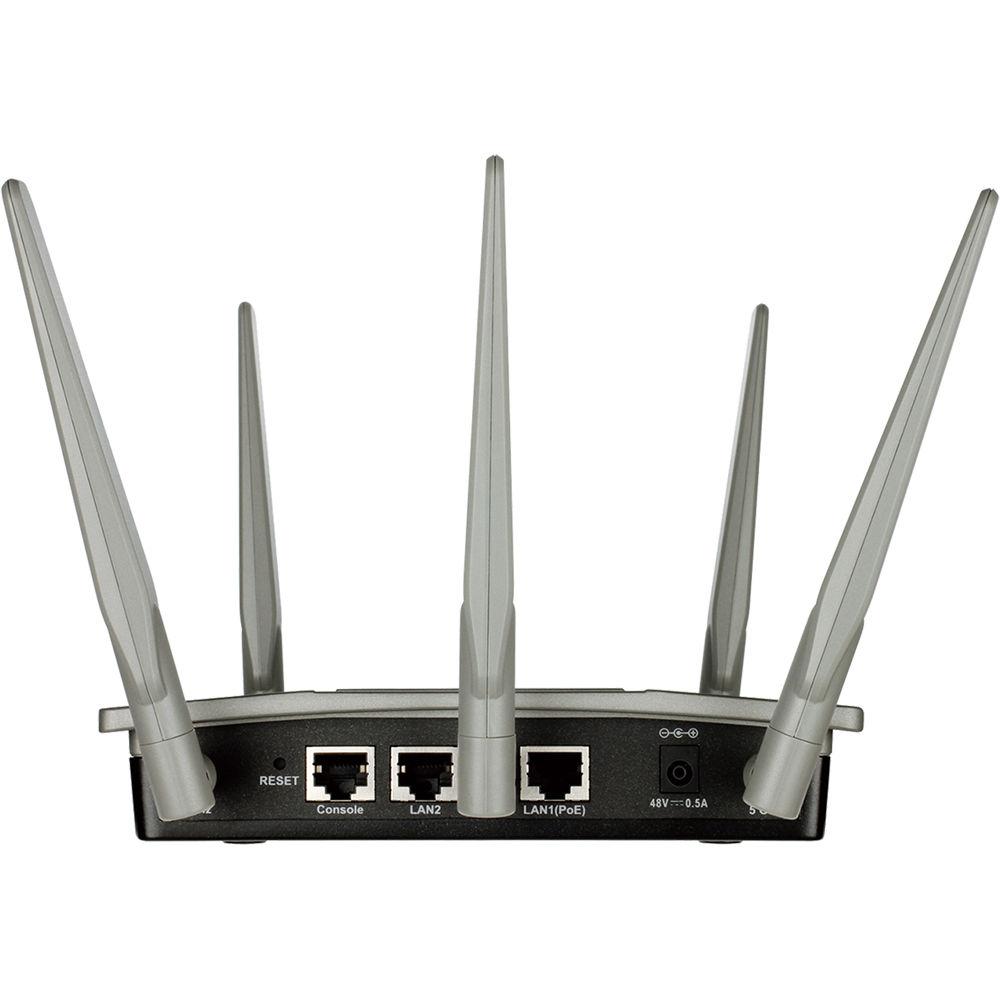

RJ45 console port
2 x Gigabit LAN port (one PoE port supported) | | | | System Requirements | CD-ROM drive
Computers with Windows, Macintosh, or Linux-based operating systems
Installed Ethernet adapter or wireless adapter
Internet Explorer Version 7.0, Chrome 12, Safari 4, or Firefox 12 and above (for web-based configuration) | | Power Requirements | 48 V DC
Rating70% users recommend this product to others. And what about you?
