User Manual for D-Link Covr Tri-Band Whole-Home AC2200 Tri-Band Wi-Fi System Click to enlarge the picture
Contents of the user manual for the D-Link Covr Tri-Band Whole-Home AC2200 Tri-Band
- Product category: Whole Home Smart Wi-Fi D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Whole Home Smart Wi-Fi
 |
User manual for the D-Link Covr Tri-Band Whole-Home AC2200 Tri-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

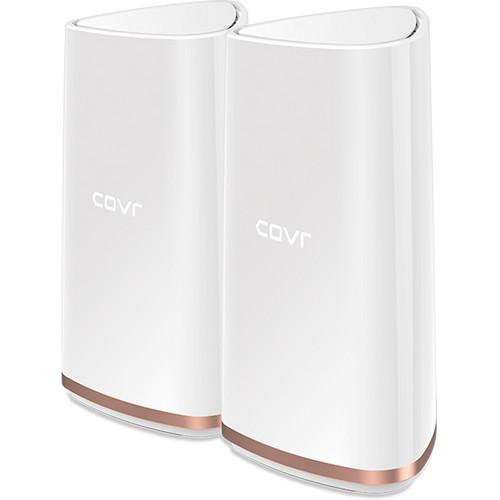

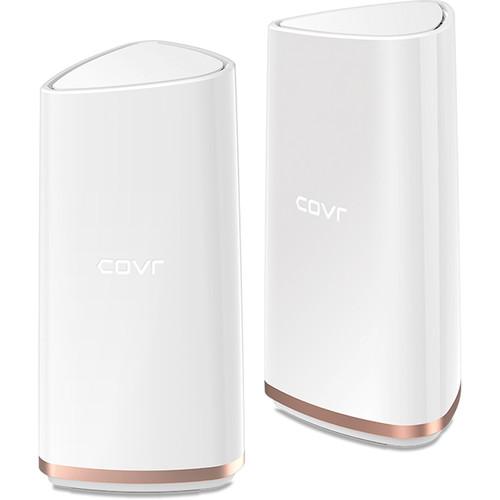

Product description What is Mesh? Read More Blanket your home in wireless coverage with the Covr Tri-Band Whole Home AC2200 Tri-Band Wi-Fi System from D-Link. Each of the two tri-band Covr Points in this whole-home Wi-Fi system supports the Wi-Fi 5 (802.11ac) Wave 2 standard, and each comes equipped with a pair of Gigabit Ethernet ports. Used together, the two Covr Wi-Fi units create a single, unified wireless network with the same network name and password. The Covr Wi-Fi System boasts Smart Roaming technology, which automatically connects your devices to the Covr Point with the strongest signal, while Smart Steering technology directs wireless clients to the most appropriate band. Multi-user MIMO technology allows for multiple devices to stream data simultaneously, ideal for media streaming, internet phone calls, and online gaming. The free D-Link Wi-Fi app for iOS and Android helps to ensure easy network setup. - Whole-Home Wi-Fi Coverage
- The Covr Tri Band Whole Home Wi-Fi System continually scans the wireless signal strength to your devices, automatically connecting them to the strongest signal available. The Covr Tri Band Whole Home Wi-Fi System is designed to handle the transfer seamlessly, allowing you to walk from room to room without experiencing dropped VoIP calls or frozen video streams. A single, seamless network using a single network name (SSID) helps to prevent interrupted connections, drop-outs, and dead spots.
- Wired and Wireless Connectivity
- Each Covr Point creates its own exclusive AC2200 Wi-Fi zone for communication with your wireless devices. In addition, Gigabit Ethernet ports give you wired performance for devices such as Network Attached Storage (NAS), media centers, and gaming consoles. COVR-2202's tri-band design uses a dedicated 5 GHz smart backhaul connection to communicate between Covr Points. This helps to boost network efficiency and ensures that connected devices are experiencing optimal performance when connecting to the Covr Points.
- Multi-User MIMO Technology
- The Covr Tri Band Whole Home Wi-Fi System features Multi-User Multiple Input Multiple Output (MU-MIMO) Wi-Fi, which transmits data to multiple wireless devices simultaneously to increase speed and efficiency. MU-MIMO support is ideal for streaming media, Internet phone calls, online gaming, and web surfing.
- Smart Steering Technology
- Covr Points are designed to automatically place your device on the optimal wireless band depending on network traffic conditions.
- Setup and Network Expansion
- The Covr Points work straight out of the box, so you just need to plug them in to get started. Configure your network with the free D-Link Wi-Fi app on your Android or iOS mobile device, or use the intuitive web-based interface. Extra Covr Points can easily be added and synced to increase the reach of your network. Not enough coverage upstairs or in the back room? Scale up your Wi-Fi by adding another Covr Point to get true whole-home coverage.
- WPS Support
- The Wi-Fi Protected Setup (WPS) button establishes an instant connection to supported devices without the need to enter settings or create passwords.
UPC: 790069435782 In the Box D-Link Covr Tri-Band Whole-Home AC2200 Tri-Band Wi-Fi System 2 x Power Adapters Ethernet Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link Covr Tri-Band Whole-Home AC2200 Tri-Band Wi-Fi System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link COVR-2202-US Specs | | | Wi-Fi Standard | Wi-Fi 5 (802.11ac/n/g/a) Wave 2 | | Ports | 2 x 10/100/1000 Ethernet LAN Ports (per Unit) | | LEDs | COVR Status LED | | Antennas | 6 x Internal Antennas | | Data Rate | 2.4 GHz: Up to 400 Mb/s
5 GHz: Up to 866 Mb/s
5 GHz (Backhaul): Up to 866 Mb/s | | IEEE Standards | 802.3i
802.3u
802.3ab | | | | Security | WPA/WPA2 Encryption | | Advanced Features | Auto-Configuration
Wireless Roaming
Wireless Band Steering
Wireless Air Time Fairness (ATF)
Web-Based Setup Wizard
Smart Backhaul
Quality of Service (QoS)
MU-MIMO (Wi-Fi)
Wi-Fi Protected Setup (WPS) | | | | Power Input | 100-240 VAC, 50/60 Hz | | Power Consumption | 20 W | | | | Operating Temperature | 32-104°F / 0-40°C | | Storage Temperature | -4-158°F / -20-70°C | | Operating Humidity | 10-90% (Non-Condensing) | | Storage Temperature | 5-90% (Non-Condensing) | | | | Certifications | FCC
IC
CE
RCM
IDA
CB
LVD
RoHS | | Dimensions | 3.54 x 3.94 x 7.87" / 90 x 100 x 200 mm | | Weight | 1.52 lb/ 690 g | | | | Package Weight | 5.27 lb | | Box Dimensions (LxWxH) | 17.0 x 14.5 x 10.2" |
