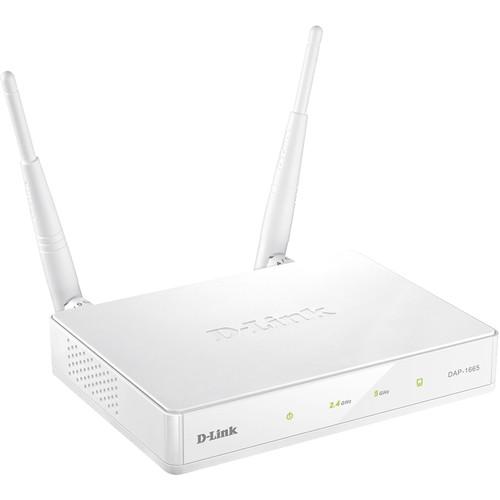

User Manual for D-Link DAP-1665 Wireless AC1200 Dual Band Access Point Click to enlarge the picture
Contents of the user manual for the D-Link DAP-1665 Wireless AC1200 Dual Band
- Product category: Wireless Access Points D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Wireless Access Points
 |
User manual for the D-Link DAP-1665 Wireless AC1200 Dual Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

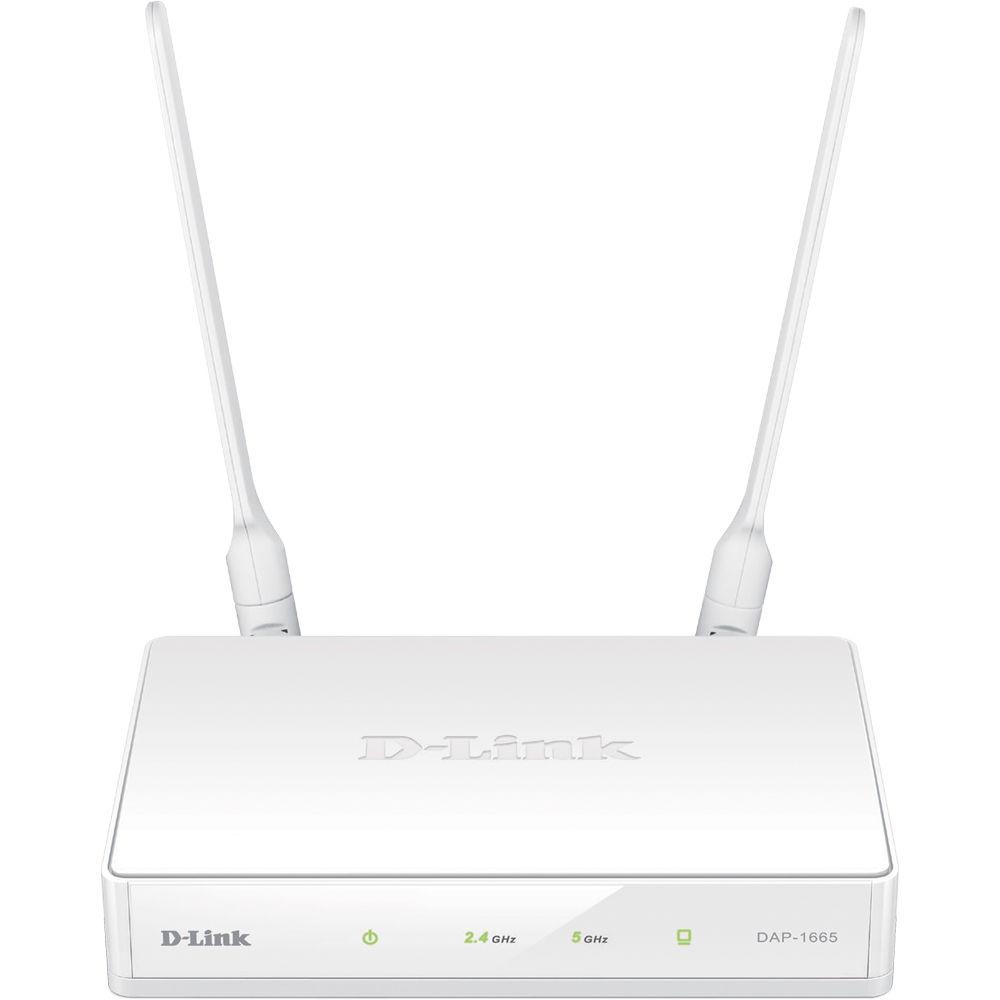

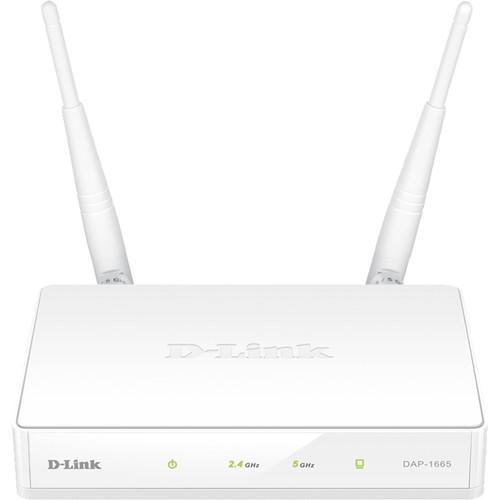

Product description The DAP-1665 Wireless AC1200 Dual Band Access Point from D-Link uses the 802.11ac wireless technology, to deliver combined speeds of up to 1200 Mb/s over two bands. You can use the 2.4 GHz band’s 300 Mb/s for web surfing, email, and chat, and also simultaneously use the lower-interference 5 GHz band’s 867 Mb/s for network bridging, downloading, video streaming, and file transfers. For wired connections, the Gigabit LAN port enables wired data speeds of up to 1000 Mb/s.
The DAP-1665 can be configured to operate in several modes. The Access Point mode allows the device to act as a central hub for wireless users, giving them access to an existing wired network. The Bridge mode creates a high-speed wireless link between two wired networks (LANs), alleviating the need to install additional network cabling. The Repeater mode extends wireless coverage of an existing wireless network to cover “dead” spots and reach farther into a business environment. The Bridge mode with AP adds the functionality of a wireless access point to a bridged network, so wireless clients can access resources on both networks. The Wireless Client mode allows you to connect the DAP-1665 to another access points and provide network and Internet access to a remote wired device such as a gaming console or media center.The DAP-1665 provides WPA/WPA2 security to protect the network and wireless data. This device also supports Wi-Fi Protected Setup (WPS) to quickly and securely set up a secure wireless network. In addition, the access point features MAC address filtering and a disable SSID broadcast function to limit outsiders’ access to the wireless network. It also comes with a Kensington security slot. Wireless and Wired LAN - 802.11ac wireless technology
- Backwards-compatible with 802.11n/g/a clients

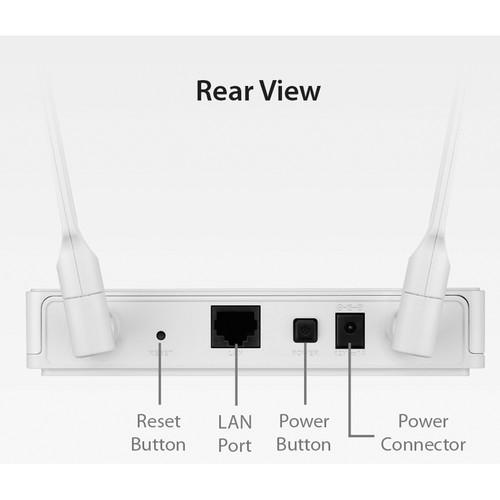

- Gigabit LAN port for wired connections up to 1000 Mb/s
Operating Modes - Access Point mode to add wireless functionality to an existing network
- Bridge mode creates a direct wireless link between two existing LANs
- Repeater mode extends the range of an existing wireless network to reach further throughout a business environment
- Bridge mode with AP adds the functionality of a wireless access point to a bridged network
- Client mode delivers wireless connectivity to a LAN device such as a storage device, media server, or gaming console
Security - WPA/WPA2 security encryption to protect wireless traffic

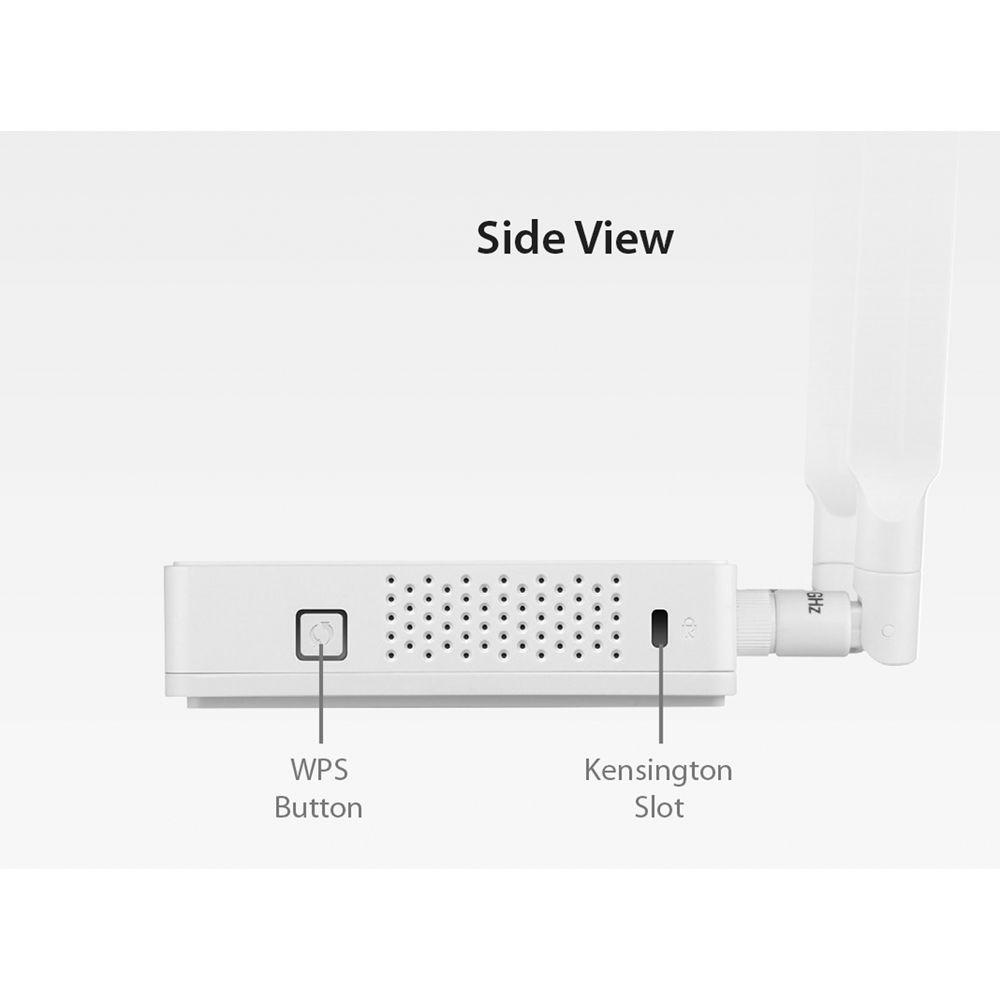

- Quickly and easily add new wireless devices with Wi-Fi Protected Setup (WPS)
- Kensington lock port to protect against theft
UPC: 790069398032 In the Box D-Link DAP-1665 Wireless AC1200 Dual Band Access Point Ethernet Cable 2 x Detachable Antennas Power Adapter Wi-Fi Configuration Card Limited 1-Year Warranty More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DAP-1665 Wireless AC1200 Dual Band Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link Access Point DAP-1665 Specs | | | Standards | IEEE 802.11ac
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.3
IEEE 802.3u
IEEE 802.11a | | Network Protocol | Not specified by the manufacturer | | Data Rate | Up to 1200 Mb/s (2.4 GHz: 300 Mb/s, 5 GHz: 867 Mb/s) | | Frequency Range | 2.4 GHz Band: 2.4 to 2.4835 GHz
5 GHz Band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz | | Security | 64/128-bit WEP
WPA-PSK/WPA2-PSK
Wi-Fi Protected Setup (WPS)
MAC address filtering
Kensington security slot
SSID broadcast disable | | LEDs | Power
2.4 GHz wireless
5 GHz wireless
LAN | | Device Management | Web-based Interface Minimum Requirements: Internet Explorer 7, Firefox 12.0, Chrome 20.0, or Safari 4.0 | | Antenna | 2 x 2 dBi external antennas | | Operating Modes | Access Point (AP)
Bridge
Bridge with AP
Wireless Client
Repeater | | Operation Distance | Not specified by the manufacturer | | Transmitted Power | Not specified by the manufacturer | | Interfaces | Draft IEEE 802.11ac wireless LAN
IEEE 802.11n/g/b/a wireless LAN
10/100/1000Base-TX wired LAN | | | | System Requirements | Network
An Ethernet-based Network (AP mode)
IEEE 802.11ac, n, or g wireless clients (AP/Repeater Mode)
IEEE 802.11ac, n, or g wireless network (Client Mode)
Browser Requirements: Internet Explorer 7.0, Chrome, Firefox, or Safari 4.0 or higher | | Power Requirements | Input: 12 V/1 A
Consumption: Maximum 5.18 W | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 149°F / -20 to 65°C | | Humidity | Operating: 10 to 90% non-condensing
Storage: 5 to 95% non-condensing | | Certifications | CE
FCC
IC
Wi-Fi Certified | | Dimensions | 5.79 x 4.25 x 1.1" / 147 x 108 x 27.8 mm | | Weight | 0.489 lb / 0.22 kg | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 10.7 x 8.2 x 2.7" |
