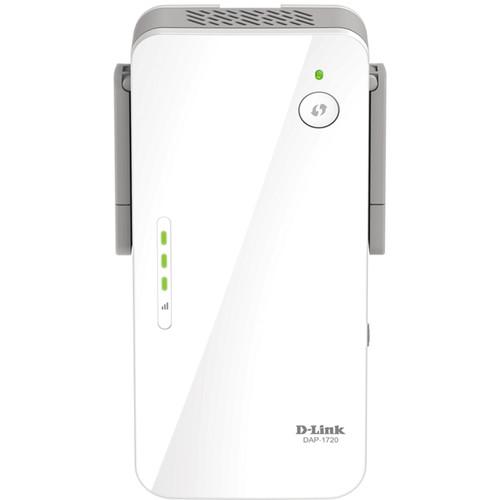

User Manual for D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender

Click to enlarge the picture
D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender Contents of the user manual for the D-Link DAP-1720 AC1750 Dual-Band Wireless Range
  • Product category: Wireless Range Extenders D-Link
  • Brand: D-Link
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for D-Link Wireless Range Extenders

D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender
User manual for the D-Link DAP-1720 AC1750 Dual-Band Wireless Range contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any D-Link product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!



Product description

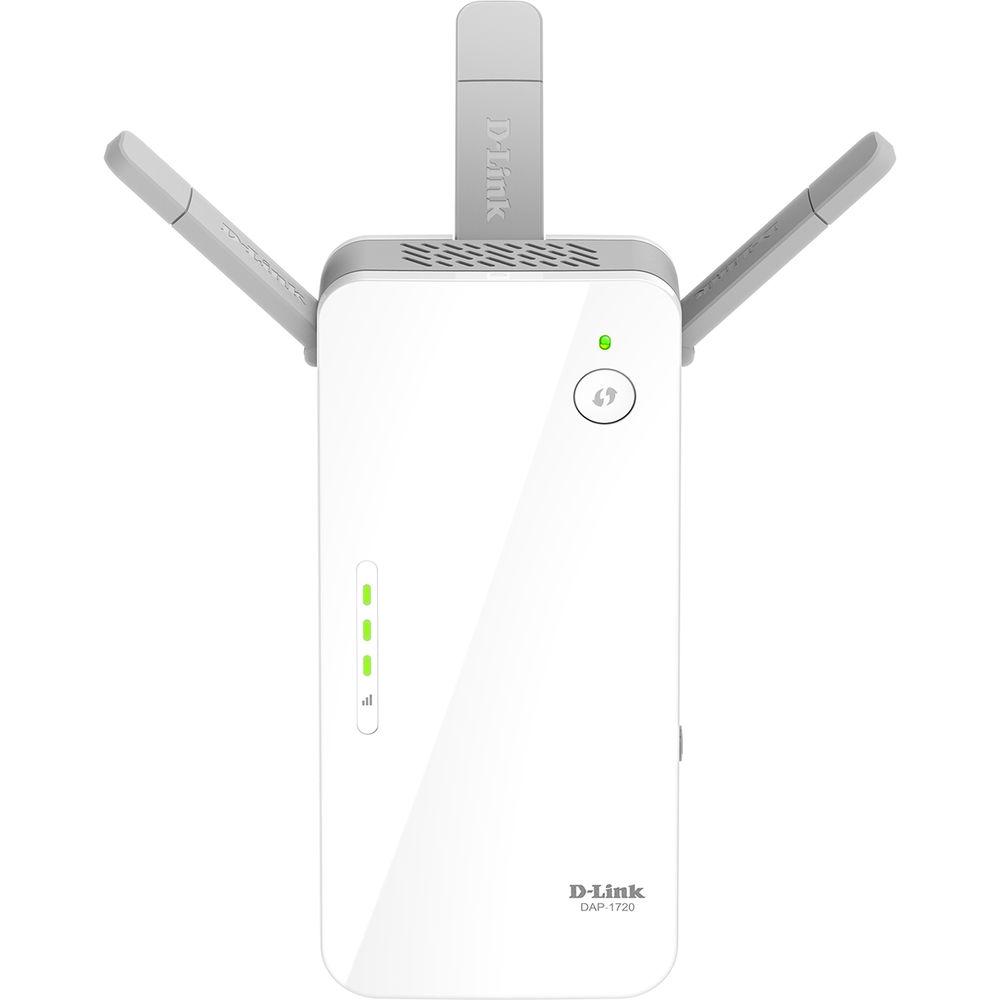

Expand the reach of your existing Wi-Fi network with the DAP-1720 AC1750 Dual-Band Wireless Range Extender from D-Link. This range extender features a one-piece wall-plug design and Smart Signal Indicator, making it easy to find the best location for optimal coverage. This extender supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies, offering wireless data transfer rates of up to 1750 Mbps. With 3 external antennas, you can virtually eliminate all dead zones by extending your Wi-Fi signal to areas previously outside of your coverage area. If a wired connection is needed, this range extender comes equipped with a single Gigabit Ethernet port, making it easy to connect Ethernet-enabled devices directly to the network.
    • 3x3 antenna configuration
    • Wireless 802.11n backward compatibility

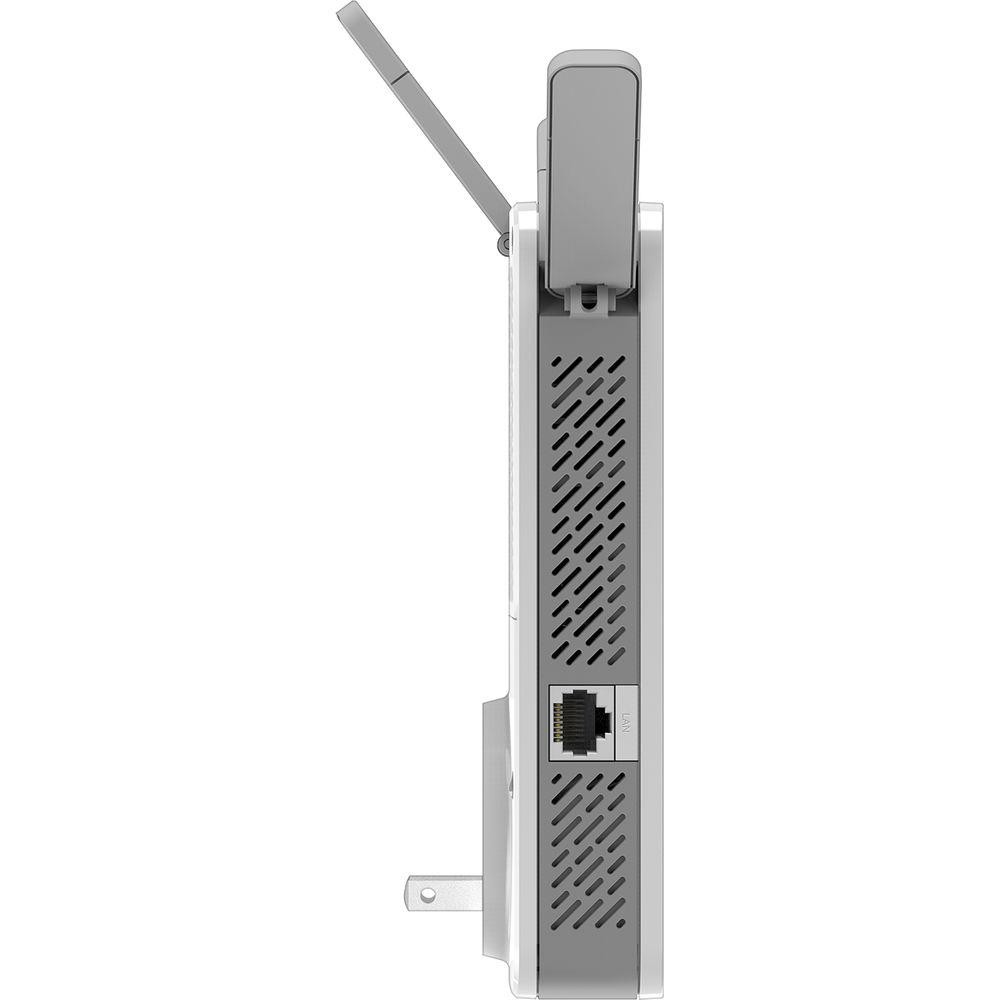

    • One 10/100/1000 Gigabit Ethernet Port
    • AP mode ideal for homes that are pre-wired for Ethernet or for extended coverage
    • WPA2/WPA wireless encryption
    • Wi-Fi Protected Setup (WPS) requires just a simple press of a button

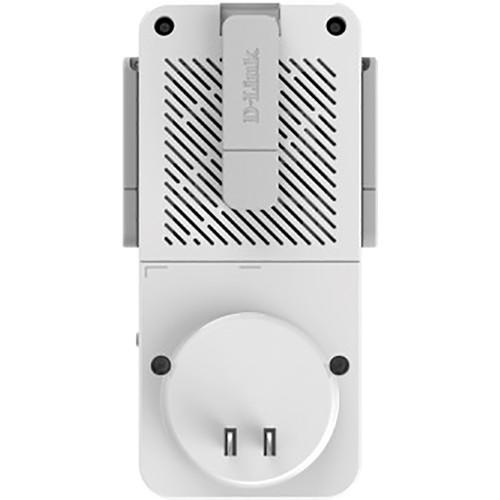

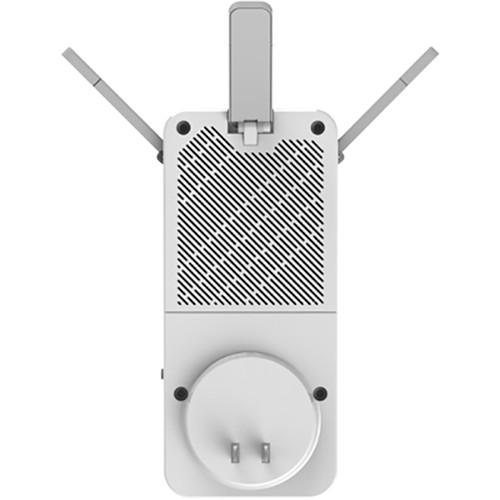

    • One-piece wall-plug design is compact, portable, and does not require additional power cables
    • Built-in setup wizard and QRS Mobile app for simple setup and configuration
    Extend Your Home Wireless Coverage
  • The DAP-1720 extends your existing wireless range to hard-to-reach areas, eliminating dead zones and improving speed
    Simultaneous Dual-Band Wi-Fi Extension
  • Extends both 2.4 GHz and 5 GHz Wi-Fi for combined speeds up to 1750 Mbps at the same time

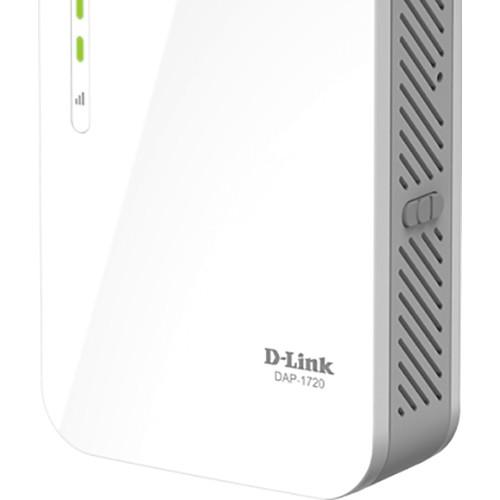

    Smart Signal Indicator
  • The Smart Signal Indicator will help you find the best location for placement of the DAP- 1720 for optimal Wi-Fi coverage throughout your home
    Work with Standard Router or Gateway
  • Works with any standard router or gateway
UPC: 790069428890 In the Box D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender
  • Limited 1-Year Warranty
  • More info from D-Link yxuwyzwuuyaq Table of Contents




    Upload User Manual

    Have you got an user manual for the D-Link DAP-1720 AC1750 Dual-Band Wireless Range Extender in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    D-Link DAP-1720 Specs

    Connectivity IEEE 802.11ac/n/g/a wireless LAN
    10/100/1000 Gigabit Ethernet port

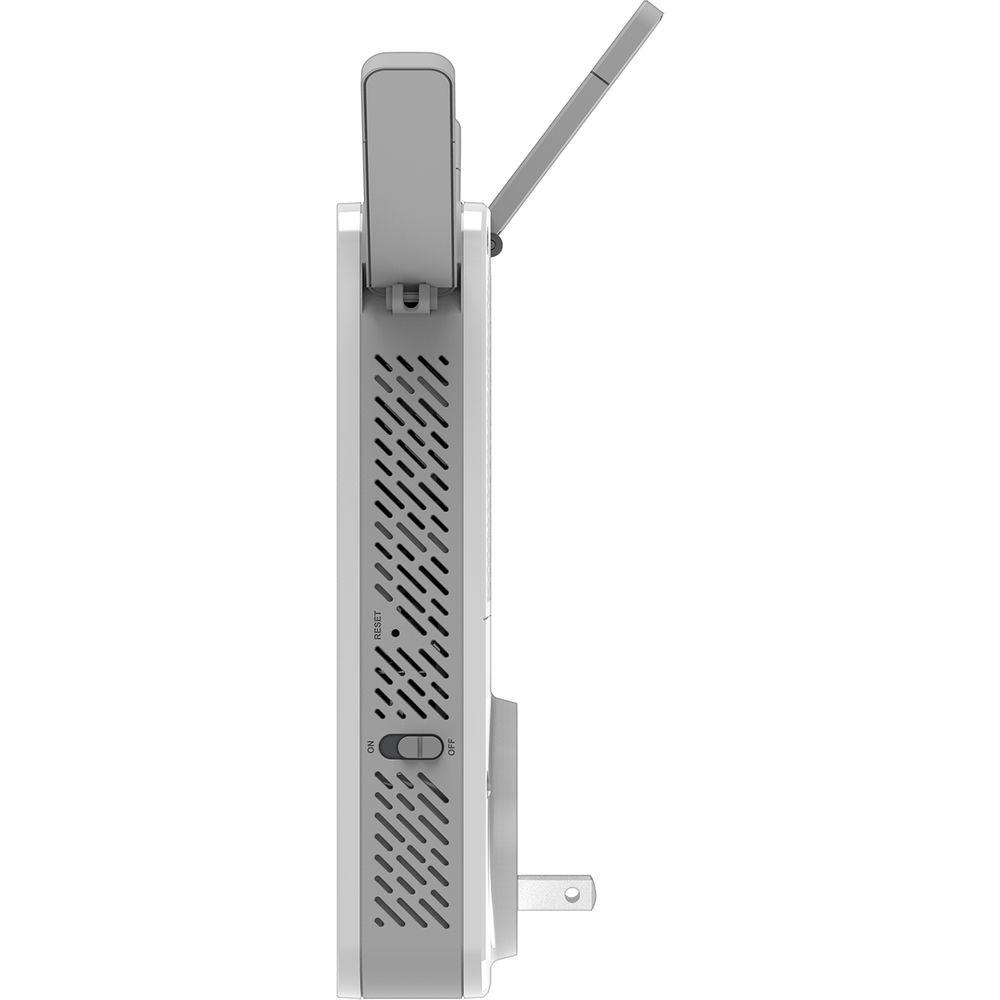

    Interfaces Power switch
    WPS button
    Reset button
    LEDs Status/WPS
    Wi-Fi signal-strength indicator
    Operating Frequencies 2.4 GHz Band: 2400-2483 MHz ISM band
    5 GHz Band: 5180-5850 MHz
    Operating Channels 2.4 GHz Band: 11 channels
    5 GHz Band: 36-165 channels
    Signal Rate 2.4 GHz: 450 Mbps
    5 GHz: 1300 Mbps
    Standards IEEE 802.11ac
    IEEE 802.11n
    IEEE 802.11g
    IEEE 802.11a
    Minimum Requirements Windows 10/8/7/Vista or Mac OS X 10.7 or higher
    Internet Explorer 11, Firefox 28, Safari 6, or Chrome 33 or higher
    Wired or wireless network

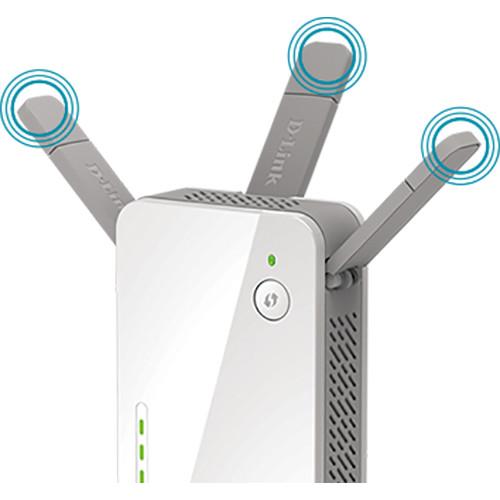

    Antennas 3 x Adjustable external antennas
    Functionality Wireless Security
    Wi-Fi Protected Access (WPA/WPA2)
    WPS (PBC)
    Advanced Features
    D-Link one-touch extender setup
    Device Management
    Supports QRS Mobile app (iOS/Android)
    Web browser
    Temperature & Humidity Operating Temperature
    32-104°F / 0-40°C
    Storage Temperature
    -4-149°F / -20-65°C
    Operating Humidity
    0-90% non-condensing
    Storage Humidity
    5-95% non-condensing
    Power Input: 110-240 VAC; 50/60 Hz
    Certifications FCC
    Wi-Fi Certified
    WPS Setup
    Dimensions 5.25 x 7.75 x 4.50" / 13.33 x 19.69 x 11.43 cm
    Weight 0.90 lb / 0.48 kg
    Package Weight 0.95 lb
    Box Dimensions (LxWxH) 7.9 x 5.4 x 4.5"
