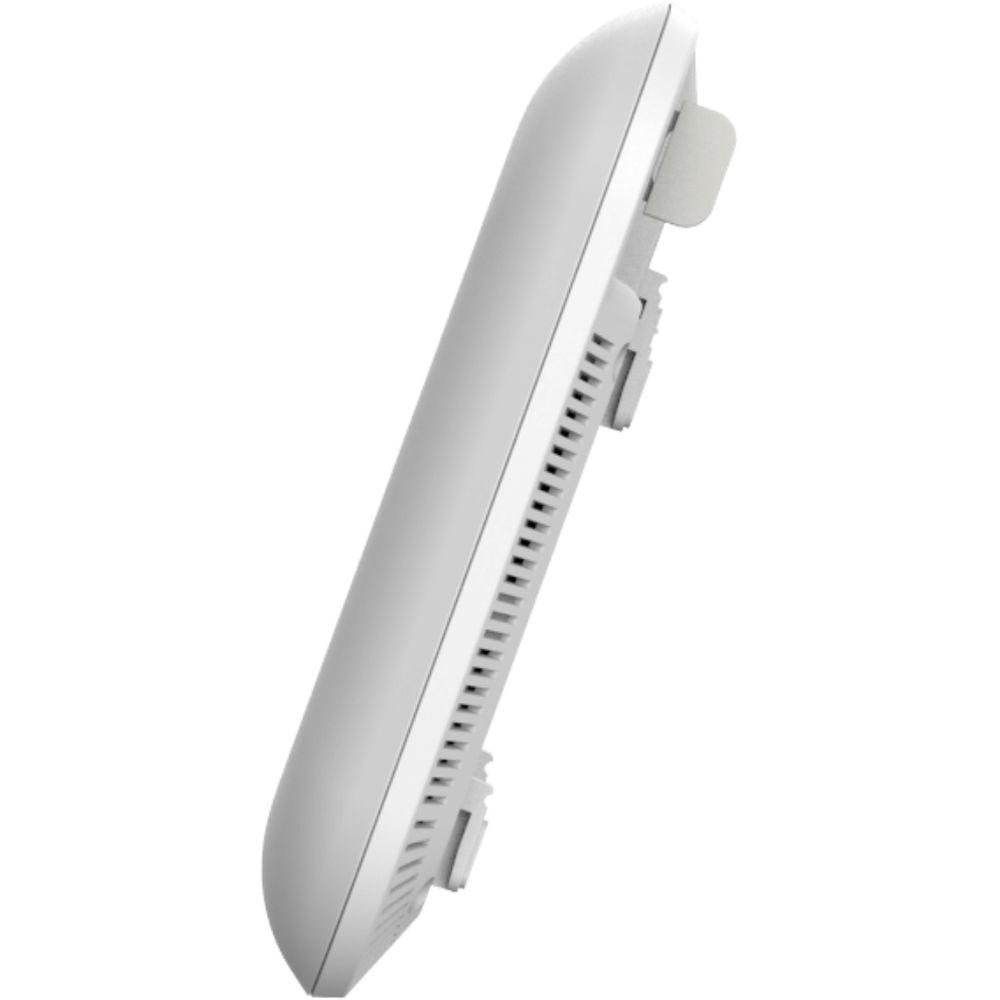

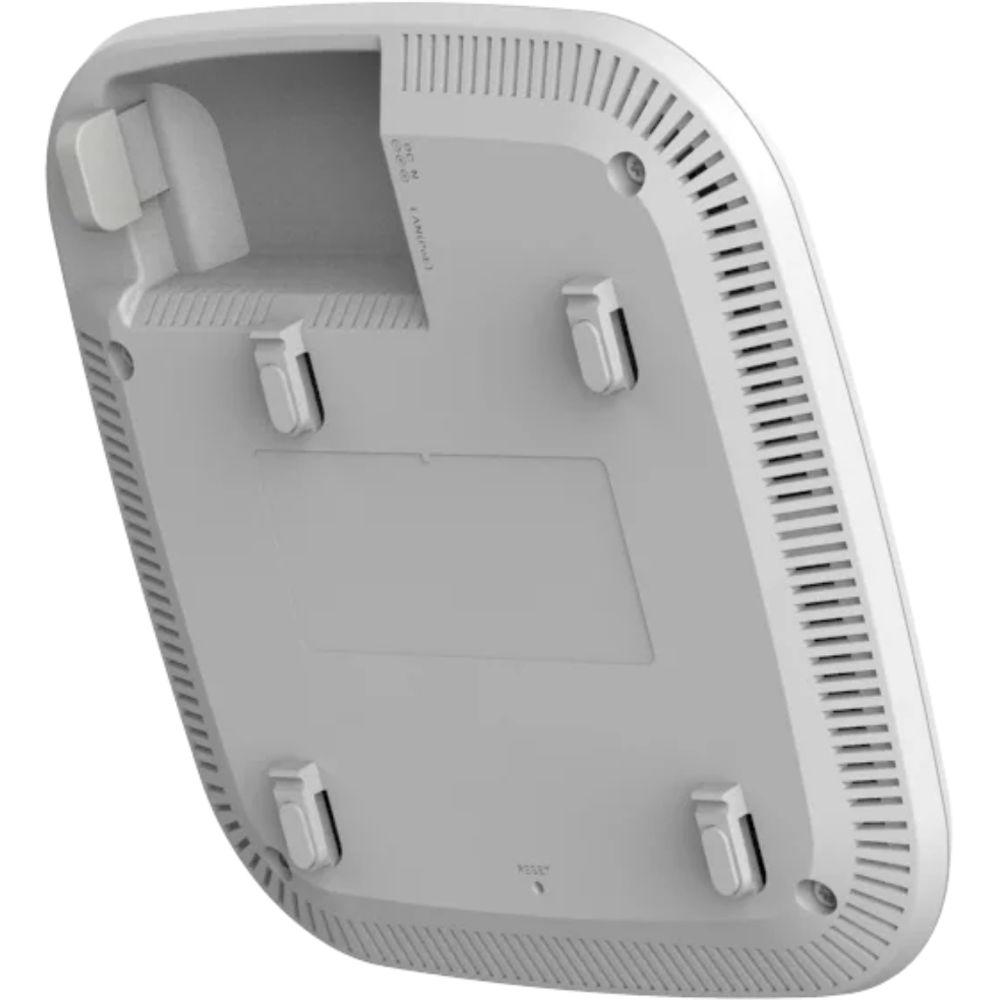

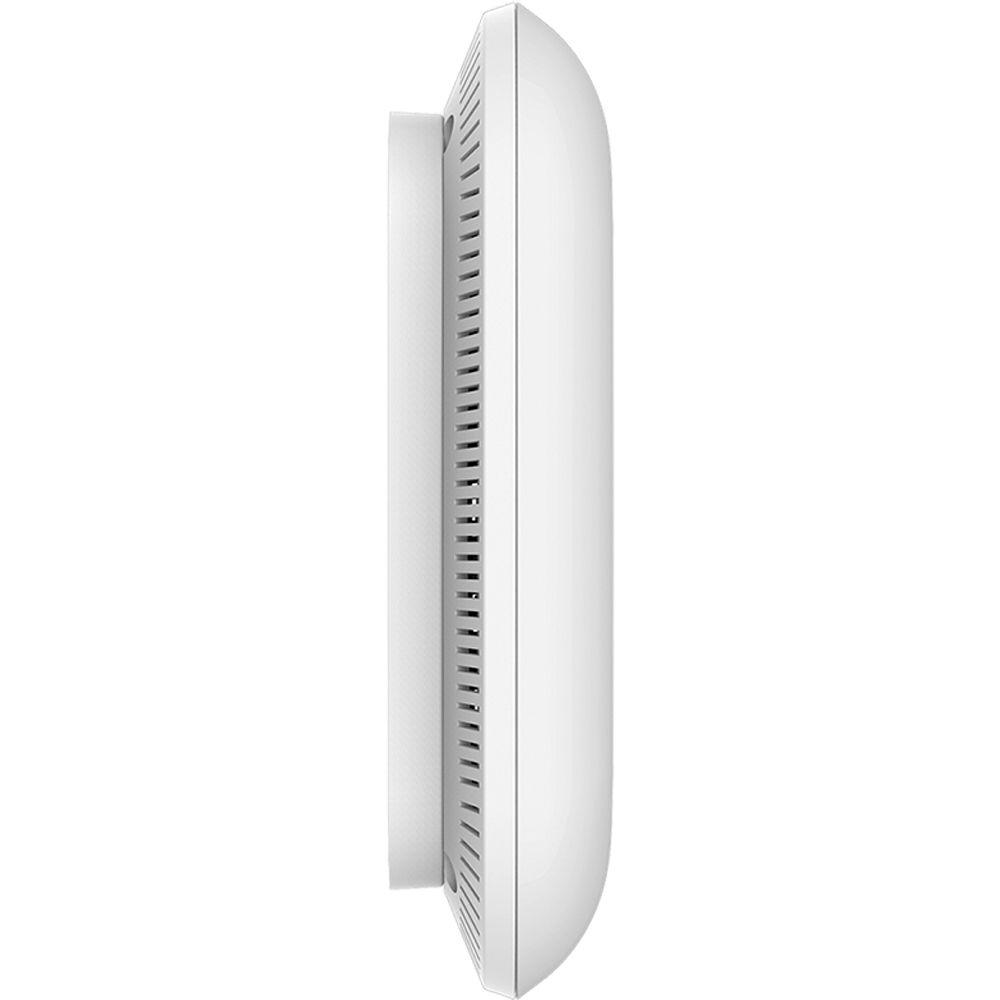

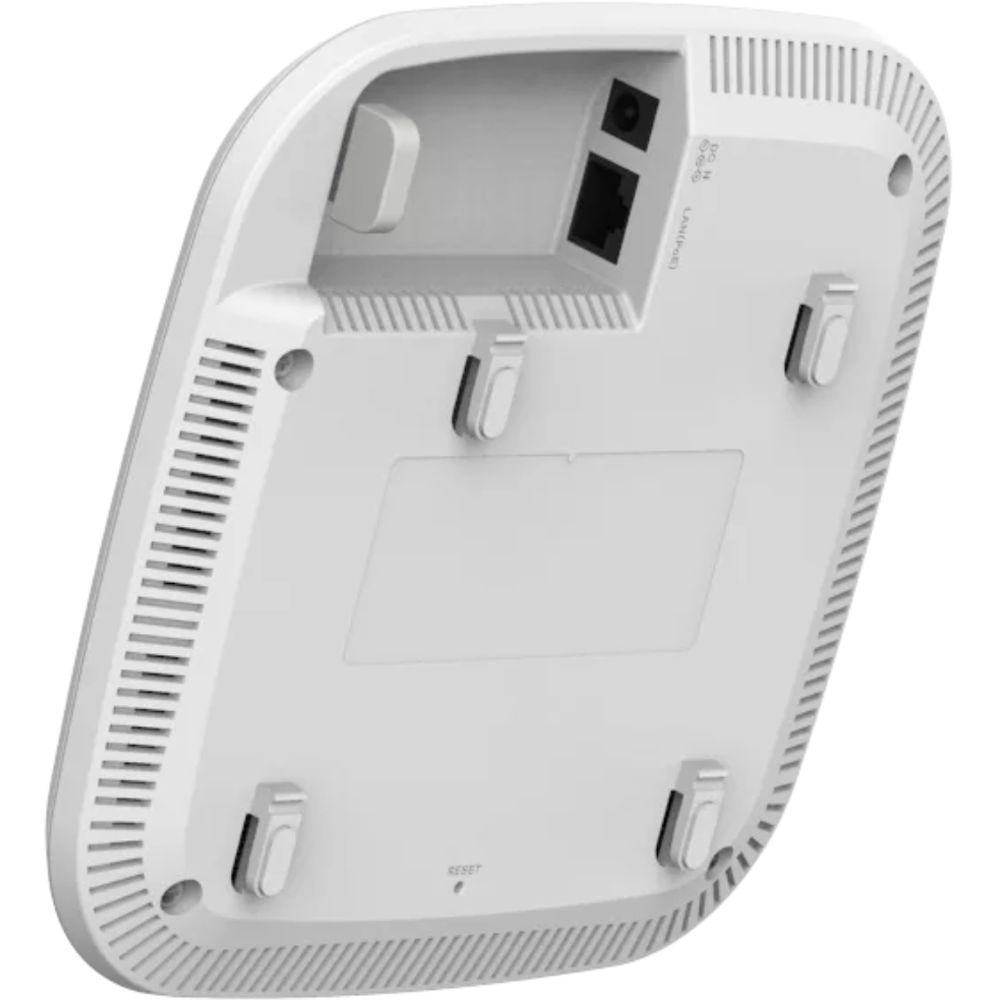

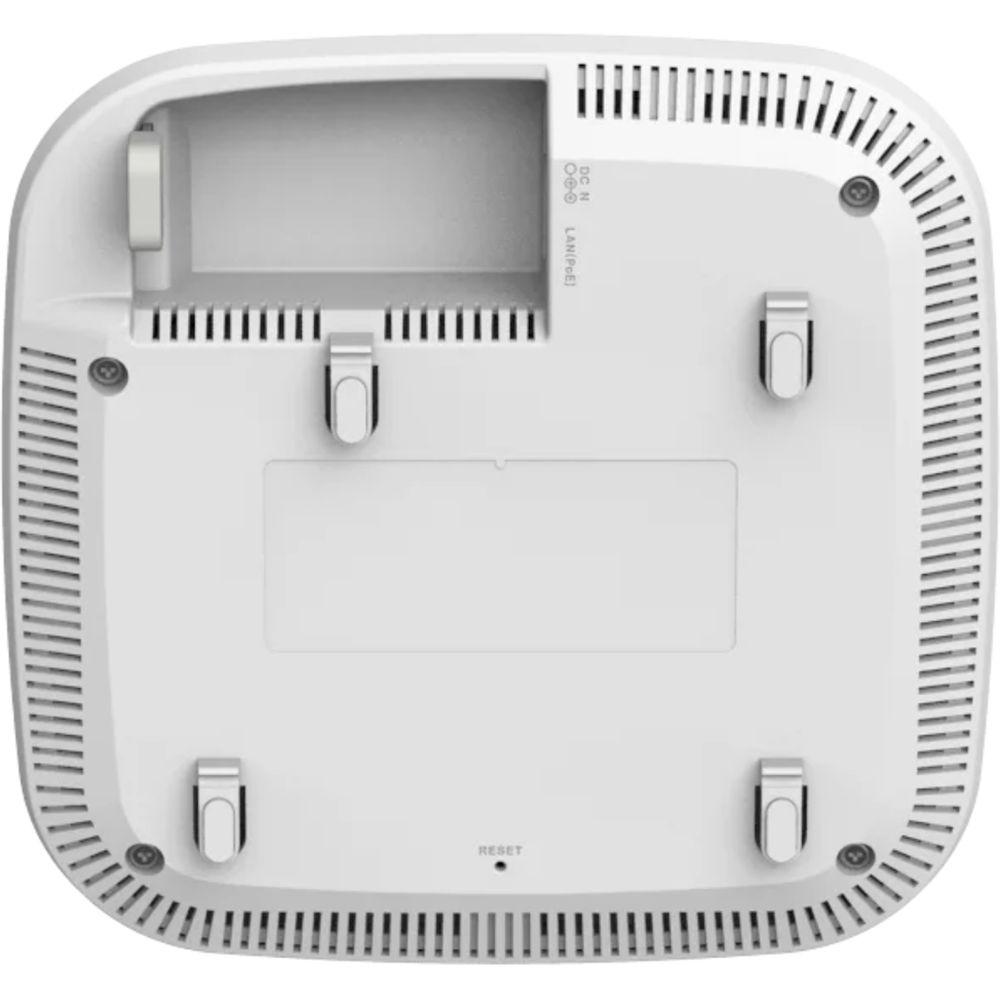

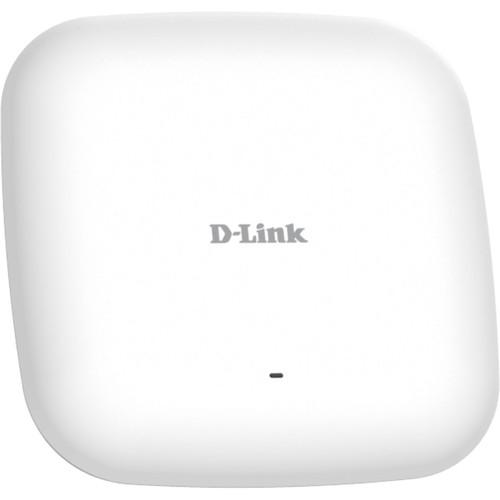

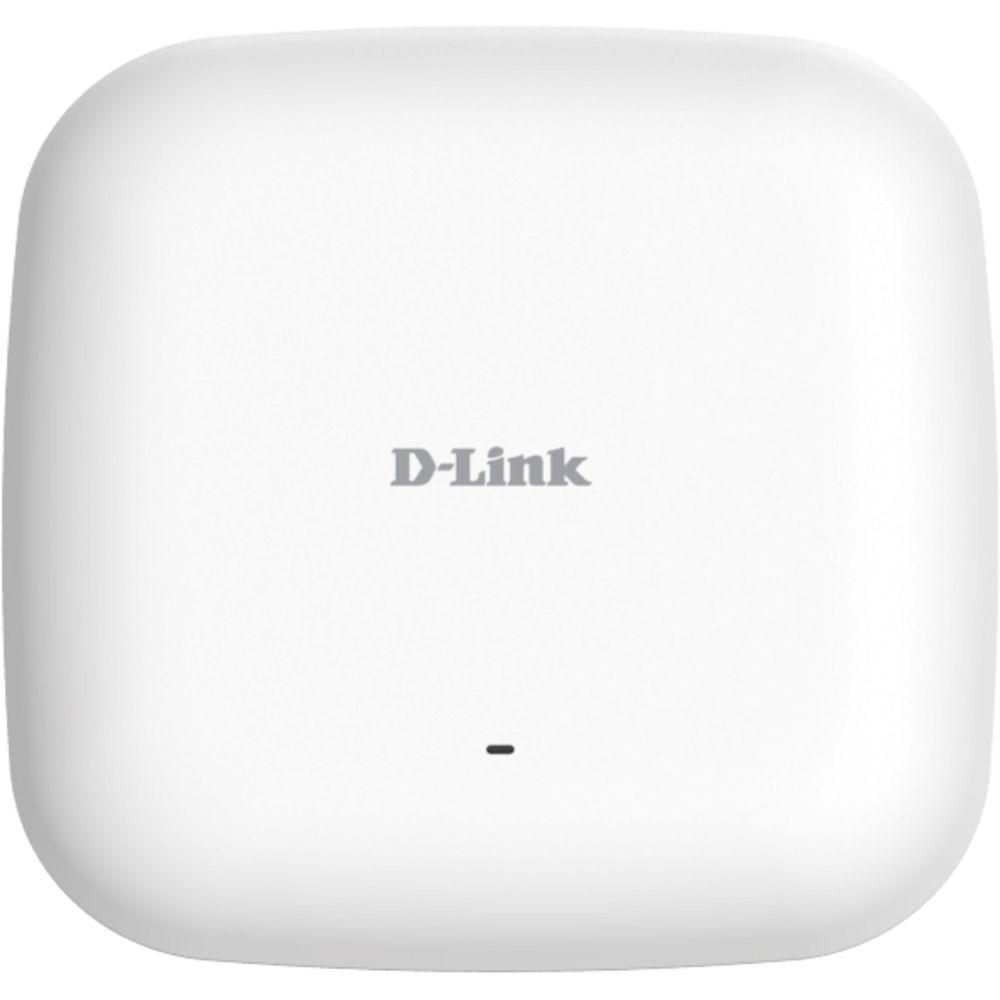

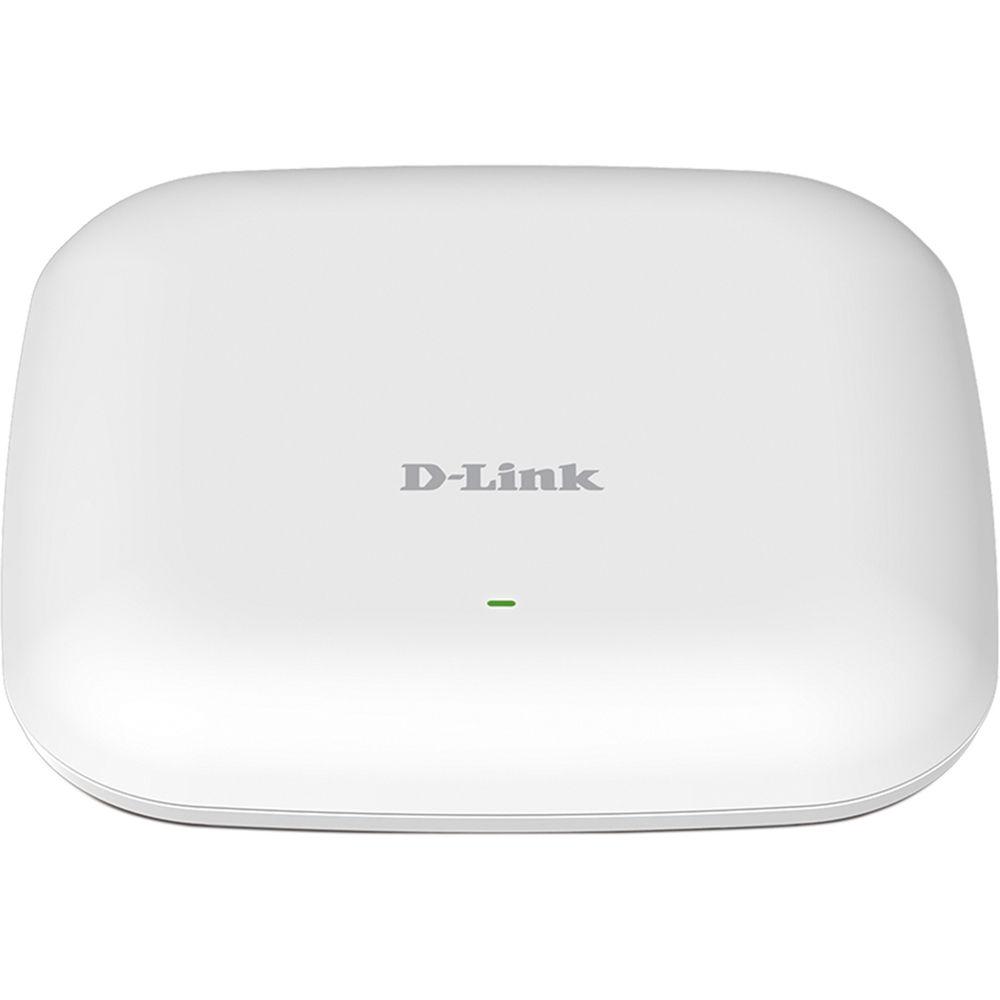

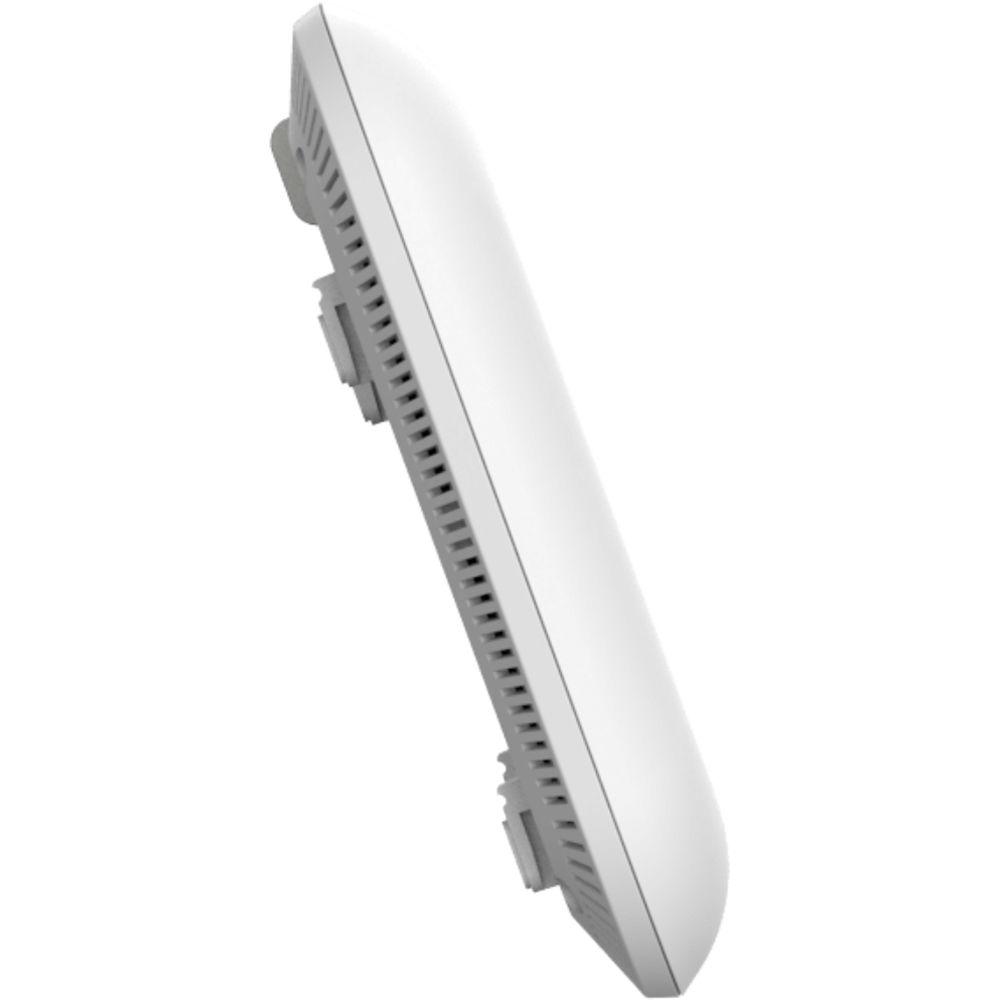

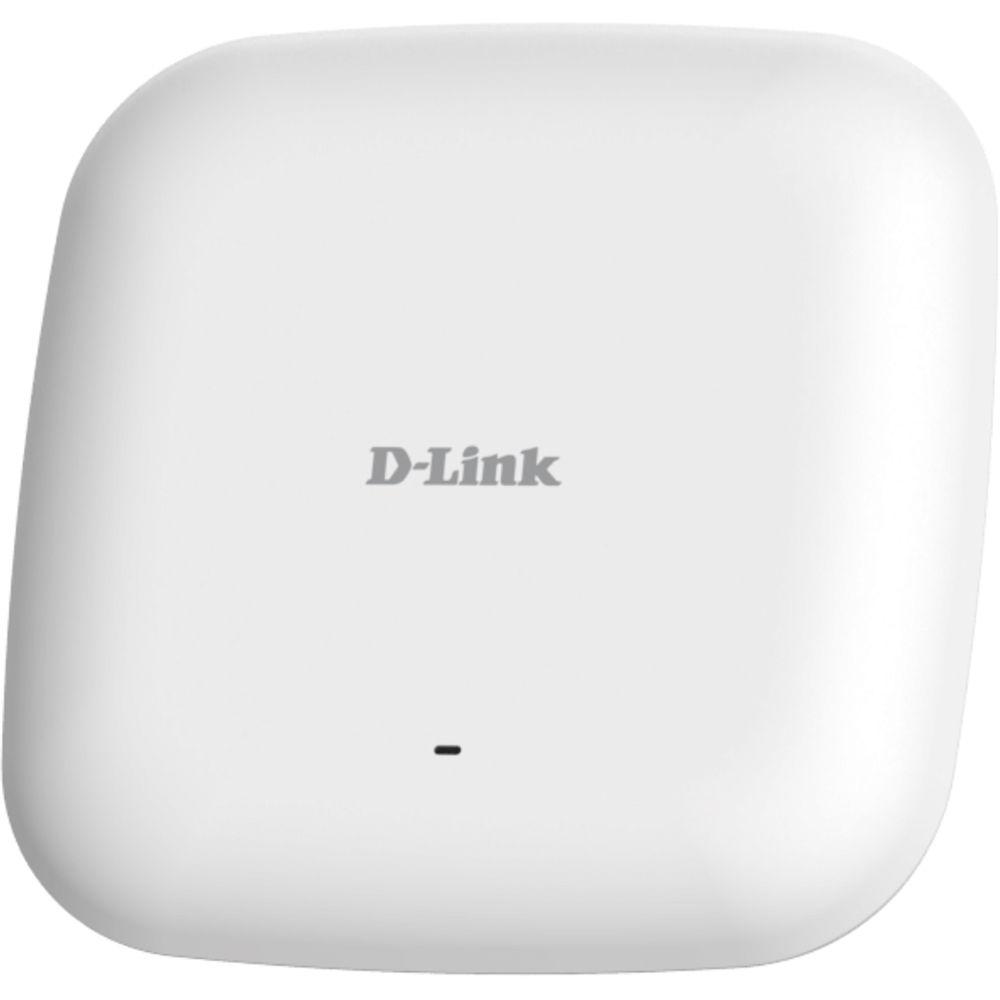

User Manual for D-Link DAP-2660 AC1200 Wireless Dual-Band Access Point with PoE Click to enlarge the picture
Contents of the user manual for the D-Link DAP-2660 AC1200 Wireless Dual-Band Access
- Product category: Wireless Access Points D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Wireless Access Points
 |
User manual for the D-Link DAP-2660 AC1200 Wireless Dual-Band Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description Add wireless connectivity to your corporate network with the DAP-2660 AC1200 Wireless Dual-Band Access Point with PoE from D-Link. Supporting the Wi-Fi 5 wireless standard, this dual-band access point is capable of up to 1,167 Mb/s total throughput, and it's equipped with a Gigabit Ethernet port with PoE (Power over Ethernet), ideal for transmitting data and powering the device over a single cable. The wall- and ceiling-mountable DAP-2660 access point supports such features as band steering, which directs wireless devices to the most appropriate Wi-Fi frequency band; airtime fairness, which helps to optimize network performance by allotting the same amount of wireless time to both high- and low-bandwidth devices; and load balancing, which limits the total number of wireless clients per access point. The access point also comes with a built-in captive portal, handy for authenticating guests, enabling billing, and displaying the network's terms-of-use notice. - Security Features
- To help maintain a secure wireless network, the DAP-2660 supports both Personal and Enterprise versions of WPA and WPA2 (802.11i), with support for RADIUS server backend and a built-in internal RADIUS server that allows users to create accounts within the device itself. The access point also includes MAC address filtering, wireless LAN segmentation, SSID broadcast disable, rogue AP detection, and wireless broadcast scheduling. The DAP-2660 includes support for up to eight VLANs per band, ideal for implementing multiple SSIDs to further segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. Support for Network Access Protection (NAP) allows network administrators to define multiple levels of network access based on individual client's need. Other security features include ARP spoofing prevention and WLAN partitioning.
- Multiple Operation Modes
- The DAP-2660 supports a variety of operational modes, including access point, wireless distribution system (WDS) with access point, WDS/bridge, and wireless client modes. Another option is Auto RF Management mode, which avoids RF interference and optimizes the output power performance.
- Network Management
- Network administrators have multiple options for managing the DAP-2660, including web (HTTP), Secure Sockets Layer (SSL), which provides for a secure connection to the Internet, Secure Shell (SSH), which provides for a secure channel between local and remote computers, and Telnet. The access point also has a power-saving wireless scheduling feature, which turns off wireless functionality when it isn't needed. Support for traffic control, SNMP, and AP array are also included.
- Additional Features
- LED indicator (can be disabled)
Low-profile housing
Security lock UPC: 790069404917 In the Box D-Link DAP-2660 AC1200 Wireless Dual-Band Access Point with PoE Power Adapter Mounting Brackets Ethernet Cable Limited Lifetime Warranty More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DAP-2660 AC1200 Wireless Dual-Band Access Point with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link Access Point DAP-2660 Specs | | | Wireless Frequency Bands | 2.4 GHz, 5 GHz | | Number of Antennas | 4 | | WLAN Mode | Wi-Fi 5 (802.11ac) | | Antenna Gain | 3 to 4 dBi | | Transmit Power | 26 dBm | | Antenna Placement | Internal | | | | Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE | | | | Guest Network Support | Yes | | Wireless Security | WEP 64, WEP 128, WPA, WPA2 | | Lock Slot | Yes | | | | Operation Modes | Access Point, Bridge, Client | | Throughput | 2.4 GHz: 300 Mb/s
5 GHz: 867 Mb/s | | | | Supported IEEE Standards | 802.11i, 802.3ab, 802.3af, 802.3u | | | | DC Input Power | 12 VDC | | Power Consumption | 11 W | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | Certifications | CE, FCC, IC, as per Manufacturer | | Dimensions | 6.7 x 6.7 x 1.1" / 17.02 x 17.02 x 2.79 cm | | Weight | 11.1 oz / 315 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.8 x 8.0 x 2.8" |
