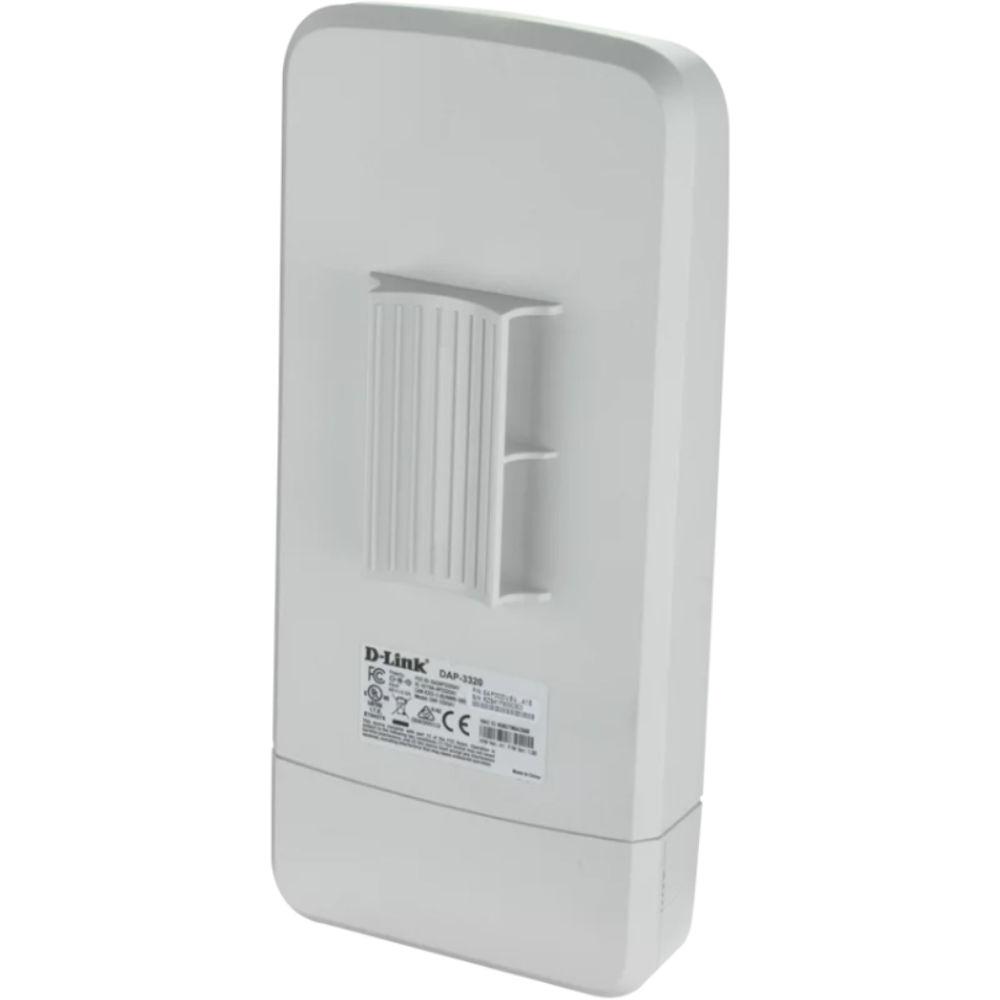

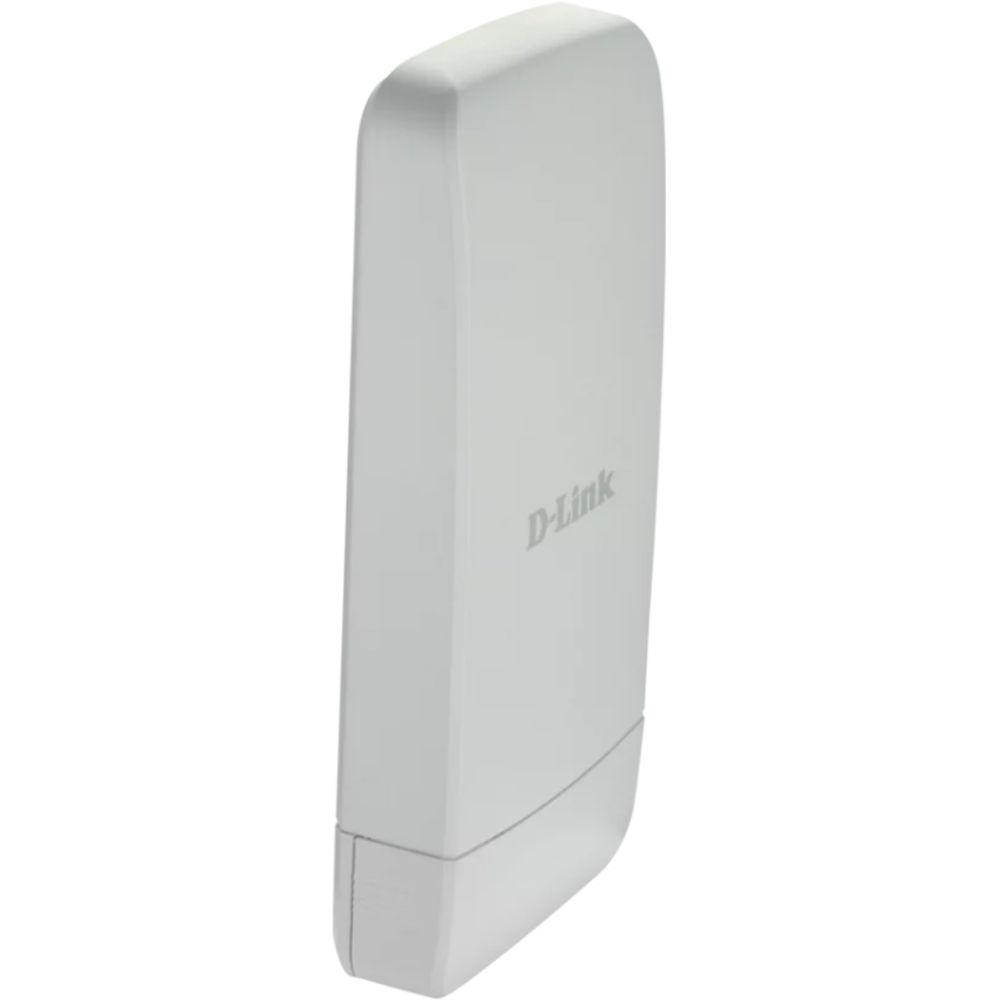

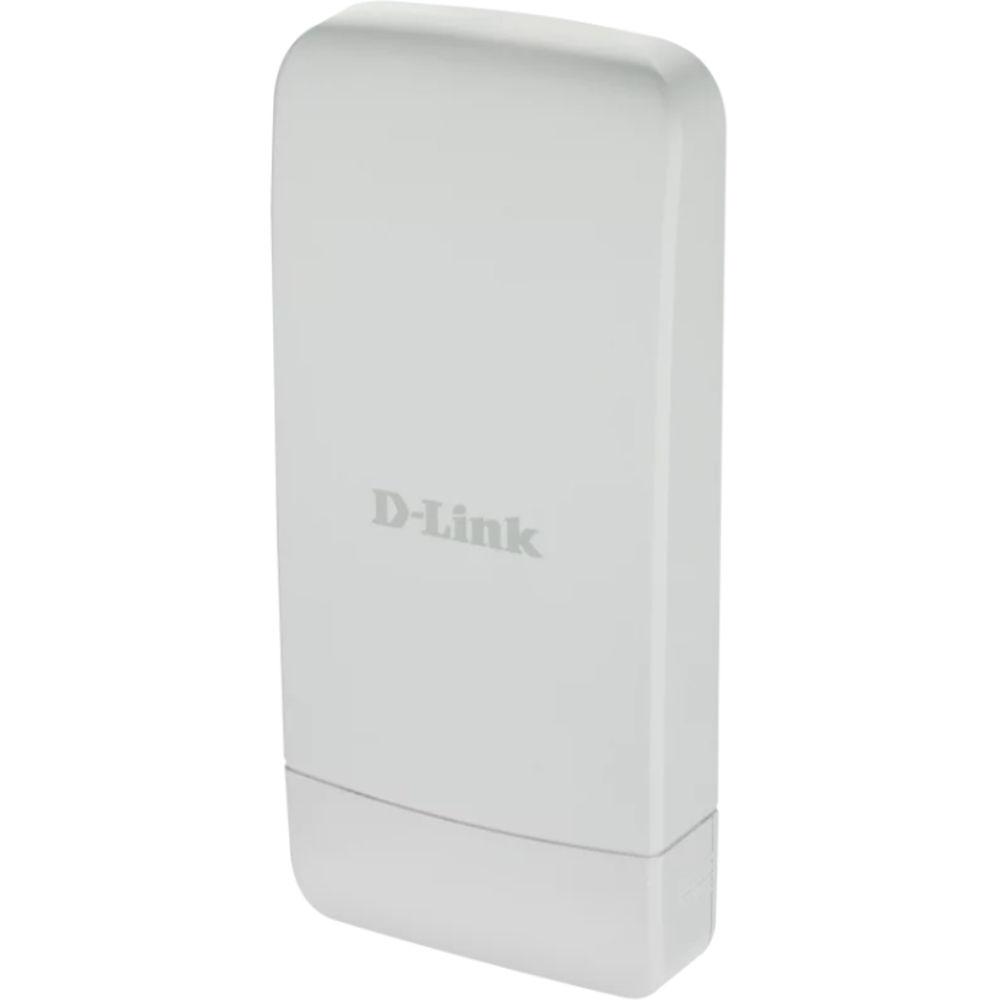

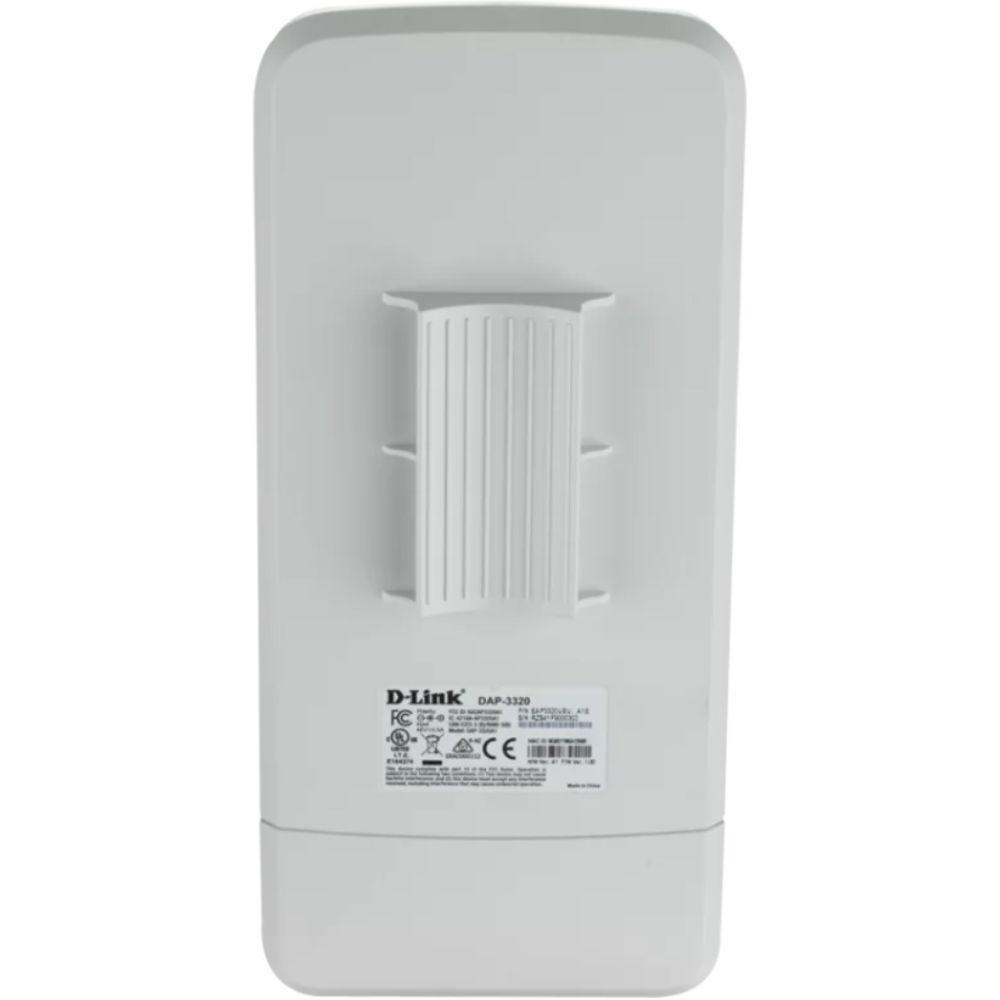

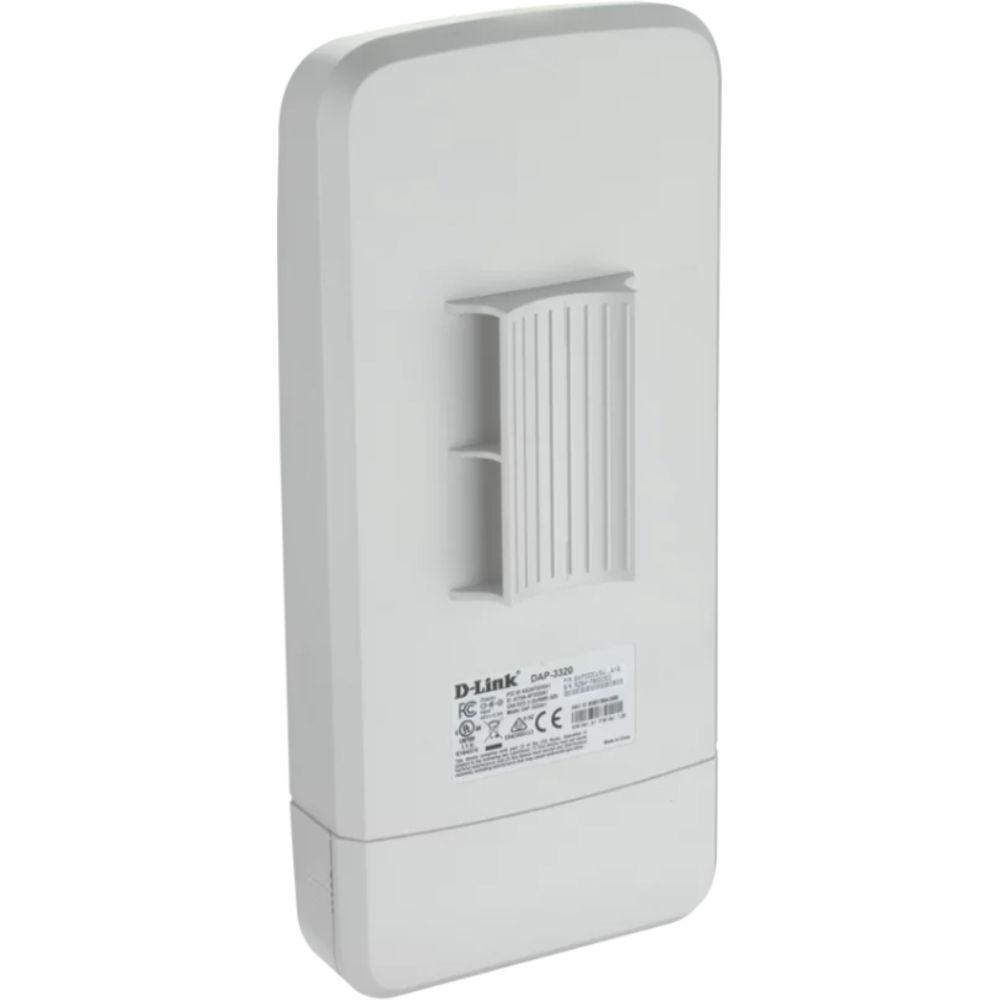

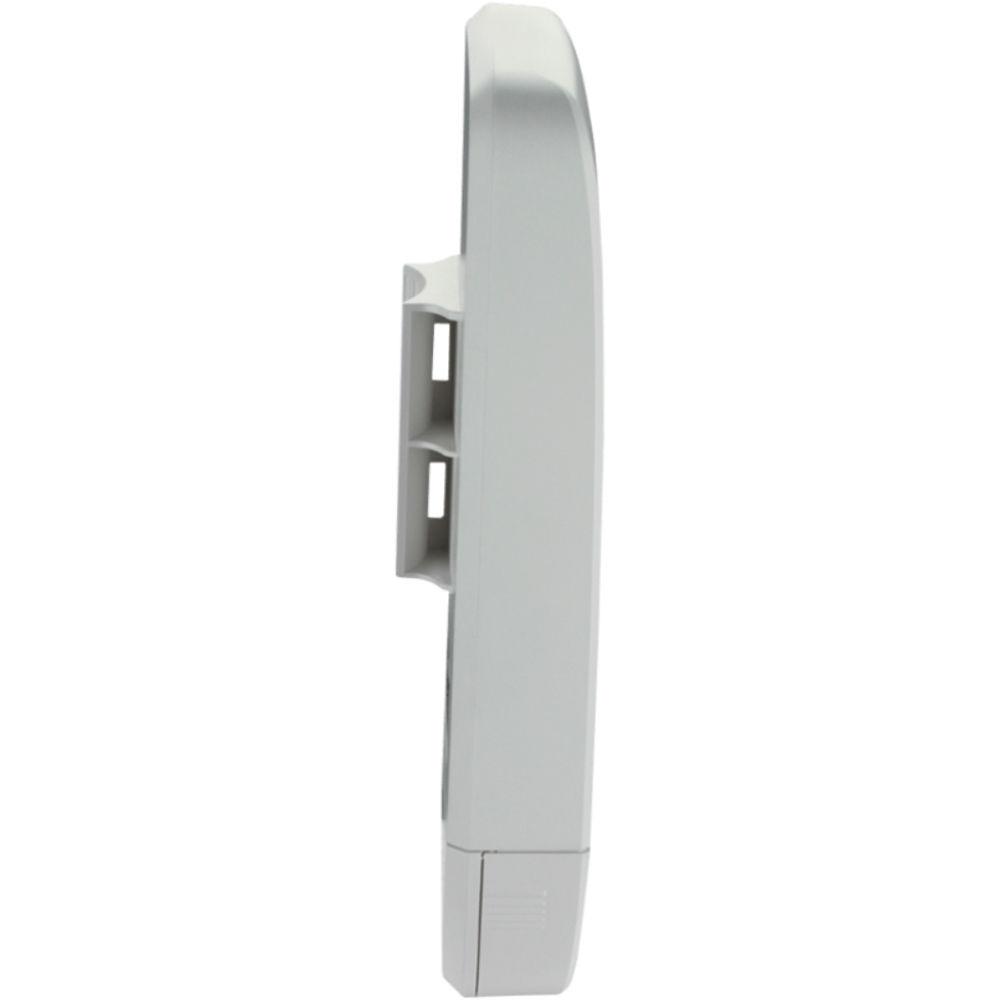

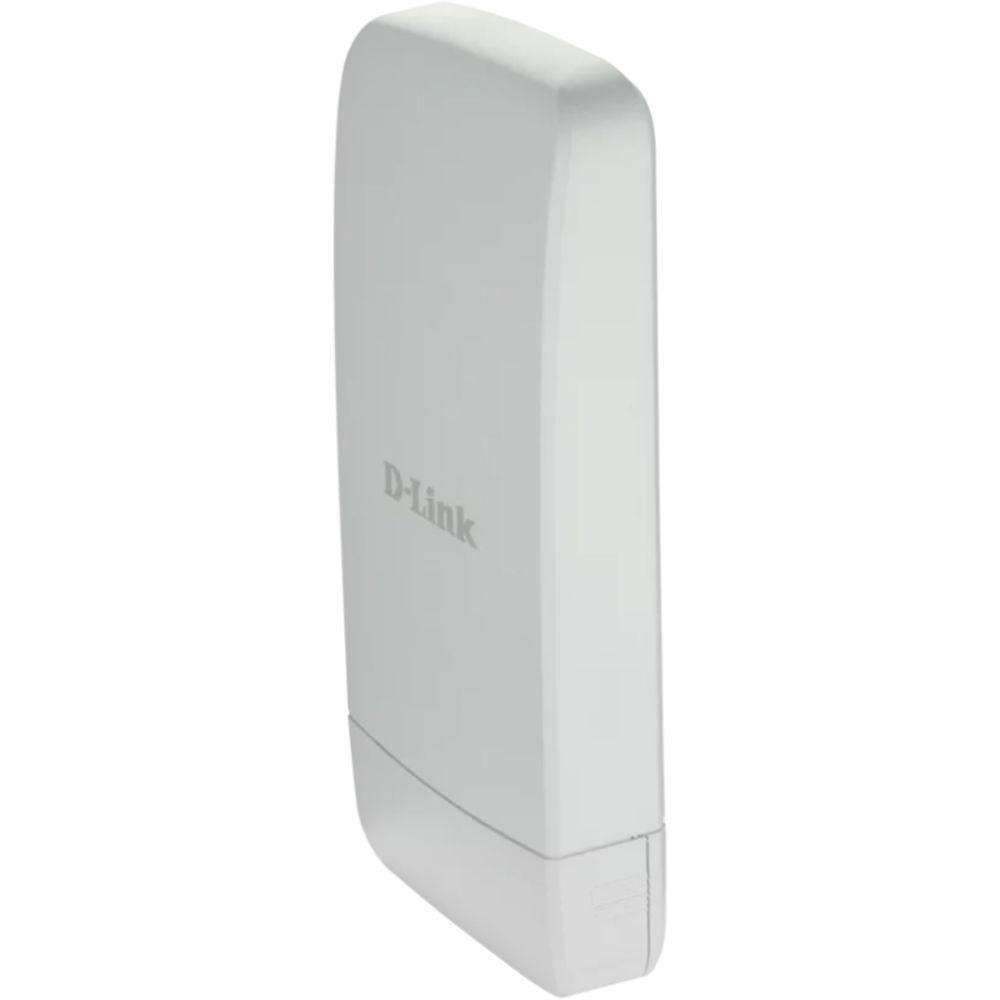

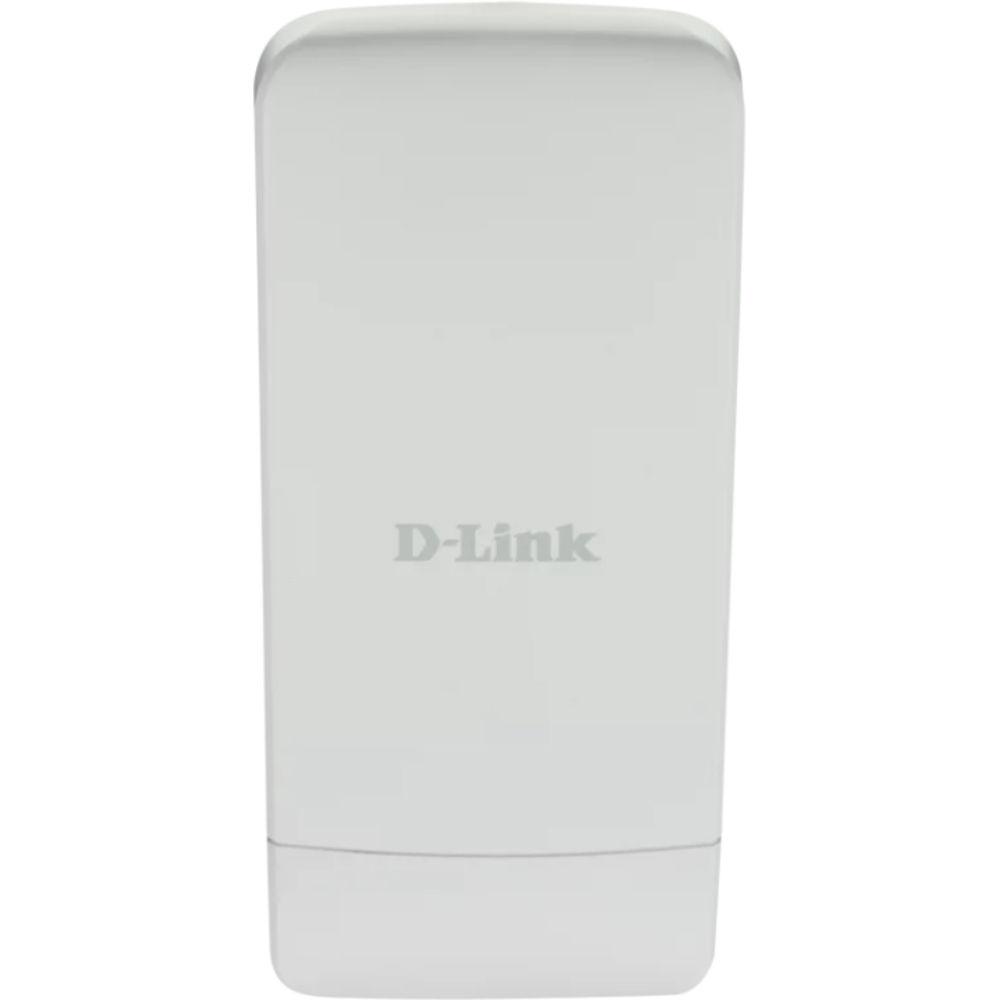

User Manual for D-Link DAP-3320 Wireless PoE Outdoor Access Point Click to enlarge the picture
Contents of the user manual for the D-Link DAP-3320 Wireless PoE Outdoor Access
- Product category: Wireless Access Points D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Wireless Access Points
 |
User manual for the D-Link DAP-3320 Wireless PoE Outdoor Access contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

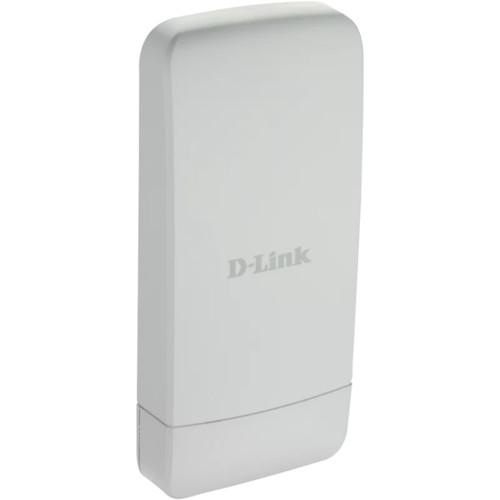

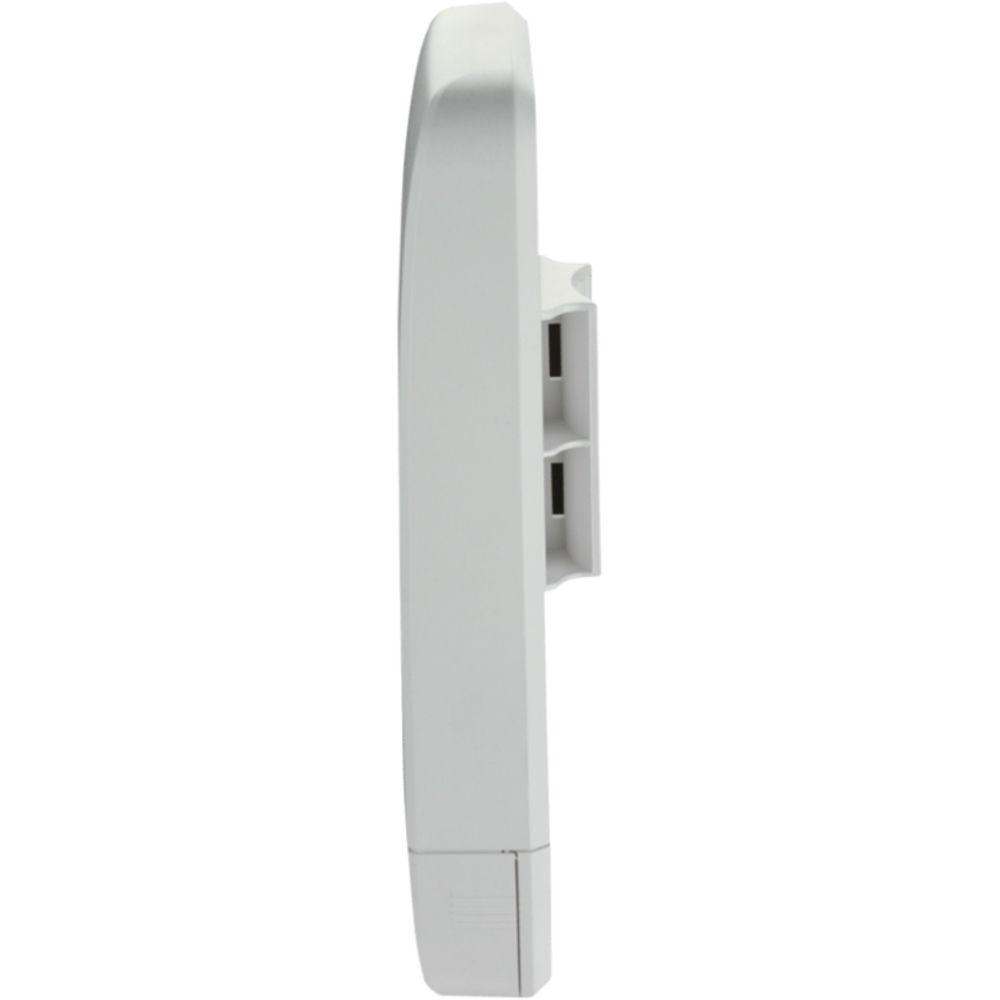

Product description The DAP-3320 Wireless PoE Outdoor Access Point from D-Link uses 2.4 GHz 802.11n wireless connectivity and features a built-in 2 dBi omni antenna for covering a wider area. It can be used for connecting additional wireless devices such as smartphones or laptops, or bringing connectivity to networks separated by short distances.As a standard wireless access point, the DAP-3320 can connect to a wide range of devices that are 802.11n/g/b compliant. In Wireless Distribution System (WDS) mode, it can expand current wireless coverage without the need for a wired backbone link. As a Wireless Client, the access point can connect a non-wireless capable device to an existing access point. In addition, the DAP-3320 unit is powered by PoE which allows for convenient installation, especially in places where a power supply is not reliable or power cables are not available or easily installed.The DAP-3320 Access Point supports up to eight SSIDs, allowing administrators to logically divide the access point into several virtual access points all within a single hardware platform. Rather than having separate networks with several access points, administrators can deploy one single access point to support more than one application, such as public Internet access and internal network control.
The access point supports 802.1Q VLAN tagging, operating with multiple SSIDs to segment traffic to enhance performance and security. It provides WLAN partitioning, a useful function for deployments such as wireless hotspots. With station-to-station partitioning enabled, security is enhanced, since wireless traffic is isolated from each other, and the possibility for data theft is reduced.The DAP-3320 Access Point supports 64/128-bit WEP encryption and WPA/WPA2 security functions as well as MAC Address Filtering to control user access, and the Disable SSID Broadcast function to limit outsiders’ access to the internal network. Network administrators have multiple options for managing the DAP-3320, including web (HTTP), Secure Socket Layer (SSL), Secure Shell (SSH), and Telnet.For advanced network management, administrators can use the D-Link Central Wi-Fi Manager to configure and manage multiple access points from a single location. In addition, the D-Link Central Wi-Fi Manager provides network administrators with the means of conducting regular maintenance checks remotely, eliminating the need for sending out personnel to physically verify proper operation. The access point has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed for saving power. Connectivity - 2.4 GHz 802.11n connectivity for increased network Capacity
- Built-in 2 dBi omni antenna
- Wireless 802.11n/g/b for compatibility with 802.11b and 802.11g devices
- Up to 300 Mb/s wireless throughput
- 10/100BaseT Ethernet port
Security - WPA/WPA2: Enterprise/Personal
Convenient Installation - 802.3af PoE enables installation in hard-to-reach locations
- Wall/pole mounting kit included
UPC: 790069419409 In the Box D-Link DAP-3320 Wireless PoE Outdoor Access Point Wall/Pole Mount Kit Grounding Wire CD-ROM Limited Lifetime Warranty More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DAP-3320 Wireless PoE Outdoor Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link Access point DAP-3320 Specs | | | Standards | IEEE 802.11 b/g/n
IEEE 802.3u
IEEE 802.3
IEEE 802.3af | | Network Protocol | Web browser interface
HTTP, Secure HTTP (HTTPS)
Telnet, Secure Shell (SSH)
D-Link Central Wi-Fi Manager
SNMP v1, v2c and v3
Traffic Control
AP Array Security | | Data Rate | Up to 300 Mb/s | | Frequency Range | 2.4 to 2.4835 GHz | | Channel Support | Not specified by the manufacturer | | Security | WPA2-Personal/Enterprise
WPA-Personal/Enterprise
WEP 64/128 bit Encryption
802.1x
SSID Broadcast Disable
MAC Address Control
Network Access Protection | | VLAN / SSID Support | Up to 8 SSIDs/VLANs | | Antenna | 2 dB internal | | Operation Modes | AP
WDS
WDS with AP
Wireless Client | | LED | Power | | Operation Distance | Not specified by the manufacturer | | Transmitted Power | 29.55 dBm (901 mW) | | Power Over Ethernet | 802.3af | | Ports | 802.11n/g/b wireless
Reset button
10/100BaseT PoE Ethernet port
Grounding wire connector | | | | System Requirements | CD-ROM drive
Computers with Windows, Macintosh, or Linux-based operating systems with CD-ROM drive
Installed Ethernet adapter
Internet Explorer 8, Chrome, Firefox, or Safari 5.1 or higher | | Power Requirements | 48 V, 0.5 A or 802.3af PoE compliant | | Temperature | Operating: -4 to 140°F / -20 to 60°C
Storage: -4 to 149°F / -20 to 65°C | | Humidity | Operating: 0% to 90% non-condensing
Storage: 5 to 95% non-condensing | | Surge Protection | 4 kV | | ESD Protection | 15 kV | | Certifications | CE
UL
Wi-Fi certified
FCC
IC | | Dimensions | 4.15 x 9 x 1.41" / 105.43 x 228.6 x 35.86 mm | | Weight | 13.07 oz / 370.4 g
With Mounting Bracket: 13.55 oz / 384.25 g |
