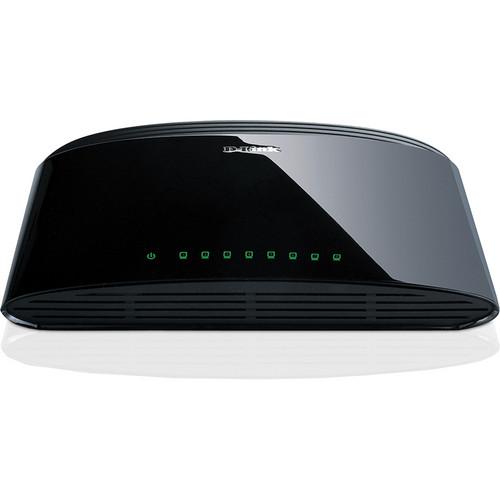

User Manual for D-Link DES-1008E 8-Port 10 100 Desktop Switch Click to enlarge the picture
Contents of the user manual for the D-Link DES-1008E 8-Port 10 100 Desktop
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
|
User manual for the D-Link DES-1008E 8-Port 10 100 Desktop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The DES-1008E 8-Port 10/100 Desktop Switch from D-Link lets you network up to 8 devices at speeds up to 200Mb/s at full-duplex capability and is compact enough to be placed virtually anywhere in your home or office. - Auto-Sensing 10/100 Ports
- The DES-1008E uses auto-sensing 10/100 Mb/s ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
- Auto MDI / MDIX Crossover
- All ports support automatic MDI / MDIX crossover, eliminating the need for extra crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router or switch using regular straight-through twisted-pair Ethernet cables.
- Flow Control For Secure Transmission
- 802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
UPC: 790069333156 In the Box D-Link DES-1008E 8-Port 10/100 Desktop Switch Power Adapter Wall Mount Kit Rubber Feet Limited Lifetime Warranty User Manual PDF 2.7mb More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DES-1008E 8-Port 10 100 Desktop Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DES-1008E Specs | Supported Protocols | Auto-MDIX/MDI | Transmission Method | Store-and-Forward | MAC Address Table Size | 2K | | Supported IEEE Standards | 802.3, 802.3 Nway, 802.3u, 802.3x | | Switching Bandwidth | 1.6 Gb/s | | RAM Buffer | 57 KB per Device | | Power Draw | 5.2 W (Active) 1.4 W (Idle) | DC Input Power | 5 VDC at 1.2 A | | Operating Temperature | 32 to 122°F / 0 to 50°C | Operating Humidity | 10 to 90% | Storage Temperature | 14 to 158°F / -10 to 70°C | Storage Humidity | 5 to 90% | | Indicator Lights | Link/Activity, Power | Dimensions | 5 x 3.3 x 1.2" / 12.5 x 8.3 x 2.9 cm | | Package Weight | 0.65 lb | Box Dimensions (LxWxH) | 9.9 x 8.3 x 2.7" |
