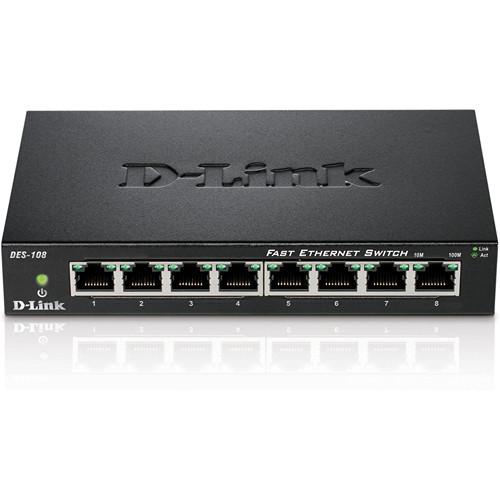

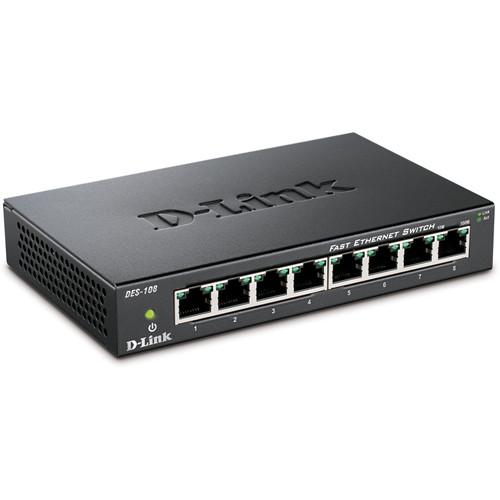

User Manual for D-Link DES-108 8-Port 10 100 Fast Ethernet Switch Click to enlarge the picture
Contents of the user manual for the D-Link DES-108 8-Port 10 100 Fast
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link DES-108 8-Port 10 100 Fast contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The DES-108 8-Port 10/100 Fast Ethernet Switch from D-Link provides eight Fast Ethernet auto-sensing ports for connecting multiple computer devices to your network. Once you've connected the switch to your network via one Fast Ethernet port, you will have seven other ports for connecting printers, scanners, storage, backup devices, and more. Support for Quality of Service (QoS) means the switch will prioritize network traffic that is sensitive to lags, such as video streaming or VoIP calls.
The switch is unmanaged and plug-and-play, so you need not install software first to use it or configure settings for it later. Plus, the diagnostic LEDs on the front panel let you know if there are any connection issues, helping you troubleshoot problems as they arise. - 8 10/100 Fast Ethernet ports
- D-Link Green Eco-Friendly Power Design
- Store-and-forward switching scheme
- Support for IEEE 802.3az Energy-Efficient Ethernet (EEE) means the switch will detect when a connected computer is shut down or when there is no Ethernet traffic. At this point, the switch will automatically power down the idle port, saving a substantial amount of power
- With 802.1P QoS Support, the switch prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls
- High reliability with rugged metal case
- Inexpensive Fast Ethernet solution for SOHO, small, and medium businesses
- Auto MDI/MDIX Crossover for all ports. This function allows each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables
- Full/half-duplex for Ethernet/Fast Ethernet speeds
UPC: 790069285974 In the Box D-Link DES-108 8-Port 10/100 Fast Ethernet Switch Limited Lifetime Warranty Quick-Start Guide PDF 1024kb More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DES-108 8-Port 10 100 Fast Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DES-108 Specs | | | Ports | 8 x 10/100 Mb/s Ethernet (RJ45) | | | | Queuing | Weighted Round Robin (WRR) | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 1,536 Bytes | | MAC Address Table Size | 1K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3 N, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 1.6 Gb/s | | Priority Queues | 2 | | | | RAM Buffer | 786 KB per Device | | | | Power Draw | 4.5 W (Active)
1.0 W (Idle) | | DC Input Power | 5 VDC at 1 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Storage Humidity | 5 to 90% | | | | Mean Time Between Failures (MTBF) | 511,323 Hours | | Dimensions | 6.3 x 4 x 1.1" / 16.2 x 10.2 x 2.8 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.8 x 8.3 x 2.7" |
