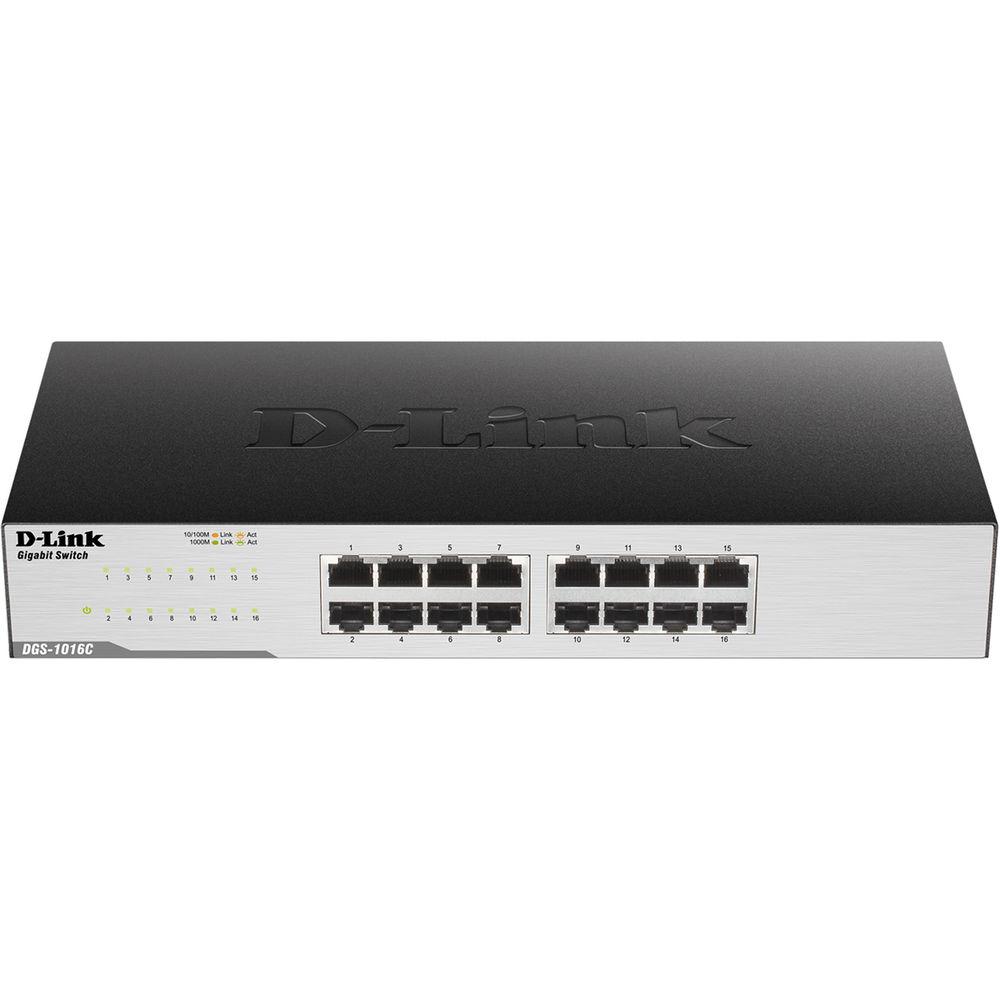

Product description Boost the switching capacity of your small business or home office with the DGS-1016C 16-Port Unmanaged Gigabit Switch from D-Link. Capable of up to 32 Gb/s of total switching bandwidth, the plug-and-play DGS-1016C supports the Energy Efficient Ethernet standard, which is designed to adjust power consumption depending on Ethernet traffic levels and cable lengths. Quality of service (QoS) helps to smooth the flow of latency-sensitive traffic, such as video streaming and VoIP calls. - Gigabit Networking
- With data transfer speeds of up to 2,000 Mb/s per port at full-duplex, the switch is ideal for quick file transfers, online gaming, and smooth streaming media. Easy-to-access Ethernet ports with LED indicators per port help you to easily distinguish link status. Auto-MDI/MDIX crossover allows for plug-and-play cable connection.
- Conserve Energy
- The DGS-1016C supports IEEE 802.3az Energy-Efficient Ethernet, which is designed to save energy and reduce heat without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and automatically reduce the power used for that port, cutting power usage. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both features work together to help save power automatically.
- Plug-and-Play Installation
- The DGS-1016C is a plug-and-play device that requires no configuration, allowing for hassle-free setup. IEEE 802.3x flow control on each port helps to minimize dropped packets when the port's receiving buffer is full, giving you a more reliable connection for your connected devices.
- Smooth Streaming
- QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
- Additional Features
- Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Back pressure at half-duplex operation
Wire-speed reception and transmission
Auto-negotiation for each port UPC: 790069419966 In the Box D-Link DGS-1016C 16-Port Unmanaged Gigabit Switch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DGS-1016C 16-Port Unmanaged Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-1016C Specs | | | Ports | 16 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI | | Queuing | Strict Priority | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9216 Bytes | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Forwarding Rate | 23.8 Mpps | | Switching Bandwidth | 32 Gb/s | | Priority Queues | 8 | | | | RAM Buffer | 512 KB per Device | | | | Power Draw | 11.7 W (Active)

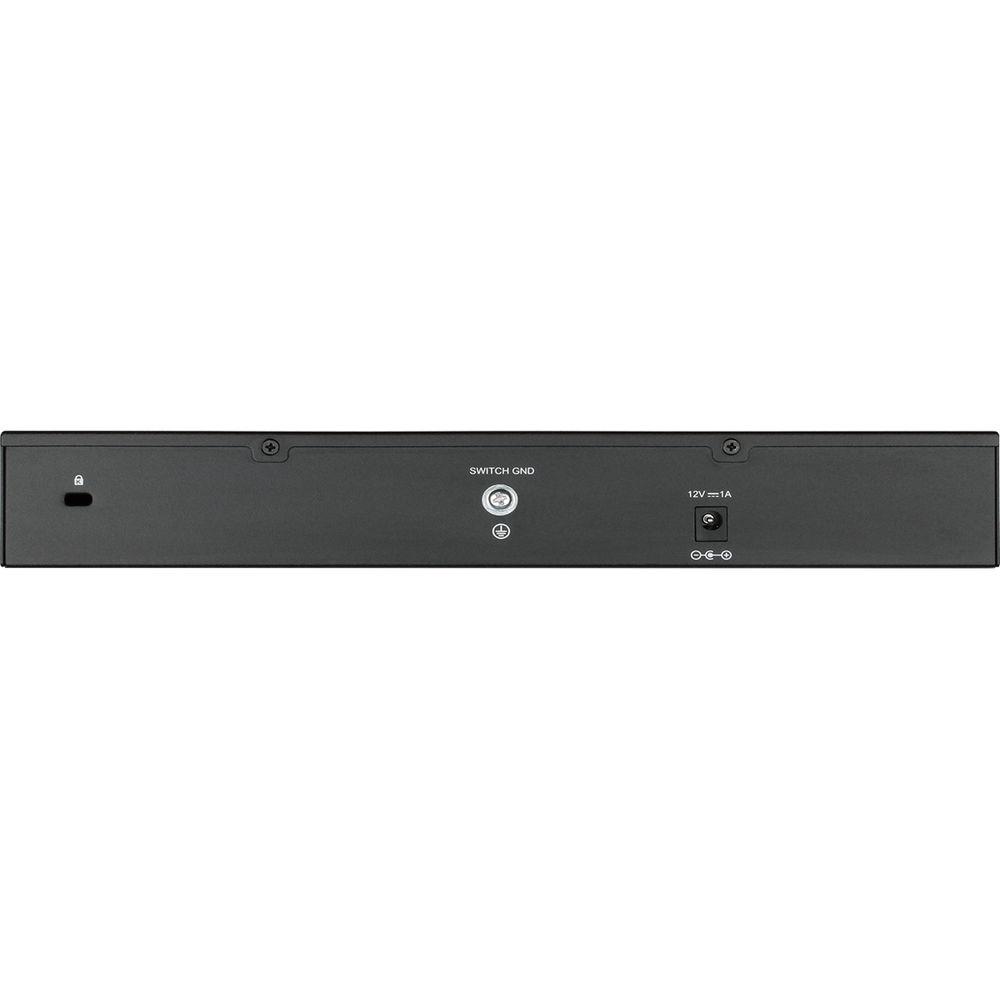

4.1 W (Standby) | | DC Input Power | 12 VDC at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -40 to 158°F / -40 to 70°C | | Storage Humidity | 5 to 95% | | Certifications | BSMI, CB, CCC, CE, FCC, UL, VCCI, as per Manufacturer | | | | Mean Time Between Failures (MTBF) | 218,743 Hours | | Indicator Lights | Link/Activity/Speed, Power | | Dimensions | 11.02 x 4.96 x 1.73" / 280 x 126 x 44 mm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 3.065 lb | | Box Dimensions (LxWxH) | 12.9 x 7.3 x 7.2" |
