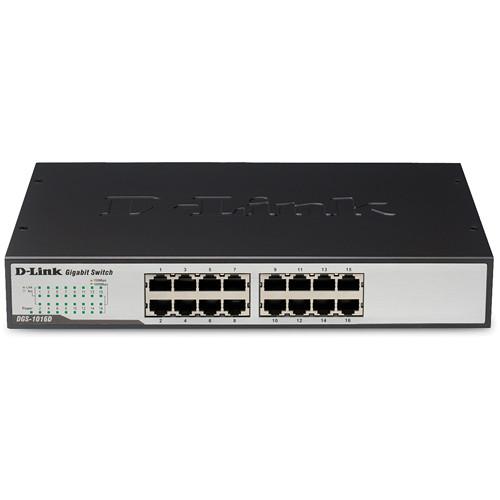

User Manual for D-Link DGS-1016D 16-Port 10 100 1000 Switch Click to enlarge the picture
Contents of the user manual for the D-Link DGS-1016D 16-Port 10 100 1000
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
|
User manual for the D-Link DGS-1016D 16-Port 10 100 1000 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description Get the blazing speed of Gigabit Ethernet with the DGS-1016D 16-Port 10/100/1000 Switch from D-Link, a 16-port 10/100/1000Mb/s switch that delivers power, performance and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the office or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network near instantly. This switch features D-Link Green eco-friendly technology, which reduces power consumption and operating costs, all in a desktop or rack mountable design. - Easy To Use
- The auto features of the DGS-1016D make installation plug-and-play and hassle-free; no configuration required! Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (10, 100 or 1000Mb/s) and intelligently adjusts for optimal performance.
The DGS-1016D also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related issues. - Power-Packed
- It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
Designed using industry standards, the DGS-1016D is compatible with virtually all 10, 100 and 1000Mb/s Ethernet devices and other vendor equipment. The 16-Port 10/100/1000 Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds. - Power Savings by Number of Connected Ports and Link Status
- Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shut down, switches often remain on and continue to consume considerable amounts of power. With D-Link Green Technology, D-Link switches can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.
- Power Savings by Cable Length
- D-Link Green verified switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.
- Overall Power Savings Per Day
- For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link Green Technology can save up to 20% power used for each system.
UPC: 790069268328 In the Box D-Link DGS-1016D 16-Port 10/100/1000 Switch Limited Lifetime Warranty More info from D-Link fvdaxzqvu Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DGS-1016D 16-Port 10 100 1000 Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-1016D Specs | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3ab, 802.3u, 802.3x | | | | Switching Bandwidth | 32 Gb/s | | Priority Queues | 4 | | Packet Buffer | 512 Kb | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Supply Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | 14 to 131°F / -10 to 55°C | | | | Indicator Lights | Link/Activity, Power, Speed | | Dimensions | 11 x 7.1 x 1.7" / 28 x 18 x 4.4 cm | | Weight | 4 lb / 2 kg | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 14.0 x 10.1 x 3.9" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
