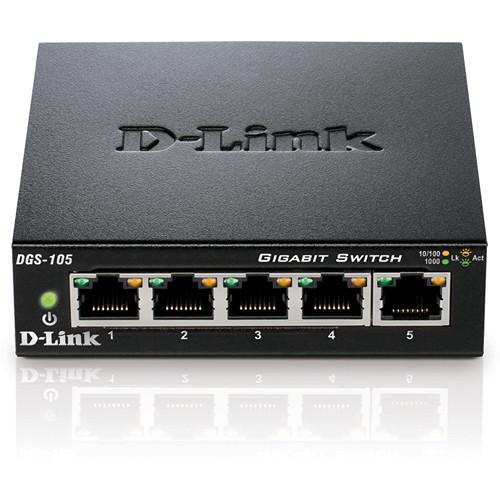

User Manual for D-Link DGS-105 5-Port Gigabit Ethernet Switch Click to enlarge the picture
Contents of the user manual for the D-Link DGS-105 5-Port Gigabit Ethernet Switch
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
|
User manual for the D-Link DGS-105 5-Port Gigabit Ethernet Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The DGS-105 5-Port Gigabit Ethernet Switch from D-Link provides five speedy Gigabit Ethernet auto-sensing ports for connecting multiple computer devices to your network. Once you've connected the switch to your network via one Gigabit Ethernet port, you will have four other ports for connecting computers, printers, scanners, storage, backup devices, and more. Support for Quality of Service (QoS) means the switch will prioritize network traffic that is sensitive to lags, such as video streaming or VoIP calls.
The switch is unmanaged and plug-and-play, so you need not install software first to use it or configure settings for it later. Plus, the diagnostic LEDs on the front panel let you know if there are any connection issues, helping you troubleshoot problems as they arise. - Built-in D-Link Green Technology
- Inexpensive Gigabit solution for small and medium business
- A total of five Gigabit Ethernet ports
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- With support for IEEE 802.1p Quality of Service, the switch organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth media streaming and VoIP calling
- The D-Link Cable Diagnostics Function enables users to be instantly aware of cable conditions through the LED display on the front-panel
- The switch can also save energy by detecting the cable length and using only as much power as necessary
- As a switch supporting IEEE 802.3az Energy-Efficient Ethernet (EEE), the switch can detect when a connected computer is shut down or when there is no Ethernet traffic, at which time the switch will automatically power down the idle port, saving a substantial amount of power
- Plug-and-play installation
UPC: 790069285981 In the Box D-Link DGS-105 5-Port Gigabit Ethernet Switch Limited Lifetime Warranty Quick-Start Guide PDF 374.6kbaraytucyvdeexcrefcfsxdzrvryawa More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DGS-105 5-Port Gigabit Ethernet Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-105 Specs | | | Ports | 5 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Queuing | Strict Priority | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9,000 Bytes | | MAC Address Table Size | 2K | | | | Security Features | Kensington Lock Support | | | | Supported IEEE Standards | 802.1p, 802.3, 802.3 N, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 10 Gb/s | | Priority Queues | 4 | | | | RAM Buffer | 128 KB per Device | | | | Power Draw | 3.1 W (Active)
1.0 W (Idle) | | DC Input Power | 5 VDC at 1 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 130°F / 0 to 50°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -14 to 158°F / -26 to 70°C | | Storage Humidity | 5 to 90% | | | | Mean Time Between Failures (MTBF) | 1,688,338 Hours | | Dimensions | 3.9 x 3.8 x 1.1" / 10 x 9.8 x 2.7 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.8" |
