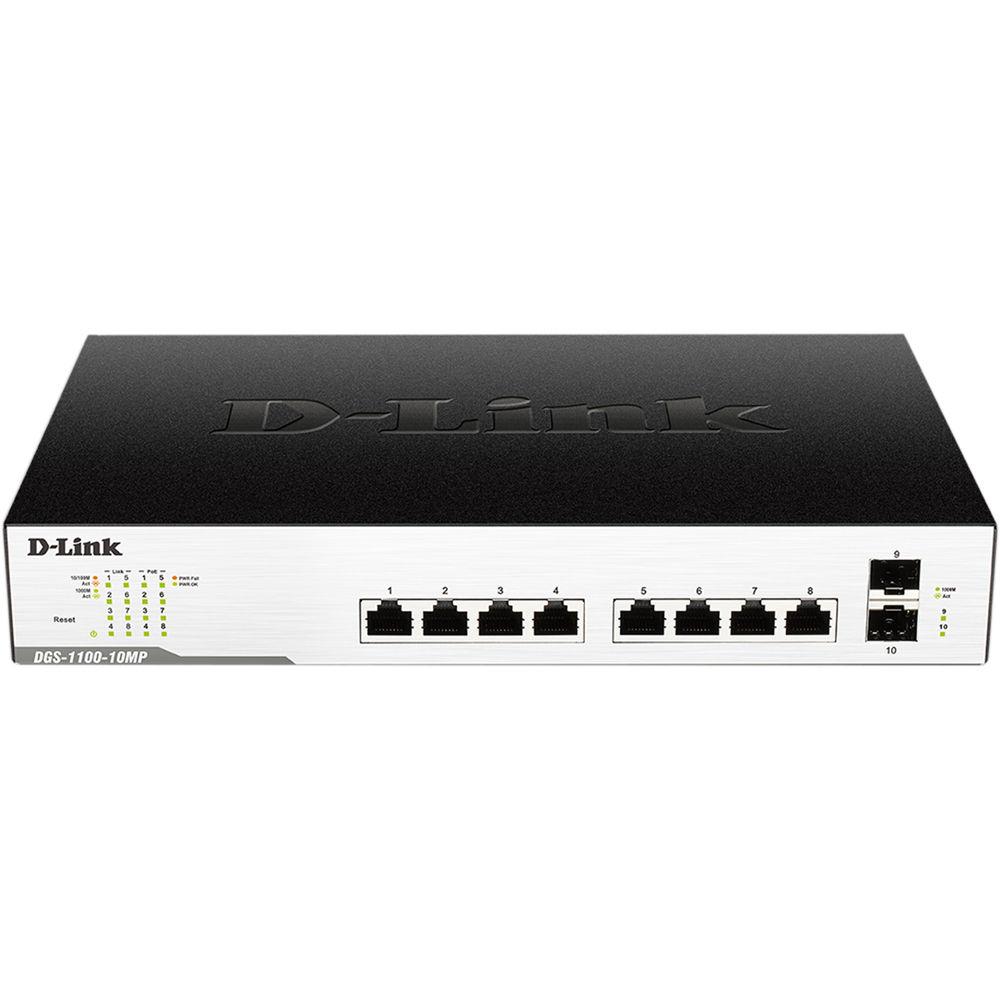

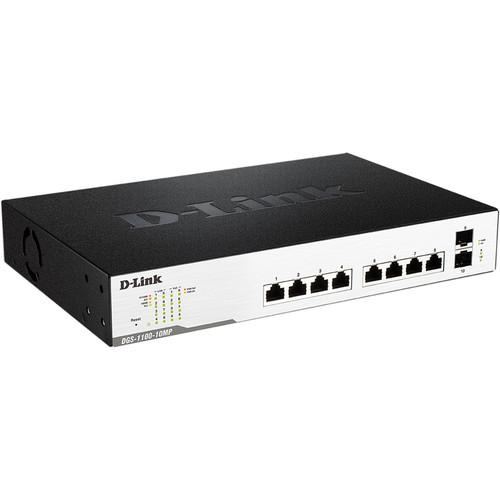

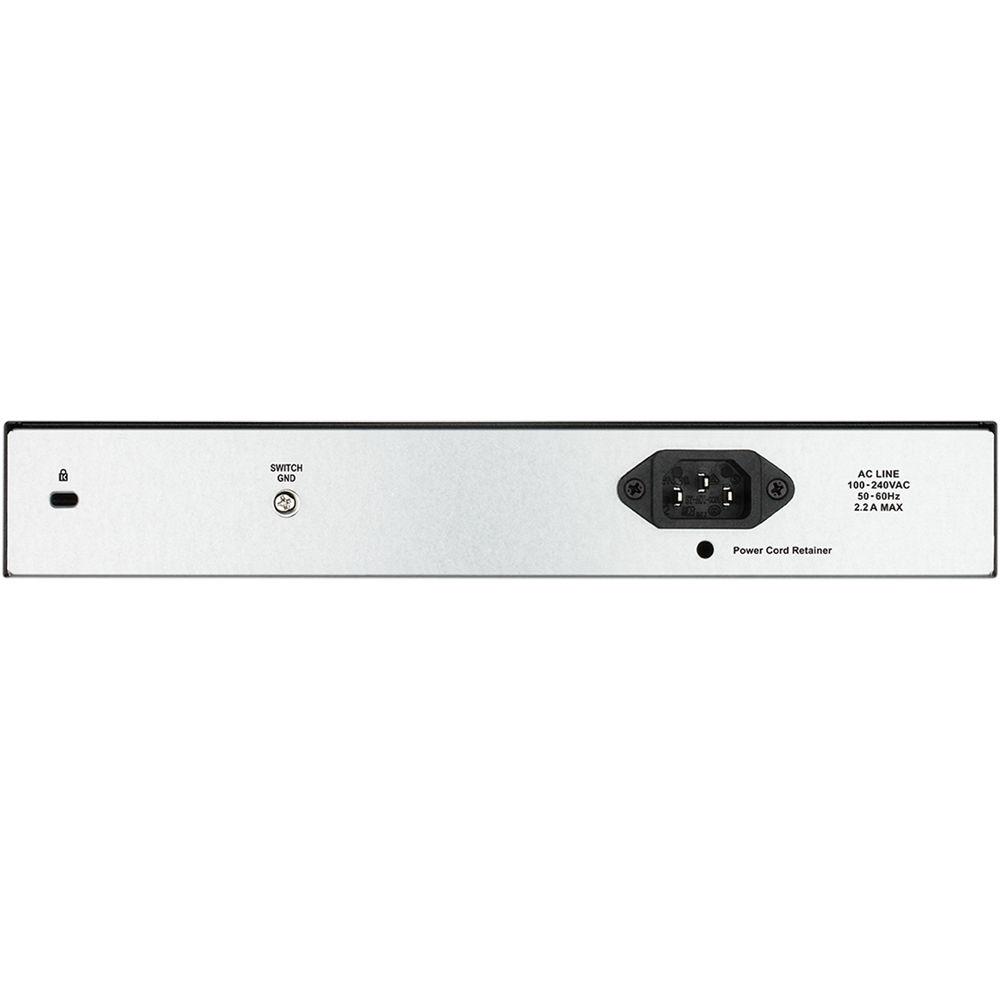

User Manual for D-Link DGS-1100 Series 10-Port Smart Managed Rackmount PoE Switch with Gigabit SFP Ports Click to enlarge the picture
Contents of the user manual for the D-Link DGS-1100 Series 10-Port Smart Managed
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link DGS-1100 Series 10-Port Smart Managed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The D-Link DGS-1100 Series 10-Port Smart Managed Rackmount PoE+ Switch with Gigabit SFP Ports is a suitable solution for small and medium-sized businesses, as well as enterprise deployments, such as in branch offices that require simple network management. The 10-port switch with PoE (Power-over-Ethernet) and SFP support comes in a metal enclosure that supports either desktop or rack mounting. Compliant with IEEE802.3az Energy Efficient Ethernet, this switch consumes less power during idle periods. It also implements the D-Link Green Technology that helps in automatically saving energy. The switch monitors link status of every port and reduces power consumption when a port is without a link. It also supports Layer 2 features such as IGMP Snooping, Bandwidth control, Surveillance VLAN, and Voice VLAN. - D-Link Green / Power Saving Performance
- Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), this switch consumes less energy by cutting down on power consumption when port utilization is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium-sized businesses stay within their budgets. The DGS-1100 Series switch also features D-Link Green Technology that helps save energy automatically. The switches monitor the link status of every port and will drastically reduce power consumption on the interface when there is no link or no network traffic detected.
- Easy Deployment
- This DGS-1100 Series switch supports an intuitive client-based utility (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same Layer 2 network segment. This allows extensive switch configuration and basic administration of discovered devices, including password changes and firmware upgrades. The web-based management interface provides a user-friendly way for network administrators to manage the switch down to the port level. The interface can be accessed from a web browser, allowing the switch to be controlled from any network-connected PC.
- Surveillance VLAN and Bandwidth Control
- The DGS-1100 Series switch supports Surveillance VLAN for IP surveillance deployment. Surveillance VLAN gives video traffic high priority and an individual VLAN, guaranteeing the quality of surveillance traffic through a single DGS-1100 switch, thus sparing businesses the added expenses required for dedicated hardware and facilities. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require larger bandwidth or might have high priority.
- PoE Support
- The DGS-1100-10MP complies with the 802.3af PoE standard and has a 130W power budget. Using the switch's management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
- Advanced Features
- The DGS-1100 Series switch is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
- Easy Troubleshooting
- The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
- Surveillance Features
- A unique Surveillance Mode user interface for the DGS-1100-10MP makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch set up, allowing the user to choose the interface that best suits their requirements. In Surveillance Mode, a network topology map shows which devices are connected to which ports, and ONVIF device support allows the switch to auto detect both D-Link and 3rd party IP cameras and Network Video Recorders (NVRs). The UI also shows details on PoE power utilization, device IP addresses, and provides easy access to troubleshooting tools built into the interface.
The DGS-1100-10MP also feature 6 kV surge protection on all PoE ports to help prevent damage to the network caused by power surges and lightning strikes. Faulty electrical cabling, faulty network cabling, and lightning strikes can cause damage to the switch and connected devices. Built-in surge protection of up to 6 kV can limit the damage to the switch from both indoor and outdoor devices and network connections. This increases network reliability, reduces repair costs and removes the need for replacement hardware in the event of an electrical surge or lightning strike. - VLAN Features
- • Port-based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
- Supports 128 static VLAN groups
- Max. 4094 VIDs - L2 Features
- • Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
- IGMP v1/v2 Snooping
- IGMPv3 Awareness
- Supports 64 Groups
• Link Aggregation
- 5 groups, 8 ports per group
• G.8032 ERPS
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring
- One-to-One
- Many-to-One
• Statistics
- Tx Ok
- Tx Error
- Rx Ok
- Rx Error
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
• SNTP
• L2 Multicast
- MLD Snooping - QoS
- • 802.1p Quality of Service
• 8 queues per port
• Queue Handling
- Strict
- Weighted Round Robin (WRR)
- Deficit Round Robin (DRR) • Bandwidth Control
- Port Based
- Ingress: minimum granularity 8 Kbps
- Egress: minimum granularity 64 Kbps - Security
- • D-Link Safeguard
• Traffic Segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS Attack Prevention
• SSL
• Static MAC Address
- Max. 64 entries - Management
- • Web-Based GUI (Supports IPv4/IPv6)
• D-Link Network Assistant Utility - Green Technology
- • Power Saving by:
- Link Status
- LED Shut-off
- Port Shut-off
- System hibernation
• Energy Efficient Ethernet (IEEE 802.3az)
• RoHS Compliant - RFC Standard List
- • RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 1213 MIB II
• RFC1493 Bridge MIB
• RFC1907 SNMPv2 MIB
• RFC1215 MIB Traps Convention
• RFC2233 Interface Group MIB
• RFC2665 Ether-like MIB
• 802.1p MIB RFC4363
• ZoneDefense MIB
• Private MIB
• RFC 951 BootP Client
• RFC 1542 BootP/DHCP client
• RFC 2236 IGMP Snooping UPC: 790069420115 In the Box D-Link DGS-1100 Series 10-Port Smart Managed Rackmount PoE+ Switch with Gigabit SFP Ports Limited Lifetime Warranty More info from D-Link verxrqywdydreuyywbbvbwaa Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DGS-1100 Series 10-Port Smart Managed Rackmount PoE Switch with Gigabit SFP Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-1100-10MP Specs | Hardware Version | Rev. B | | Ports | 8 x 10/100/1000 ports
2 x Gigabit SFP ports | | Port Standards & Functions | • IEEE 802.3, 802.3u, 802.3ab compliant
• IEEE 802.3x Flow Control
• IEEE 802.3az EEE compliant
• IEEE 802.3af/at compliant
• Half/Full-duplex operation at 10/100 Mb/s
• Full-duplex operation at 1000 Mb/s
• Auto-Negotiation for each port
• Auto MDI/MDIX | | Switching Capacity | 20 Gb/s | | Maximum Forwarding Rate | 14.88 Mpps | | MAC Address Table Size | 16K entries | | Packet Buffer | 1.5 MB | | Flash Memory | 16 MB | | Power Input | 100 to 240 VAC, 50 to 60 Hz
Internal universal power supply | | Power Consumption | Maximum: 141.4 W (PoE on), 11.8 W (PoE off)
Standby: 10.4 W | | Fan Quantity | One fan | | Acoustics | 45.4 dB(A) | | Heat Dissipation | 570.5 BTU/hr | | Temperature & Humidity | Operating Temperature: 23 to 122°F / -5 to 50°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Humidity: 0 to 95% non-condensing | | Certifications | FCC Class A, CE Class A, VCCI Class A, BSMI, CCC | | Safety | cUL, CE LVD, CB, BSMI, CCC | | MTBF | 291,575 Hours | | PoE Standard | 802.3af/at | | PoE Capable Ports | Ports 1-8 | | PoE Power Budget | 130 W | | Dimensions | 11.0 x 7.1 x 1.7" / 28.0 x 18.0 x 4.4 cm | | Weight | 3.7 lb / 1.7 kg |
