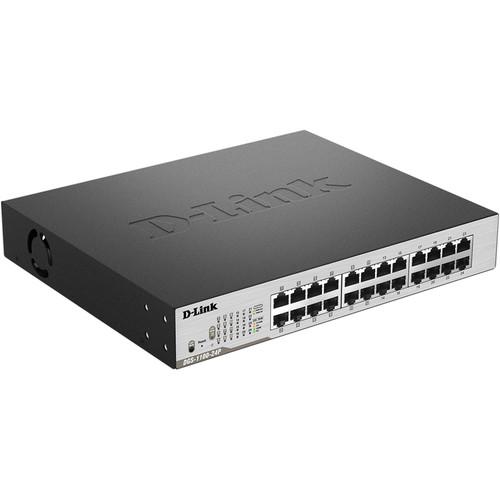

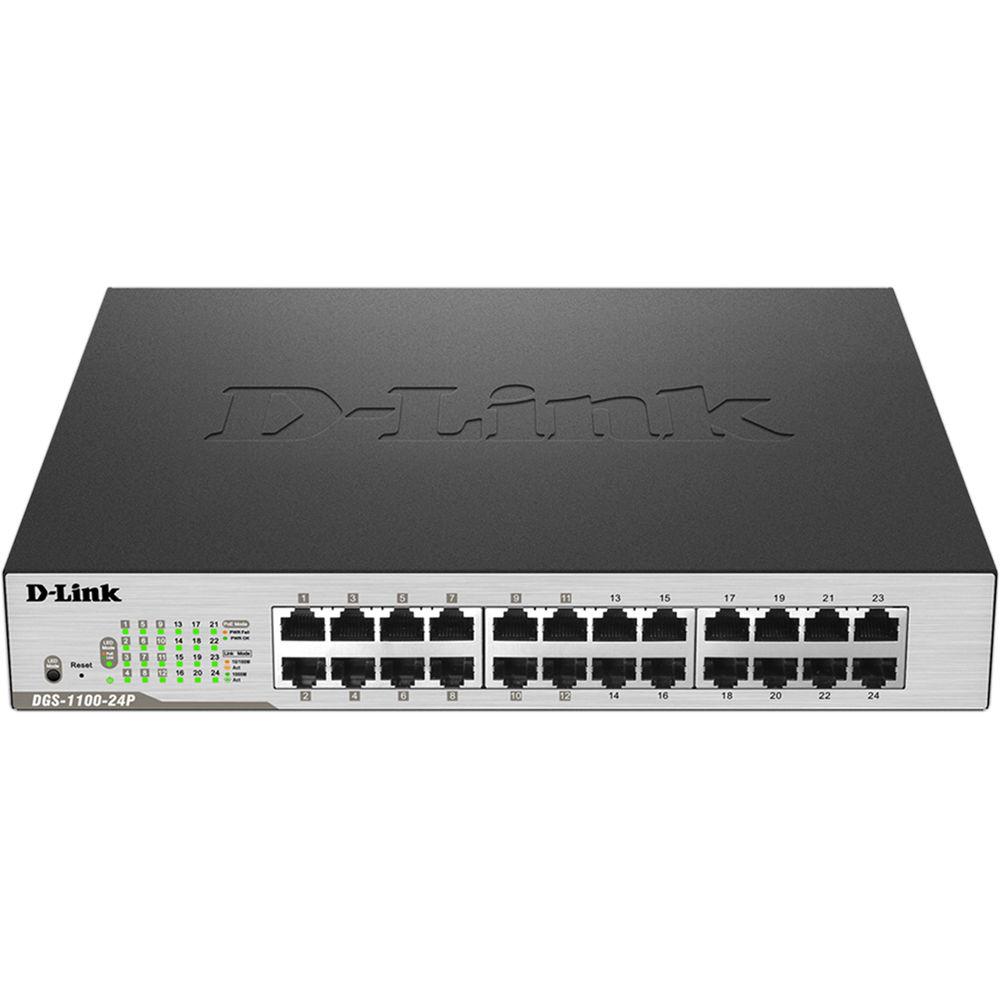

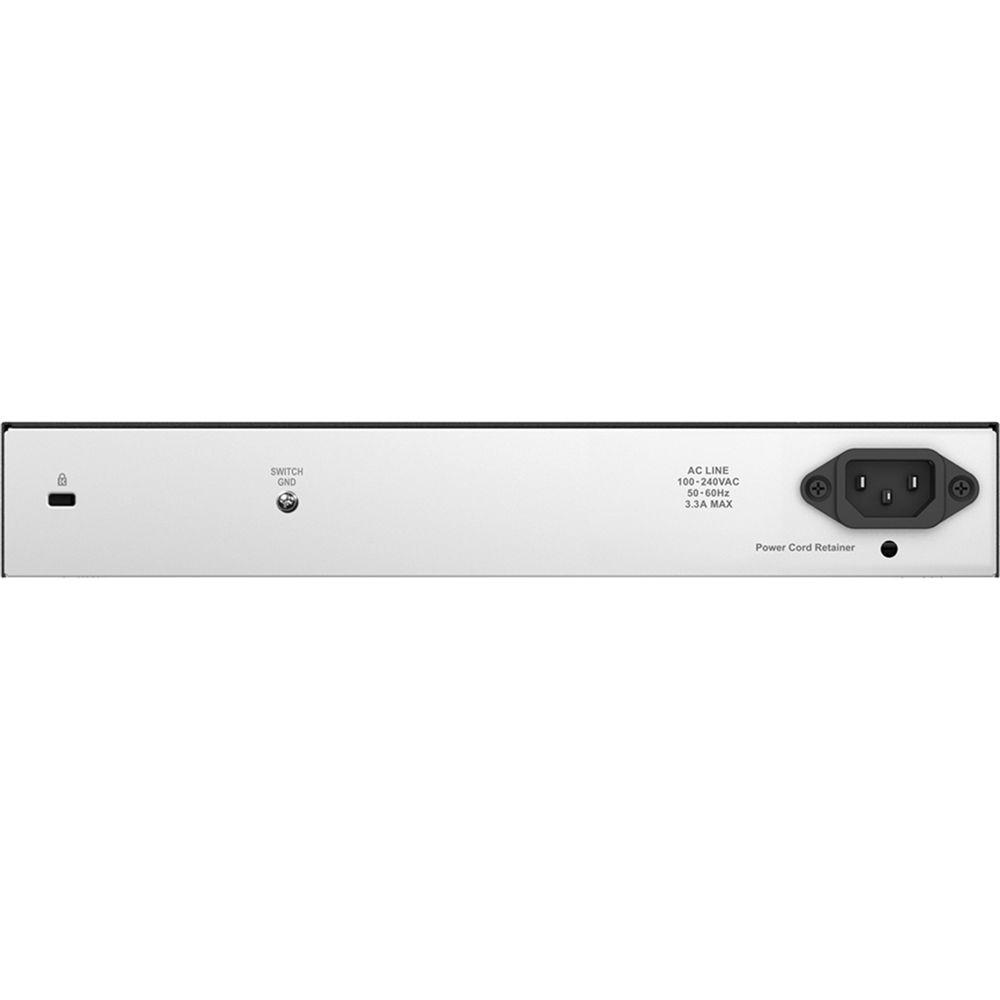

Product description The D-Link DGS-1100 Series 24-Port Smart Managed Rackmount Switch with PoE+ Ports is a suitable solution for small and medium businesses, for enterprise deployments, or in branch offices that require simple network management. The 24-port switch with PoE (Power-over-Ethernet) comes in a metal enclosure that supports either desktop or rack mounting. Compliant with IEEE 802.3az Energy-Efficient Ethernet, this switch consumes less power during idle periods. It also implements D-Link Green Technology to save energy. The switch monitors the link status of every port and reduces power consumption when a port is without a link. It also supports Layer 2 features such as IGMP Snooping, Bandwidth control, Surveillance VLAN, and Voice VLAN. - VLAN Features
- • Port-Based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• Asymmetric VLAN
• VLAN Group
- Supports 128 static VLAN groups
- Max. 4094 VIDs - L2 Features
- • Flow Control
- 802.3x flow control
- HOL blocking prevention
• Jumbo Frames up to 9216 Bytes
• IGMP Snooping
- IGMP v1/v2 snooping
- IGMPv3 awareness
- Supports 64 Groups
• Link Aggregation
- 12 groups, 8 ports per group
• Loopback Detection
• Cable Diagnostics
• LLDP
• Port Mirroring
- One-to-one
- Many-to-one
• Statistics
- Tx Ok
- Tx error
- Rx Ok
- Rx error
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
• SNTP
• L2 Multicast - QoS
- • 802.1p Quality of Service
• 4 queues per port
• Queue Handling
- Strict
- Weighted Round Robin (WRR)
• Bandwidth Control
- Port-based
- Ingress: minimum granularity 8 kb/s
- Egress: minimum granularity 64 kb/s - Security
- • D-Link Safeguard
• Traffic Segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS Attack Prevention
• SSL
• Static MAC Address
- Max. 64 entries - Management
- • Web-Based GUI (Supports IPv4/IPv6)
• D-Link Network Assistant Utility - Green Technology
- • Power Saving Via:
- Link status
- LED shut-off
- Port shut-off
- System hibernation
• Energy Efficient Ethernet (IEEE 802.3az)
• RoHS Compliant - RFC Standard List
- • RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 1213 MIB II
• RFC1493 Bridge MIB
• RFC1907 SNMPv2 MIB
• RFC1215 MIB Traps Convention
• RFC2233 Interface Group MIB
• RFC2665 Ether-like MIB
• 802.1p MIB RFC4363
• ZoneDefense MIB
• Private MIB
• RFC 951 BootP Client
• RFC 1542 BootP/DHCP client
• RFC 2236 IGMP Snooping UPC: 790069410369 In the Box D-Link DGS-1100 Series 24-Port Smart Managed Rackmount Switch with PoE+ Ports Limited Lifetime Warranty More info from D-Link vwrucxftseef Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DGS-1100 Series 24-Port Smart Managed Rackmount Switch with PoE Ports in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-1100-24P Specs | Hardware Version | Rev. B | | Ports | 24 x 10/100/1000 ports | | Port Standards & Functions | • IEEE 802.3, 802.3u, 802.3ab compliant
• IEEE 802.3x flow control
• IEEE 802.3az EEE compliant
• IEEE 802.3af/at compliant
• Half/full-duplex operation at 10/100 Mb/s
• Full-duplex operation at 1000 Mb/s
• Auto-negotiation for each port
• Auto MDI/MDIX | | Switching Capacity | 48 Gb/s | | Maximum Forwarding Rate | 35.71 Mpps | | MAC Address Table Size | 8000 entries | | Packet Buffer | 512 kB | | Flash Memory | 8 MB | | Power Input | 100 to 240 VAC, 50 to 60 Hz
Internal universal power supply | | Power Consumption | Maximum: 128.3 W (PoE on), 21.2 W (PoE off)
Standby: 13 W | | Fan Quantity | One fan | | Acoustics | 41.9 dB(A) rev B1
27.6 dB(A) rev B2 | | Heat Dissipation | 437.9 BTU/hr | | Temperature & Humidity | Operating Temperature: 23 to 122°F / -5 to 50°C
Storage Temperature: -40 to 158°F / -40 to 70°C
Humidity: 0 to 95% non-condensing | | Certifications | FCC Class A, CE Class A, VCCI Class A, BSMI, CCC | | Safety | cUL, CE LVD, CB, BSMI, CCC | | MTBF | 563,292 Hours | | PoE Standard | 802.3af/at | | PoE Capable Ports | Ports 1-12 | | PoE Power Budget | 100 W | | Dimensions | 11.0 x 9.1 x 1.7" / 28.0 x 23.0 x 4.4 cm | | Weight | 4.7 lb / 2.2 kg | | | | Package Weight | 6.8 lb | | Box Dimensions (LxWxH) | 14.3 x 14.2 x 4.2" |
