Product description

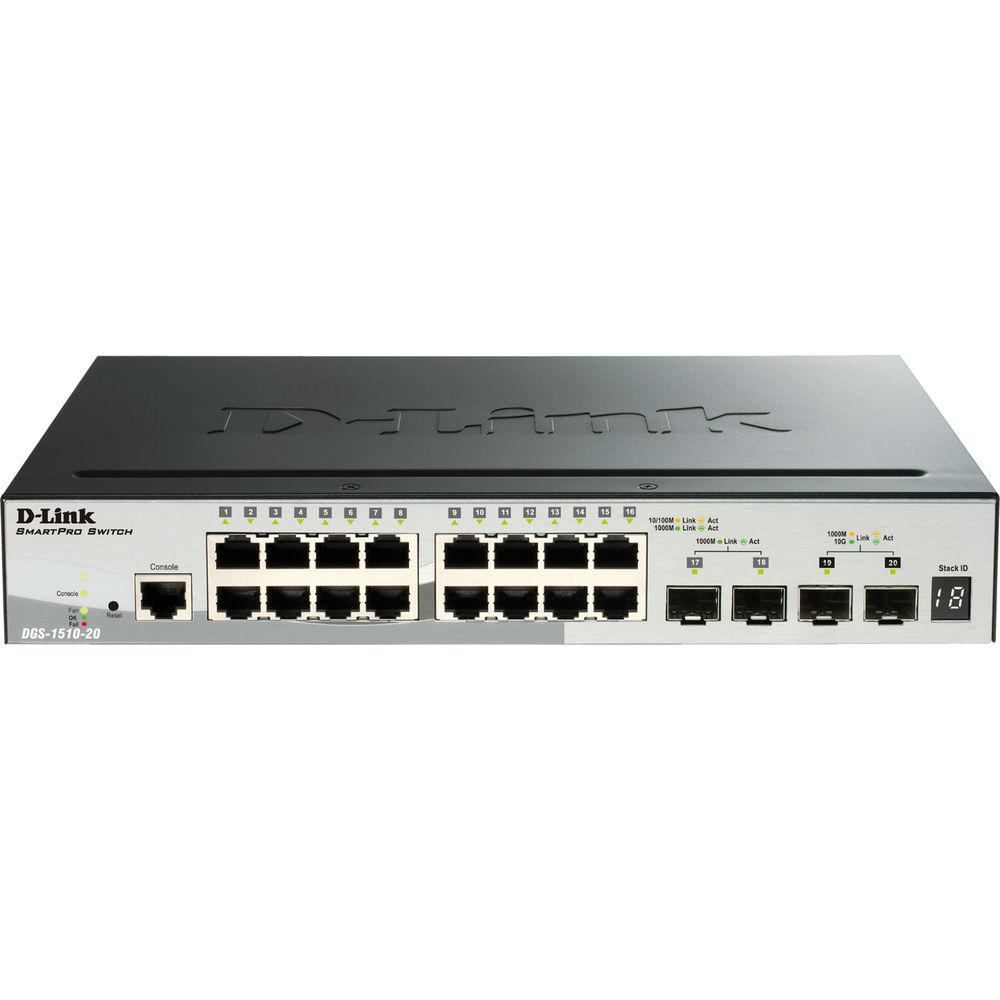

10G SFP+ Stacking/Uplink Ports
• The last two SFP+ ports of the DGS-1510 Series switch allow users to create a physical stack of up to 6 units in a fault-tolerant ring or linear topology using Direct Attach Copper (DAC) cables or any compatible SFP+ transceiver. This creates a total of 288 Gigabit ports, ensuring high bandwidth while staying cost efficient.

  Meanwhile, the remaining uplink ports can be used for other functions, such as connecting to a larger network. Network administrators can also easily configure and manage any of the DGS-1510 Series Smart Managed switches in a single stack. With 20 Gb/s full-duplex capabilities, the DGS-1510 Series offers 10G connectivity to core networks and servers while maintaining fast data transfer rates.

Layer 3 Traffic Management
• The DGS-1510 Series provides static routing, allowing network segmentation into workgroups that communicate between VLANs and increase application performance. With these capabilities, network administrators can reduce the load on core devices, creating a scalable and efficient network.

Extensive Layer 2 Features
• This DGS-1510 Series switch is equipped with a complete lineup of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree Protocol, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection automatically detects and shuts down loops created by a specific port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can determine cable quality and quickly discover sections of cabling that need to be replaced.

Traffic Classification and Quality of Service
• This DGS-1510 Series Switch supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are suited for VoIP and video surveillance deployments. Auto Surveillance VLAN consolidates data and surveillance video transmissions through a single DGS-1510 Series Smart Managed switch, saving businesses the cost of maintaining expensive dedicated hardware and infrastructure. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data by giving ASV traffic priority over other packets.

Keep Your Network Secure
• D-Link's innovative Safeguard Engine helps to protect the DGS-1510 Series against traffic flooding caused by malicious attacks. The DGS-1510 Series supports both MAC and web-based access control. This gives network administrators multiple authentication options, reducing deployment times and removing the need for client software. The DGS-1510 Series supports IEEE 802.1X port-based authentication, allowing network users to be authenticated through external RADIUS servers. The Address Resolution Protocol (ARP) Spoofing Prevention feature helps to prevent attacks that may allow an intruder to intercept users' traffic while the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

IPv6 Ready
• The DGS-1510 Series is IPv6 ready and supports various IPv6 functions such as MLD Snooping, IPv6 security features, and IPv6 Quality of Service (QoS), ensuring seamless integration with next generation networks. The DGS-1510 Series also supports IPv4/v6 dual stack functionality, which allows the switches to act as a bridge between IPv4 and IPv6 networks.

Versatile Management
• The DGS-1510 Series supports a variety of management options. A web-based Graphical User Interface (GUI) enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time. Two modes of GUI are supported - Standard Mode and Surveillance Mode. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs.

  The DGS-1510 Series also comes with the D-Link Network Assistant (DNA) utility that enables administrators to remotely control their network down to the port level. The DNA utility allows customers to discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access. This allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades.

  The DGS-1510 Series also features an extensive Command Line Interface (CLI) and SNMP support, allowing centralized management of a large number of devices. Out-of-band management of the switches is also available via a designated console port. This provides access to devices in the event there is a loss of connectivity or the switch is overloaded with bulk or malicious traffic.

Energy Efficient
• DGS-1510 Series switches are capable of conserving power without sacrificing operational performance or functionality thanks to D-Link Green 3.0 technology. Using the IEEE 802.3az Energy Efficient Ethernet (EEE) standard, the switches will automatically decrease power usage when traffic is low. For environments that do not fully support this standard, these switches offer advanced power-saving settings including port shut-off, LED shut-off, and system hibernation based on custom profiles. These profiles can also be applied to the PoE switches so that there is no unnecessary power consumption during off hours.
