User Manual for D-Link DHP-P701AV Powerline AV2 2000 Passthrough Starter Kit Click to enlarge the picture
Contents of the user manual for the D-Link DHP-P701AV Powerline AV2 2000 Passthrough
- Product category: Powerline Networking D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Powerline Networking
 |
User manual for the D-Link DHP-P701AV Powerline AV2 2000 Passthrough contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

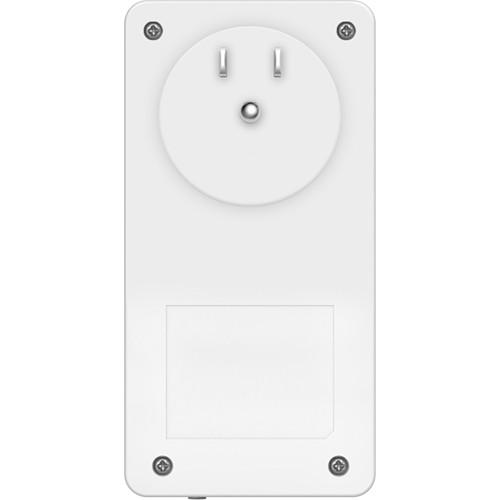

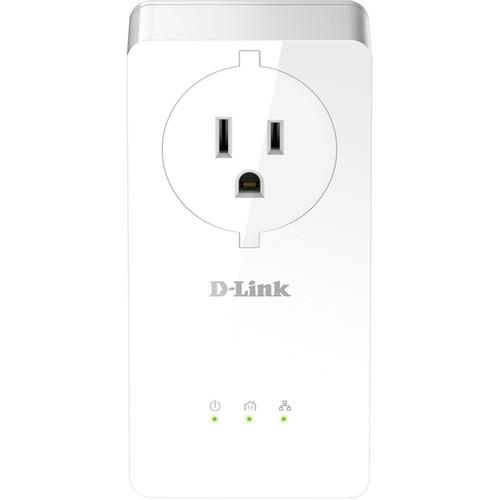

Product description With a dedicated passthrough power socket, the DHP-P701AV Powerline AV2 2000 Passthrough Starter Kit from D-Link offers enhanced powerline networking capabilities supporting data transfer rates of up to 2000 Mbps.

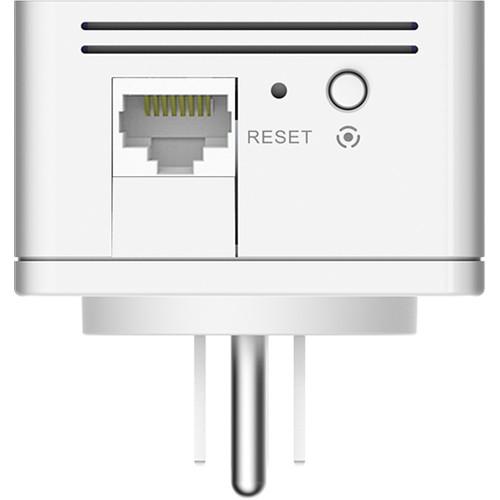

These plug-and-play adapters can be set up with the push of the Simple Connect button. Once configured, the adapters offer enhanced network connectivity making it easy to plug in Ethernet-enabled devices such as smart TVs, computers, game consoles, and more directly to the network. In addition to the single Gigabit Ethernet port found on each adapter, they also feature dedicated status LED indicators, and support 128-bit AES data encryption to keep your connection secure. - PowerLine AV2 2000 Gigabit Passthrough Starter Kit
- Using your existing electrical wiring, create a high-speed home network at speeds of up to 2000 Mbps. Connect several different devices including routers, computers, access points, gaming consoles, and Smart TV's, bringing Gigabit Ethernet network connectivity to hard-to-reach areas in your home.

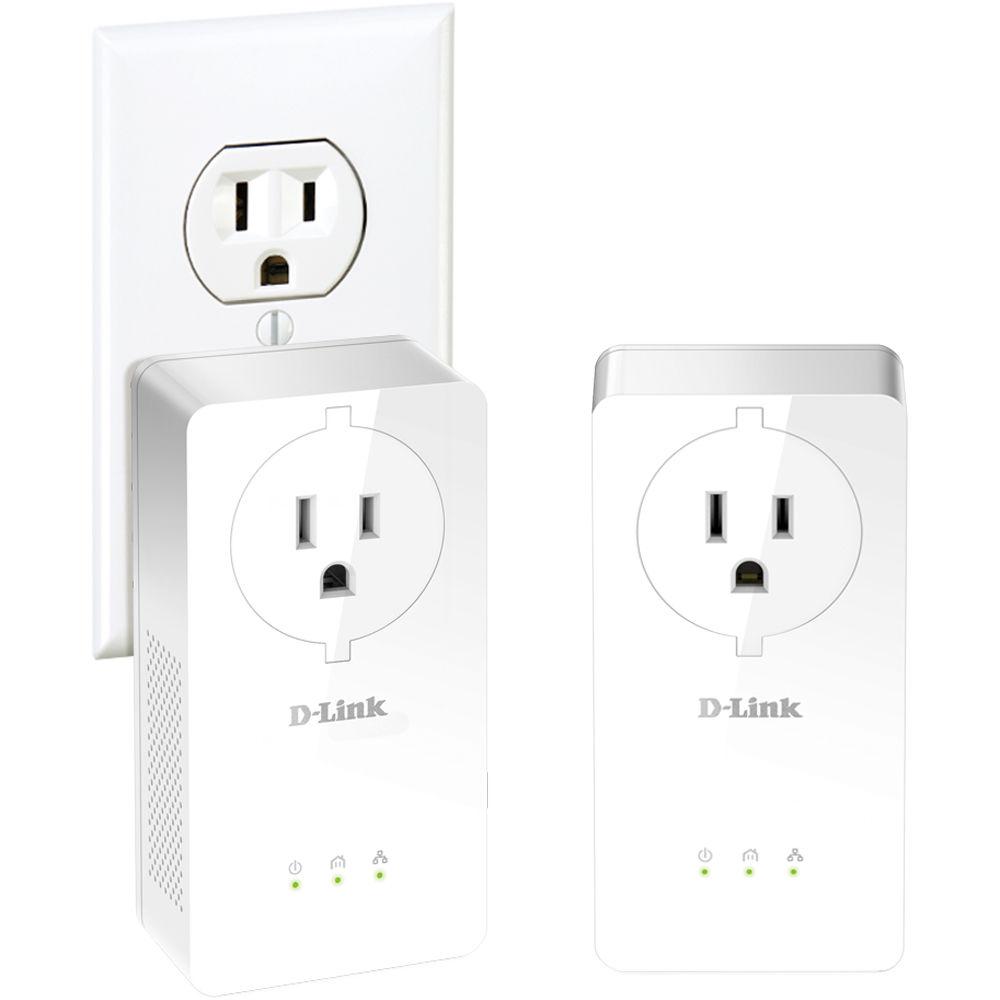

- Passthrough Noise Filter
- The integrated passthrough socket ensures no power outlet is going to waste and the built-in noise filter eliminates electrical signal noise for powerful transmission performance.

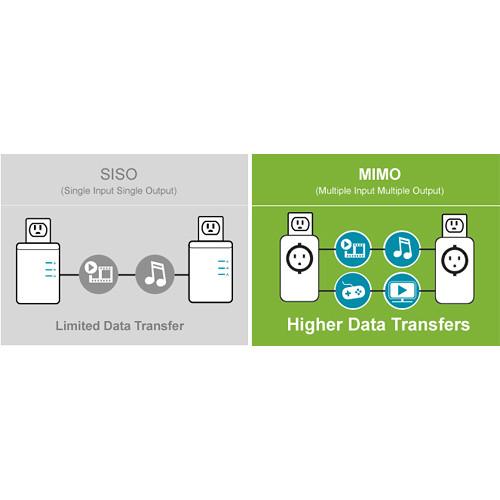

- Do More with AV2 MIMO Technology
- Stream more HD media, play more online games, and transfer all of the large files you want. AV2 MIMO technology will guarantee you a higher data transfer rate.
- No Configuration Needed, Just Plug It In

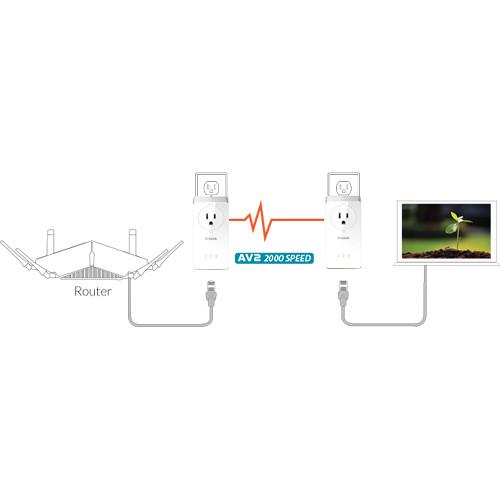

- Just connect one of your adapters to your router, connect the other adapter to your smart TVs, laptops, game consoles, and then press the Simple Connect button on each adapter to create a secure connection.

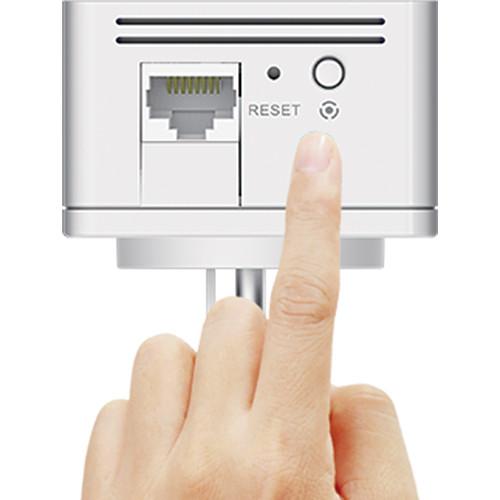

- One-Touch Security for Easy Setup
- Simply plug and play. No need to configure or to remember passwords. A simple push of a button will get your network secured in minutes.
- Power Saving Mode
- Power Saving mode reduces power consumption up to 85% when not in use.
UPC: 790069426421 In the Box D-Link DHP-P701AV Powerline AV2 2000 Passthrough Starter Kit 2 x PowerLine AV2 2000 Gigabit Passthrough Adapters 2 x Ethernet Cable Limited 1-Year Warranty More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DHP-P701AV Powerline AV2 2000 Passthrough Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DHP-P701AV Specs | Maximum Data Rate | 2000 Mb/s | | Number of Ethernet Ports | 1 | | Ethernet Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 1901 | | Ethernet Speed | 10/100/1000 Mb/s | | Powerline Technology | HomePlug AV, HomePlug AV2 | | Powerline Frequency Band | 2 to 86 MHz | | Modulation Technology | OFDM | | Plug Type | US (3-Pin) | | AC Pass-Through | Yes | | Wi-Fi Standards | None | | Encryption | 128-Bit AES | | Active Power Consumption | 4.36 W | | Power-Saving Mode | Yes | | Standby Power Consumption | 3.75 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Storage Humidity | 5 to 95% | | Dimensions (W x H x D) | 4.7 x 2.4 x 1.5" / 11.9 x 6.1 x 3.8 cm | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 8.3 x 5.8 x 4.1" |
