User Manual for D-Link DSR-1000AC Wireless Dual WAN 4-Port Gigabit VPN Router with 802.11ac Support Click to enlarge the picture
Contents of the user manual for the D-Link DSR-1000AC Wireless Dual WAN 4-Port
- Product category: Wireless Routers D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Wireless Routers
 |
User manual for the D-Link DSR-1000AC Wireless Dual WAN 4-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|

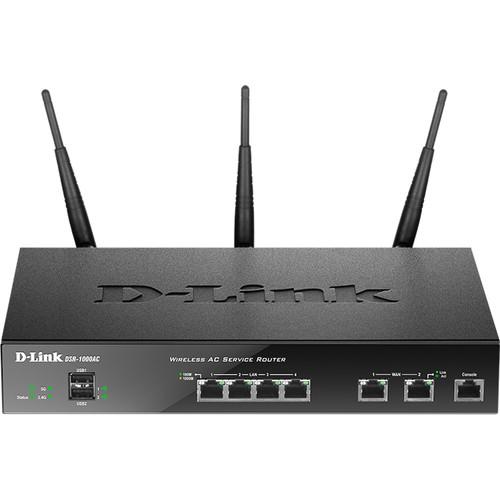

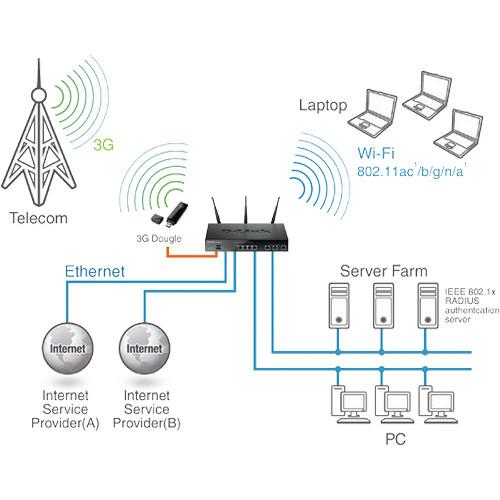

Product description The DSR-1000AC Wireless Dual WAN 4-Port Gigabit VPN Router from D-Link supports IEEE 802.11ac wireless standards and features dual WAN Gigabit Ethernet ports to provide increased availability for your WAN or Internet connections. The traffic can be load-balanced across links with Outbound Load Balancing, increasing the performance and availability of business applications. The secondary WAN port can also be used to create a DMZ, isolating servers from your LAN. The router comes with three detachable 2 dBi omni-directional antennas.Captive Portal allows employees and guest users to be easily authenticated and authorized by accessing a customized landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.

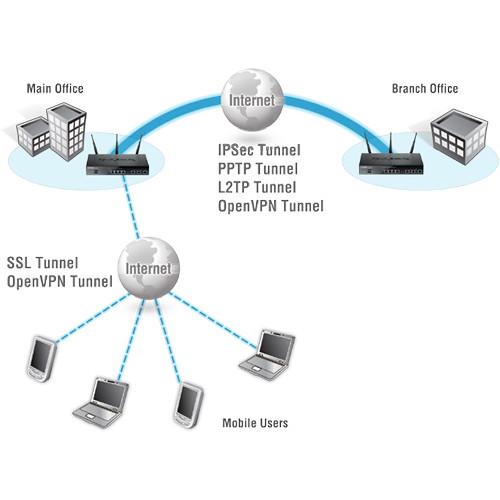

A fully featured virtual private network (VPN) provides mobile workers and branch offices with a secure link to a network. The router is capable of creating Secure Sockets Layer (SSL) VPN tunnels as well as Generic Routing Encapsulation (GRE) tunnels, providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the corporate Intranet via encrypted links with their PC, laptops, or mobile devices.
The router also provides a web content filtering feature to help administrators monitor, manage, and control Internet usage of employees. The static web content filtering helps to remove malicious objects such as Java applets, ActiveX, and cookies, or to block URLs by keyword. The Dynamic Web Content Filtering allows administrators to filter content from a list of categories. Multiple global index servers with millions of URLs and real-time website data help in enhancing performance and maximizing service availability. Note: Note: Dynamic Web Content Filtering subscription is free for the first three months. A license purchase is required to continue using this service after completion of three months. Performance - Protocols: IPSec, PPTP/L2TP, GRE, SSL, OpenVPN
- VPN Tunnels:
DES, 3DES, AES, Blowfish, Twofish, CAST128
Hub and Spoke Enhanced Network Service - IPv6 and IEEE 802.11q VLAN
- Port monitoring/bandwidth control
- IGMP Proxy and IGMP Snooping
- Web content filtering and web authentication capabilities
Wireless Access and Security - Supports IEEE 802.11 a/b/g/n/ac
- IEEE 802.1x RADIUS Authentication with EAPTLS, EAP-TLLS, and EAP-PEAP
- WPS, WEP, WPA-PSK, WPA-EAP, WPA2-PSK, and WPA2- EAP
Fault Tolerance UPC: 790069416606 In the Box D-Link DSR-1000AC Wireless Dual WAN 4-Port Gigabit VPN Router with 802.11ac Support Limited Lifetime Warranty More info from D-Link xcxvsuwdcqfuuaetfxvfrdteaxvxtxdbufu Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DSR-1000AC Wireless Dual WAN 4-Port Gigabit VPN Router with 802.11ac Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DSR-1000AC Specs | Hardware Version | A1 | | Ethernet Ports | 2 x 10/100/1000 Mb/s WAN
4 x 10/100/1000 Mb/s LAN | | Wireless Interface | 802.11 ac/a/b/g/n (concurrent dual band)

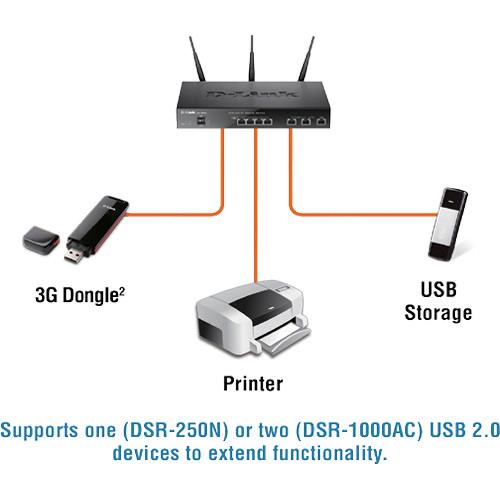

3 x detachable 2 dBi omni- directional antennas | | USB 2.0 | 2 | | Console | RJ45 | | Firewall Throughput | 950 Mb/s | | IPsec VPN Throughput (3 DES) | 250 Mb/s | | Concurrent Sessions | 100,000 | | Sessions | New per Second: 1000 | | Firewall Policies | 600 | | Internet Connection Types | Static/Dynamic IP
PPoE/L2TP/PPTP
Multiple PPoE | | Firewall | Static Routes
Dynamic Route: RIPv1, RIPv2, OSPF
Dynamic DNS
Inter-VLAN Route
NAT, PAT
Web Content Filtering: Static URL, Keywords, Dynamic WCF (license is required)
Intrusion Prevention Systems (IPS): Signature package included in Firmware
Authentication: Internal User Database, RADIUS, POP3, LDAP, AD, NT Domain | | Networking | DHCP Server/Client
DHCP Relay
IEEE 802.1q VLAN
VLAN (Port-Based)
IP Multicast: IGMP Proxy, IGMP Snooping
IPv6
Route Failover
Outbound Load Balancing | | Wireless | Multiple Service Set Identifier (SSID)
Service Set Identifier (SSID) toVLAN Mapping
Standard: 802.11 ac/a/b/g/n
Wireless Security: Wired Equivalent Privacy (WEP), Wi-Fi Protect Setup (WPS), Wi-Fi Protected Access - Personal (WPAPSK), Wi-Fi Protected Access - Enterprise (WPAEAP), Wi-Fi Protected Access version 2 - Personal (WPA-PSK), Wi-Fi Protected Access version 2 - Enterprise (WPA-EAP) | | VPN | VPN Tunnels (Total): 155
IPSec Tunnels: 70
SSL VPN Tunnels: 20
PPTP/L2TP Clients: 25
GRE: 20
Encryption Methods: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
SSL Encryption Methods
IPSec/PPTP/L2TP Server/OpenVPN Server
IPSec NAT Traversal
Dead Peer Detection
IP Encapsulating SecurityPayload (ESP)
IP Authentication Header(AH) | | Bandwidth Management | Maximum Bandwidth Control
Priority Bandwidth Control: Port-Based QoS, 3 Classes | | System Management | Web-based user interface
Command Line
SNMP v1, v2c, v3 | | Power Supply | External Power Supply Unit: 12 VDC/3 A | | Power Consumption | 20.69 W/23.1 W | | Operation Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 158°F / -20 to 70°C | | Operating Humidity | 5 to 95% Non-condensing | | EMI/EMC | FCC Class B, CE Class B, C-Tick, IC, VCCI | | Safety | cUL, LVD (EN60950-1) | | Certifications | IPv6 Ready, VPNC, AES Interop, VPNC Basic Interop | | MTBF | 360,000 hours | | Dimensions (L x W x H) | 7.09 x 11.02 x 1.73" / 180 x 280 x 44 mm | | Weight | Not specified by the manufacturer | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 15.7 x 10.9 x 3.2" |
