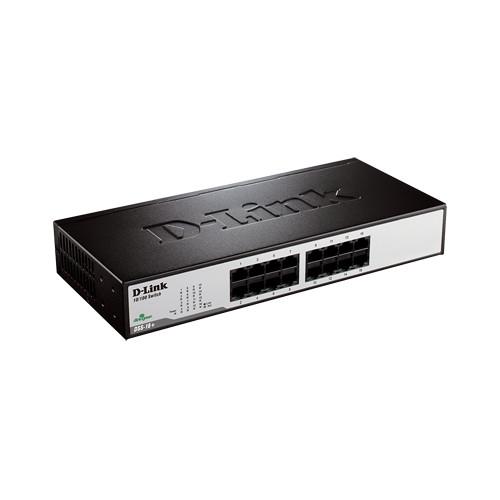

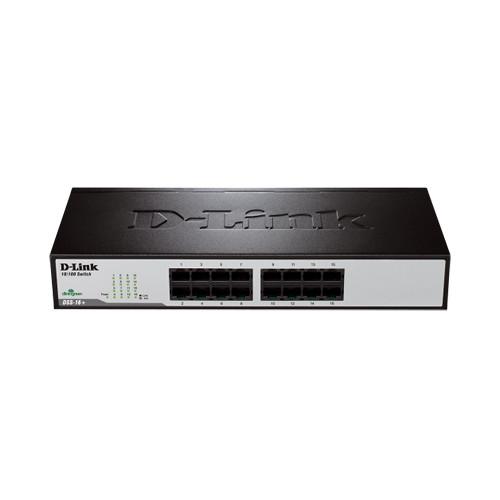

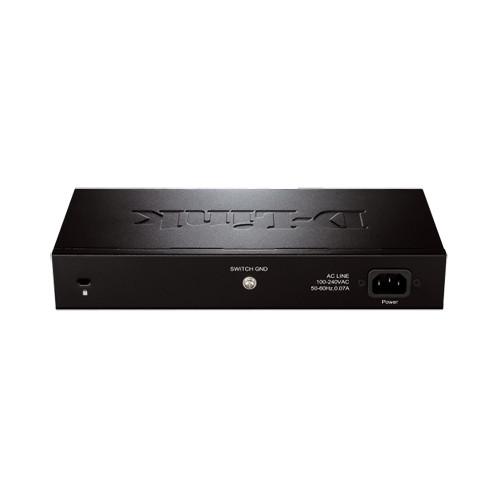

User Manual for D-Link DSS-16 16-Port 10 100 Unmanaged Desktop Rackmount Switch Click to enlarge the picture
Contents of the user manual for the D-Link DSS-16 16-Port 10 100 Unmanaged
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link DSS-16 16-Port 10 100 Unmanaged contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The DSS-16+ 16-Port 10/100 Unmanaged Desktop/Rackmount Switch from D-Link provides a simple and space-saving solution for expanding your network. Connect this switch to a router and add up to 15 Ethernet-based devices such as a print server, Network Attached Storage (NAS), or network camera to increase the functionality of your network. It is compact enough to be placed anywhere in your home or office. The switch supports Quality of Service (QoS), reducing jitter and lag with Voice over IP (VoIP) and gaming*. The switch does not require any configuration or software, making installation simple and hassle-free. With the Auto-MDI/MDI-X support, there is no need for crossover cables when you are connecting to another switch or to a computer. Additionally, the DSS-16+ will automatically sense if the connected network devices are running at 10 Mb/s or 100 Mb/s and adjust accordingly. Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance. Note: *All attached devices must support 802.1p queuing to allow QoS functionality. - The switch supports ANSY/IEEE NWay Auto-negotiation of speed and duplex modes for each port
- Wire speed reception and transmission
- Store-and-forward switching method
- Integrated address Look-Up Engine; supports 8K absolute MAC addresses
- Features 3.2 Gb/s switch fabric forwarding capacity
- Supports Auto-MDI/MDI-X for each port
- Supports IEEE 802.3x flow control for full-duplex
- Supports IEEE 802.1p QoS to improve the delivery of time-sensitive applications such as voice, video, and gaming traffic
- Front-panel diagnostic LEDs
- Broadcast storm protection
UPC: 790069218637 In the Box D-Link DSS-16+ 16-Port 10/100 Unmanaged Desktop/Rackmount Switch Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link DSS-16 16-Port 10 100 Unmanaged Desktop Rackmount Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DSS-16PLUS Specs | | | Transmission Method | Store-and-Forward | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3 Nway, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 3.2 Gb/s | | Packet Buffer | 160 Kb | | | | Power Draw | 2.36 W (Active)
0.8 W (Idle) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Supply Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | | | Mean Time Between Failures (MTBF) | 492,096 Hours | | Indicator Lights | Link/Activity, Power | | Dimensions | 11.1 x 5 x 1.7" / 28.2 x 18 x 4.4 cm | | Weight | 2 lb / 1 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 12.992 x 7.165 x 4.252" |
