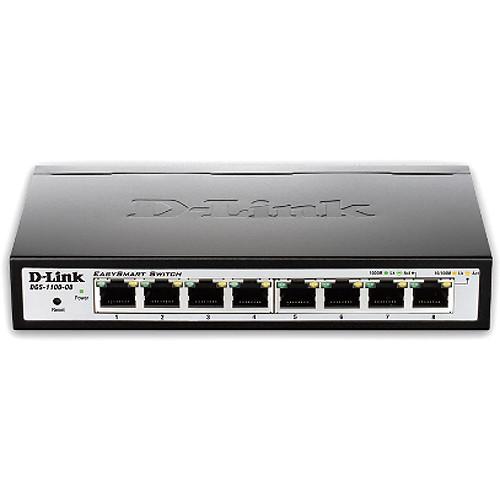

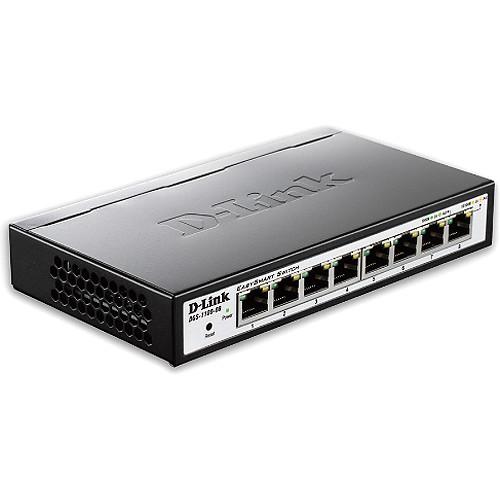

User Manual for D-Link EasySmart 8 Port Click to enlarge the picture
Contents of the user manual for the D-Link EasySmart 8 Port
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link EasySmart 8 Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The EasySmart 8 Port Switch from D-Link has 8 Gigabit Ethernet ports allowing for 8 separate high speed connections. The Gigabit connections allow for 10/100/1000 Mbps connection speeds, surpassing traditional speeds. This D-Link switch provides the increased speeds while remaining energy efficient with the ability to automatically detect the length of connected cables and then adjust the power usage for cables shorter than 20 meters. Along with adjusting the power usage, the D-Link 1100-08 Switch monitors the link status of every port, drastically reducing the power consumption when a port link is down.
You can benefit from a variety of advanced features with the D-Link 1100-08 Switch, such as IGMP Snooping, Bandwidth Control and Static MAC. Each of these features gives you more control over your network. IGMP Snooping is designed to prevent hosts on a local network from receiving traffic for a multicast group they have not explicitly joined, thus streamlining network activity. Bandwidth Control allows you to have complete control over where the bandwidth goes on your network. As a result you can reserve bandwidth on a per port basis, allotting it for functions that require more bandwidth.
Troubleshooting a network is always a necessity. With the D-Link 1100-08 Switch you can take advantage of EasySmart featuring Loopback Detection and Cable Diagnostics. These functions help with those often times hard to find network issues. With LoopBack Detection you can easily identify loops created by a specific port and easily shut down that affected port. With Cable Diagnostics you have the ability to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
The D-Link 1100-08 Switch also comes with a variety of advanced features allowing for even more control over virtually every aspect of your network. You have the ability to create a MAC whitelist for specific ports, allowing you to limit network access to authorized devices only. You can also monitor broadcast, multicast, or unknown unicast traffic with Storm Control. You can then define a specific packet threshold after which packets will be blocked or discarded. - D-Link Green Technology
- Compliant with IEEE802.3az Energy Efficient Ethernet, the D-Link 1100-08 switch consumes less energy by cutting down on power consumption when port utilization is low. The D-Link 1100-08 switch now has the ability to automatically detect the length of the connected cables and adjust power usage for cables shorter than 20 meters. Along with adjusting power usage, this switch can monitor the link status of every port and drastically reduce power consumption when a port link is down.
- Easy to Deploy
- The D-Link 1100-08 switch utilizes an intuitive SmartConsole Utility and a web-based management interface. This SmartConsole Utility makes it easy to discover all switches in the D-Link Smart Switch family within the same L2 network segment. Switches within the same L2 network segment that are connected to the user's PC are displayed on-screen for instant access. The graphic web-based management interface provides a user-friendly interface that enables remote control of the network down to the port level.
- Surveillance VLAN and Bandwidth Control
- The D-Link 1100-08 supports Surveillance VLAN for video surveillance deployments. Surveillance VLAN gives video traffic high priority and an individual VLAN, guaranteeing the quality of surveillance traffic through a single switch. Bandwidth Control can reserve bandwidth on a per port basis for important functions that require a larger bandwidth or might have high priority.
- Troubleshooting Made Easy
- With Loopback Detection and Cable Diagnostics the D-Link 1100-08 helps you find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affect port.
- Advanced Features
- Utilize advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.

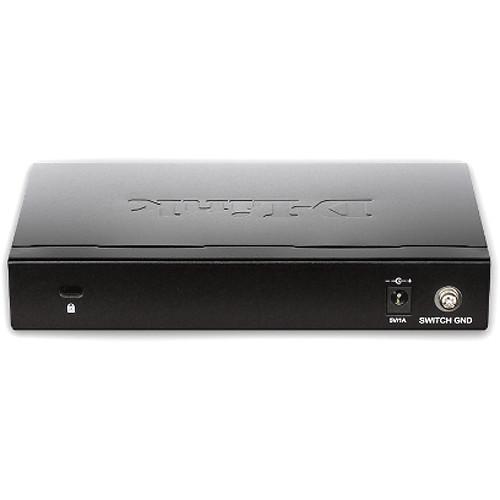

UPC: 790069371813 In the Box D-Link EasySmart 8 Port AC Power Adapter Four Rubber Feet Accessory Kit for Wall-Mount Installation Ground Screw that Screws on to the D-Link EasySmart Switch Multi-Lingual Getting Started Guide CD with User Manual and SmartConsole Utility Program Limited Lifetime Warranty User Manual PDF 2mbbeuwazdfvcxcaefyftysczfbwd More info from D-Link Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link EasySmart 8 Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link DGS-1100 Specs | | | Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) | | | | Supported Protocols | Auto-MDIX/MDI
Head-of-Line (HOL) Blocking
IGMP Snooping | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3az, 802.3u, 802.3x | | | | Forwarding Rate | 11.9 Mpps | | Switching Bandwidth | 16 Gb/s | | Packet Buffer | 256 Kb | | | | Power Draw | 4.58 W (Active)
0.62 W (Idle) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 95% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Noise Level | 0.0 dB | | | | Cooling System | Passive | | Mean Time Between Failures (MTBF) | 503,585 Hours | | Dimensions | 6.7 x 3.9 x 1.1" / 17.1 x 9.8 x 2.8 cm | | Weight | 1 lb / 0 kg | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 10.4 x 8.1 x 2.6" |
