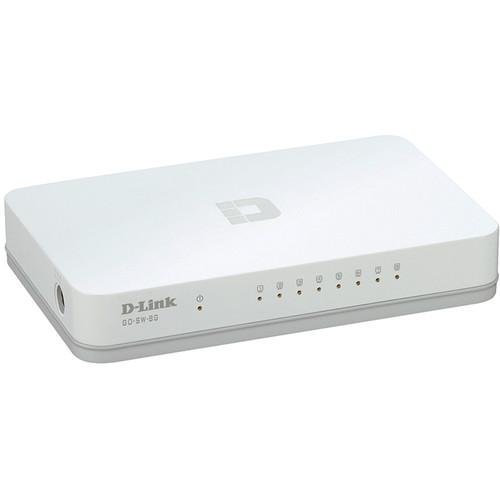

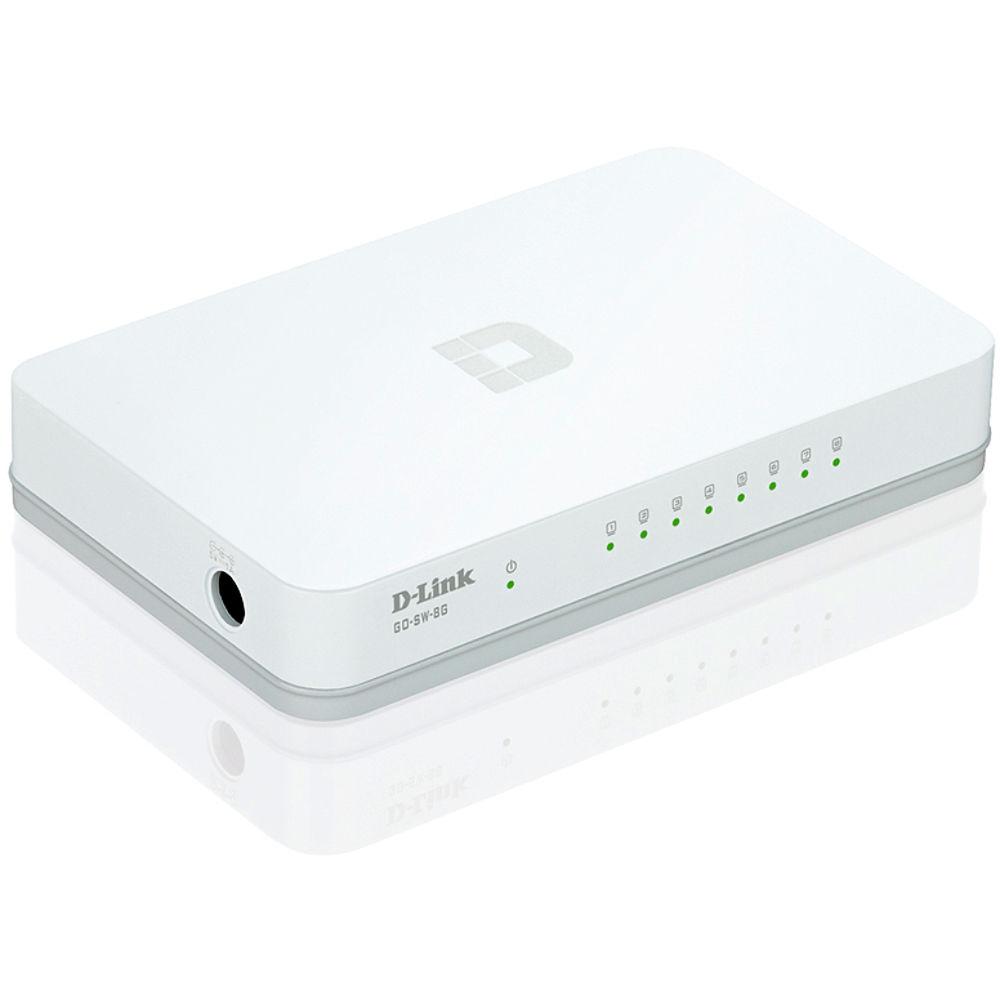

User Manual for D-Link GO-SW-8G 8-Port Unmanaged Gigabit Switch Click to enlarge the picture
Contents of the user manual for the D-Link GO-SW-8G 8-Port Unmanaged Gigabit Switch
- Product category: Network Switches, Bridges & Hubs D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Network Switches, Bridges & Hubs
 |
User manual for the D-Link GO-SW-8G 8-Port Unmanaged Gigabit Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The GO-SW-8G 8-Port Unmanaged Gigabit Switch from D-Link comes complete with 8 10/100/1000 Gigabit speed Ethernet ports perfect for transferring large amounts of data. With IEEE 802.3 compliance you can rest assured you are receiving reliable stable data connections. The Auto MDI/MDIX functionality detects if your connection requires a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
The 16Gbps switching capacity allows you to not only transfer large files but stream data throughout the network with little to no interruption. With integrated status LED indicators reflecting the Power (Per Device) and Link/Activity/Speed (Per Port) you can see the status of each of your connections. This particular switch contains a MTBF (mean time between failures) of 412,433 hours making this not only an efficient but reliable switch. - Connect All of Your Devices with Gigabit Speed
- Expand your wired network with the D-Link 8-Port Unmanaged Gigabit Desktop Switch (GO-SW-8G). By connecting the GO-SW-8G to your router, you can add up to seven more computers to your home network with Fast Ethernet connectivity. Add devices like your gaming console, printer, print server, Network-Attached Storage (NAS) or network camera with a simple Ethernet cable.
- Compact Design

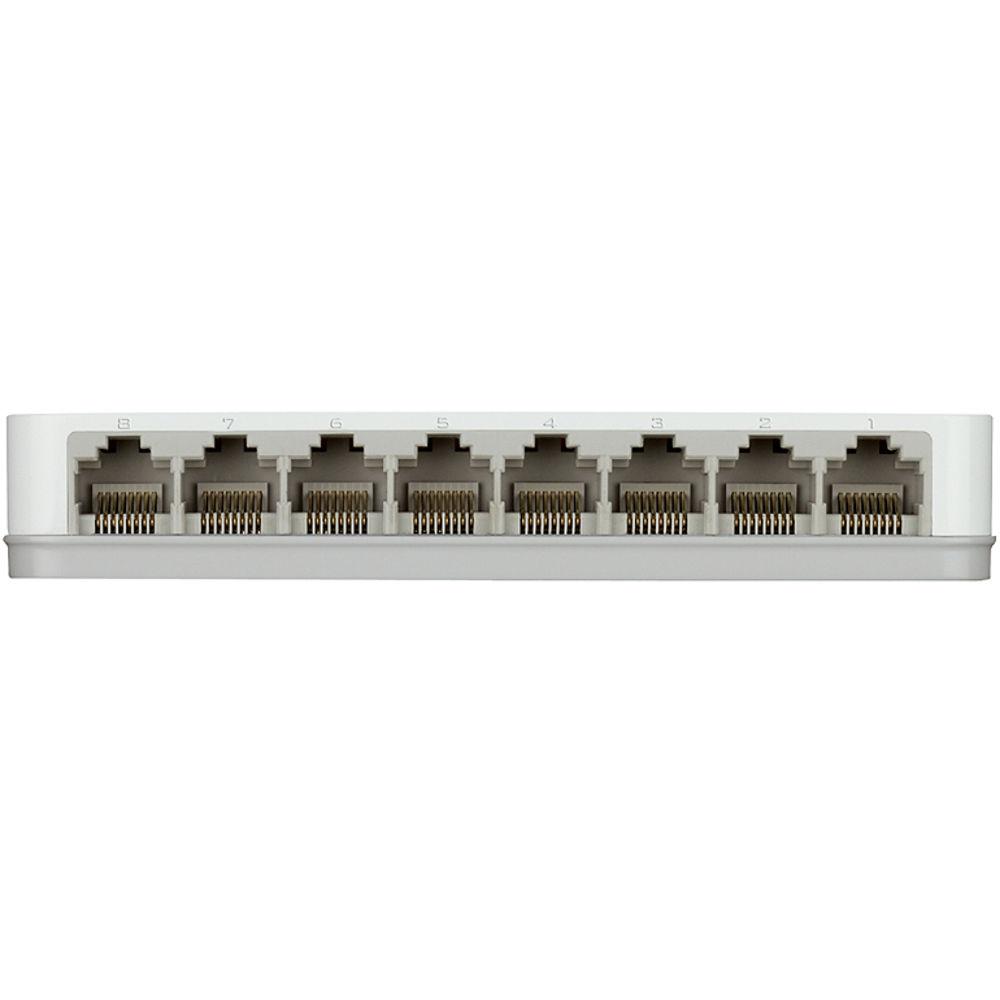

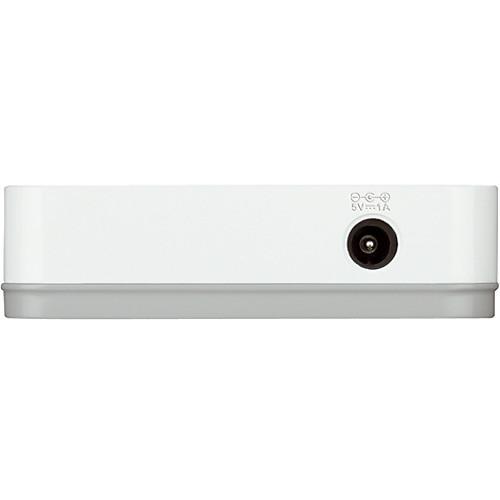

- This Desktop Switch fits virtually anywhere because of its compact size. Its power connector and ports are conveniently located in the rear to avoid messy cables on the desk.
- Effortless High Speed Networking

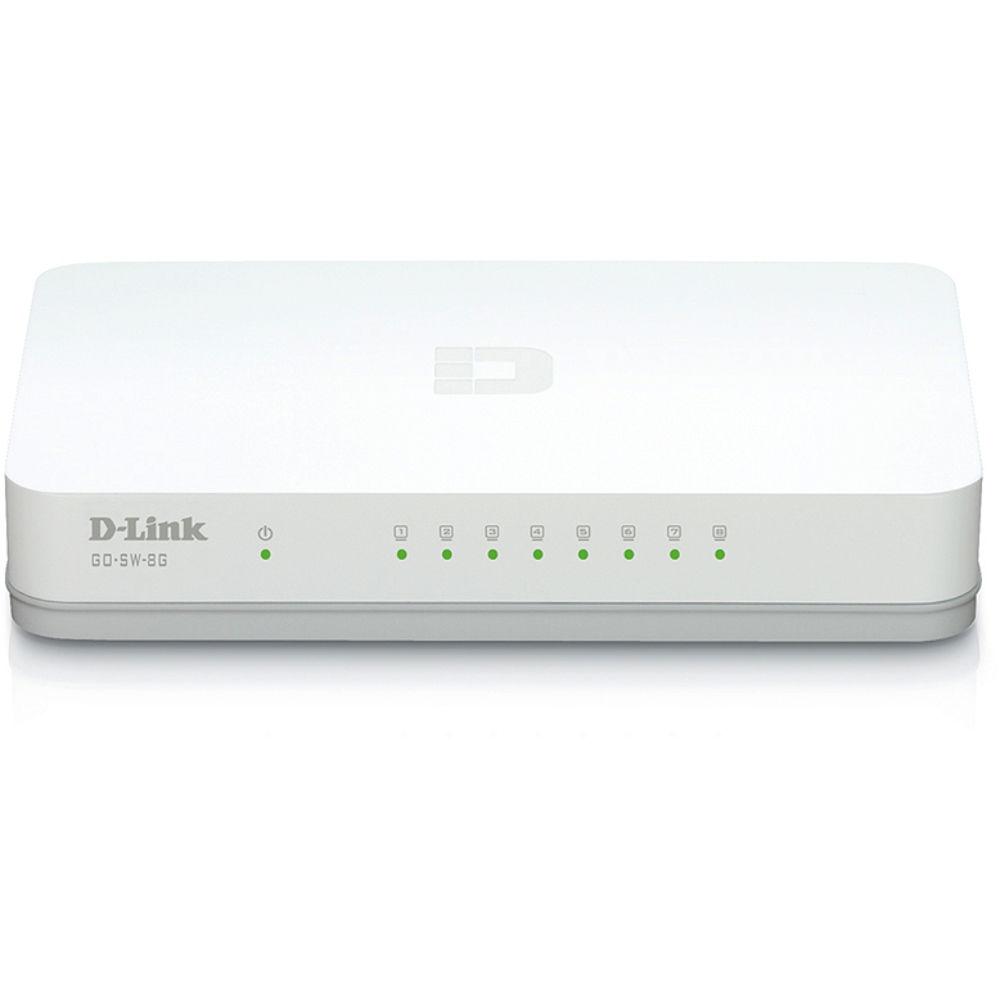

- Features easy access auto sensing Gigabit Ethernet ports on the back with an LED indicator for each port on the front to quickly distinguish link status and activity. The GO-SW-8G switch also supports Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables to get you the maximum speed possible for each device connected to your network.
- Plug and Play Installation
- The D-Link 8-Port Gigabit Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.
- D-Link Green Technology
- The GO-SW-8G 8-Port Unmanaged Gigabit Switch is part of D-Link's series of SOHO devices that make use of D-Link's Green Technology, providing energy savings, reduced heat, and a longer product life without sacrificing performance or functionality. An energy-efficient power adapter (EnergyStar Level V qualified), minimized use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
UPC: 790069370687 In the Box D-Link GO-SW-8G 8-Port Unmanaged Gigabit Switch Power Adapter Quick Install Guide Limited 3-Year Warranty More info from D-Link bvcbawzaurzddwxw Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link GO-SW-8G 8-Port Unmanaged Gigabit Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link GO-SW-8G Specs | | | Supported Protocols | Auto-MDIX/MDI | | Transmission Method | Store-and-Forward | | Jumbo Frames Support | 9,216 Bytes | | MAC Address Table Size | 8K | | | | Supported IEEE Standards | 802.3, 802.3 Nway, 802.3ab, 802.3az, 802.3u, 802.3x | | | | Switching Bandwidth | 16 Gb/s | | | | RAM Buffer | 128 KB per Device | | | | Power Draw | 3.9 W (Active) | | DC Input Power | 5 VDC at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 90% | | Storage Temperature | 14 to 158°F / -10 to 70°C | | Storage Humidity | 5 to 90% | | | | Mean Time Between Failures (MTBF) | 412,433 Hours | | Indicator Lights | Link/Activity/Speed, Power | | Dimensions | 5 x 2.7 x 1" / 12.8 x 6.9 x 2.6 cm | | Weight | 0 lb / 0 kg | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.7" |
