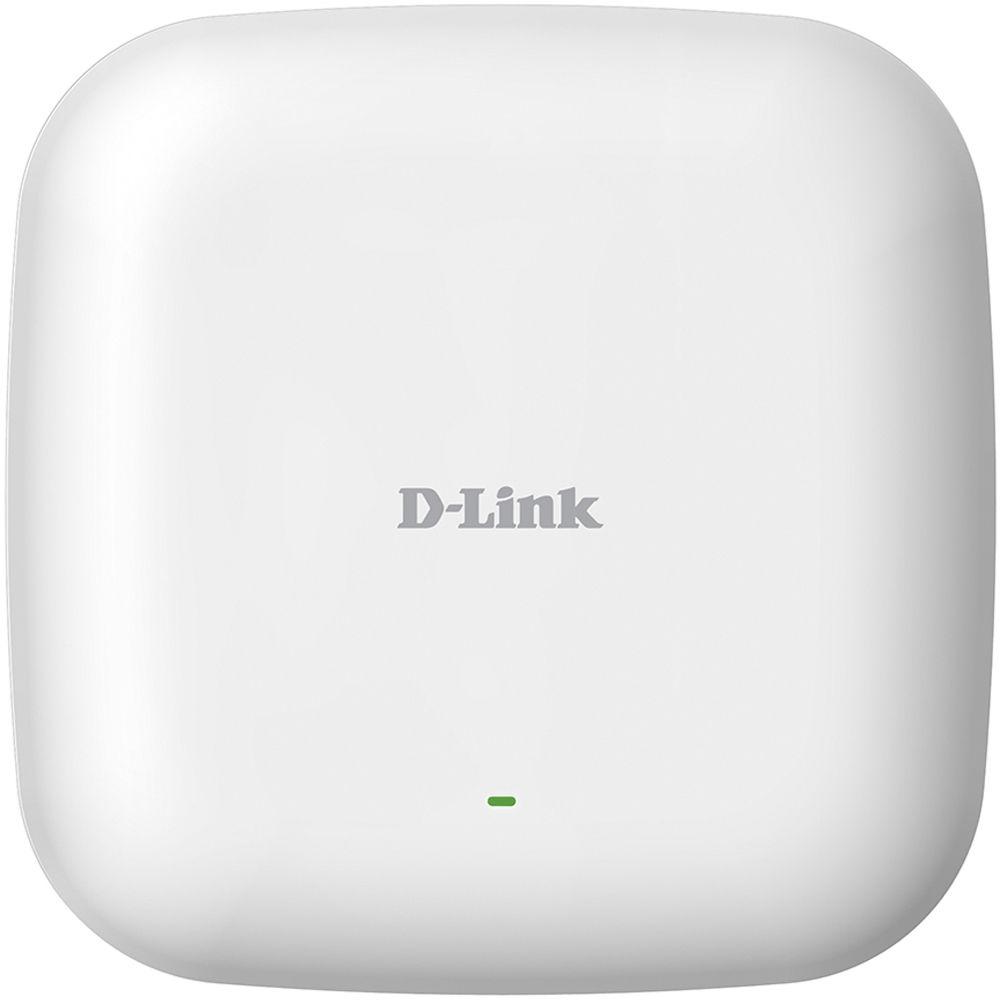

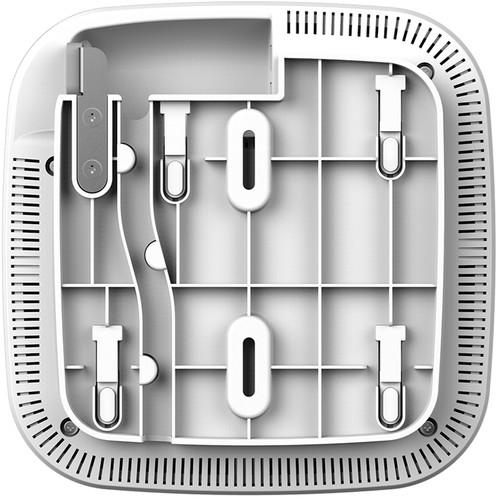

User Manual for D-Link Wireless AC1300 Wave 2 Dual-Band PoE Access Point Click to enlarge the picture
Contents of the user manual for the D-Link Wireless AC1300 Wave 2 Dual-Band
- Product category: Wireless Access Points D-Link
- Brand: D-Link
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D-Link Wireless Access Points
 |
User manual for the D-Link Wireless AC1300 Wave 2 Dual-Band contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D-Link product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D-Link user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D-Link product will considerably shorten its lifespan!
|
Product description The Wireless AC1300 Wave 2 Dual-Band PoE Access Point from D-Link offers maximum wireless signal rates of 1300 Mb/s and supports Wi-Fi Multimedia (WMM) Quality of Service features, making it suitable for audio, video, and voice applications. When enabled, QoS allows the DAP-2610 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP.
The QoS feature can be adjusted through the DAP-2610 web GUI using a drop-down menu to select customized priority rules. Additionally, the DAP-2610 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point. The access point supports 802.3af PoE function, enabling installation in areas where power outlets are not readily available. In addition to bridging 802.11ac and 802.11b/g/n wireless networks, the DAP-2610 can bridge to wired networks with its integrated Gigabit LAN port. To help maintain a secure wireless network, the DAP-2610 Access Point supports both Personal and Enterprise versions of WPA and WPA2 with support for back end RADIUS server. In addition, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also supported. - Operation at 2.4 to 2.5 GHz and 5.15 to 5.85 GHz frequency bands to meet worldwide regulations
- Strong security and authentication features including WPA/WPA2, wireless LAN segmentation, and VLAN support
- Supports Network Access Protection (NAP) for defining multiple levels of network access
- Can be used as an access point, a Wireless Distribution System (WDS), a WDS with access point, or a wireless client
- Local/POP3/RADIUS/PassCode/LDAP authentication for captive portal
- D-Link Central Wi-Fi Manager for remote maintenance checks
- Small form factor design for easy placement
- Supports 802.3af Power over Ethernet (PoE) for flexible installation options
- Wall and ceiling mountable

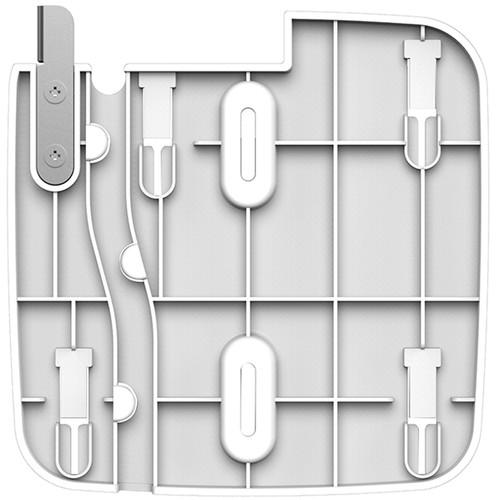

UPC: 790069430909 In the Box D-Link Wireless AC1300 Wave 2 Dual-Band PoE Access Point Power Adapter Mounting Plate and Hardware Ethernet Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D-Link Wireless AC1300 Wave 2 Dual-Band PoE Access Point in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD-Link Access Point DAP-2610 Specs | | | Interfaces | IEEE 802.11a/b/g/n/ac Wave 2 wireless
Gigabit LAN (supports PoE) | | Standards | IEEE 802.11a/b/g/n/ac
IEEE 802.3u/ab
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3af Power over Ethernet | | Antennas | 2 x Internal dual-band 3 dBi omni antennas | | Operating Frequency | 2.4 GHz Band: 2.4 to 2.4835 GHz
5 GHz Band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz | | Maximum Output Power | 23 dBm for 2.4 GHz
23 dBm for 5 GHz | | Data Signal | 2.4 GHz: Up to 400 Mb/s
5 GHz: Up to 867 Mb/s | | Security | WPA-Personal
WPA-Enterprise
WPA2-Personal
WPA2-Enterprise
WEP 64/128-bit encryption
SSID broadcast disable
MAC address access control
Network Access Protection (NAP)
Internal RADIUS server | | Network Management | Telnet
Secure Telnet (SSH)
Web (HTTP)
Secure Socket Layer (SSL)
Traffic control
SNMP v1/v2c/v3
D-Link Central Wi-Fi Manager
AP Array | | LED | Power/Status | | Power Supply | External Power Adapter: 12 V, 1 A
IEEE 802.3af PoE | | Power Consumption (Maximum) | 12 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 149°F / -20 to 65°C | | Operating Humidity | 10 to 90% | | Storage Humidity | 5 to 95% | | Certifications | FCC
IC
CE
UL
Wi-Fi | | Mean Time Before Failure | >30,000 hours | | Dimensions | 6.7 x 6.7 x 1.1" / 17.0 x 17.0 x 2.8 cm | | Weight | Without Mounting Base: 0.69 lb / 314 g
With Mounting Base: 0.82 lb / 370.6 g |
