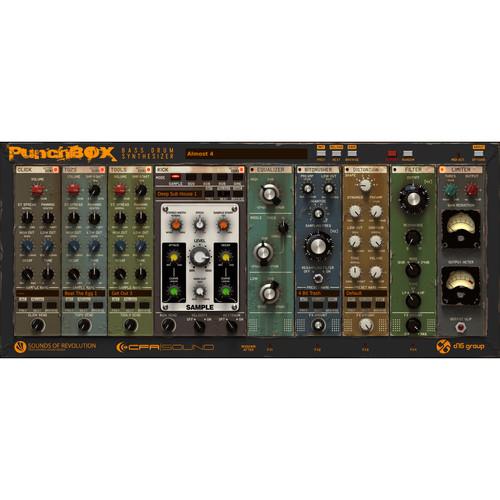

User Manual for D16 Group Punchbox Bass Drum Synthesizer Click to enlarge the picture
Contents of the user manual for the D16 Group Punchbox Bass Drum Synthesizer
- Product category: Virtual Instruments D16 Group
- Brand: D16 Group
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D16 Group Virtual Instruments
|
User manual for the D16 Group Punchbox Bass Drum Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D16 Group product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D16 Group user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D16 Group product will considerably shorten its lifespan!
|
Product description Punchbox from D16 Group is a bass drum synthesizer capable of generating a variety of kick drums suitable for any genre. This advanced kick-generating instrument utilizes overlaying sound sources to produce the final kick tone. Additionally, there are a number of effects to further process the kick.
At the heart of the instrument lies four generators that produce the Kick tone components. Their outputs are mixed and sent to the effect cascade, and then to the plug-in audio output. The instrument is monophonic and may respond to the pitch and/or velocity of the MIDI notes depending on the settings. Kick generates the primary tone (body) component. It may serve as a sampler or synthesizer (with a few available alternative generator engines that may be selected). Kick is provided with substantial factory content (samples and presets). Click, Tops and Tools generate the auxiliary components of the final tone. They are based only on samples and each of them also has substantial factory sample bank.
The available effects section is used to further shape the bass drum tone and includes five modules wired in series. Flowing from left-to-right, the effects include EQ, Bitcrusher, Distortion, and Filter. For sound processing flexibility, these four effects can be reordered by a simple drag-n-drop method. The last effect, Master Limiter, is a fixed position and consists of an optionally activated limiter with the built-in auto-makeup. Once satisfied, the preset can be saved for later recall, or exported to save CPU resources. -
- Sound source
- Up to 4 generators, operating in parallel, activated/deactivated independently
- Click - Sample-based, produces Kick accent
- Tops - Sample-based, produces e.g. hihats, percussion and noise
- Tools - Sample-based, produces almost full Kicks without sub
- Kick - Sample-based or Synth-based, produces the Kick's body. 4 synthesis engines for Synth Mode to select from:
- 909 Kick model
- 808 Kick model
- 606 Kick model
- Sine wave based Kick model
- Audio-to-effect send per generator
- 1 voice of polyphony
- Optional MIDI velocity sensitivity and pitch tracking
- Built-in effect rack
- 5 high-quality algorithms operating in series, may be independently turned on/off and reordered by drag'n'drop
- Equalizer
- Bit Crusher
- Distortion
- Filter
- Limiter
- Controllable connection point in the effect chain for the generators’ direct output (Mixdown after)
- Samples and presets
- Vast factory content designed by CFA-Sound and Sounds of Revolution
- 800 presets
- 1100 samples
- Suitably tagged
- Tag-based Preset and Sample browsers
- User may import own samples
- 7 preset categories (hierarchically ordered)
- Global / Master presets
- 909 Synth engine
- 808 Synth engine
- 606 Synth engine
- Sine Synth engine
- Bitcrusher Effect
- Distortion Effect
- MIDI Learn option
- Flexible Randomizer
- Direct Export function (export your final kick as WAV file)
Table of Contents
|
Upload User Manual
Have you got an user manual for the D16 Group Punchbox Bass Drum Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD16 Group 11-31291 Specs | | | Windows | OS Version: Windows 7, Windows 8, Windows 8.1, Windows 10
CPU: 2.0 GHz with SSE (Multi-core system 2.4 GHz recommended)
RAM: 4 GB
Software: VST / AAX compatible host application (32-bit or 64-bit) | | Mac | OS Version: 10.7 to 10.11
CPU: Intel based 2.0 GHz (2.4 GHz recommended)
RAM: 4 GB
Software: AU / VST / AAX compatible host application (32-bit or 64-bit) |
