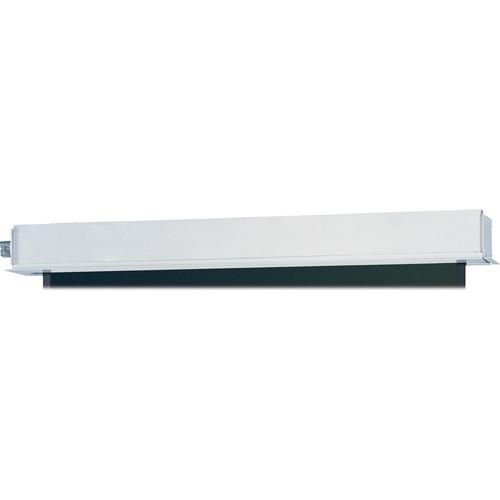

User Manual for Da-Lite 20860EBL Advantage Electrol 65 x 104" Ceiling-Recessed Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 20860EBL Advantage Electrol 65 x
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 20860EBL Advantage Electrol 65 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description Designed to eliminate the extra step of finishing the screen with trim, the 220V 20860EBL Advantage Electrol 65 x 104" Ceiling-Recessed Motorized Screen from Da-Lite is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening, eliminating the need to complete additional trim work. Sliding installation brackets are included to make it easy to attach the screen housing to the structure above the drop ceiling.
The Advantage Electrol screen features simple in-ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage, and the fabric assembly can be completed during the finishing stage. Note: This item comes with the box only, meaning the desired screen material must be purchased separately. Video Spectra 1.5 Screen Surface - Video Spectra 1.5 is a fiberglass surface with a reflective coating for lower output non-high-definition projectors. It offers increased brightness with a reduced viewing angle. Suitable for uncontrolled ambient light. Cone: 70° Gain: 1.5
Key Features - A Silent Drive Motor and internal vibration isolators keep operation quiet
- White powder-coated case for a clean aesthetic
- Decora-style, three-button wall switch
- Black backing to retain projected brightness
Included Options - Low Voltage Control (LVC)
- Allows the included wall switch, as well as devices such as automation systems, third-party wall switches, and remotes that support LVC, to raise or lower the screen remotely
- Box Only - Screen Fabric Available Separately
- This screen comes with the box only, meaning the desired screen material must be purchased separately. This design allows the box to be installed during the construction phrase while the screen can be installed later, once construction is complete. This ensures the screen won't be damaged during construction
UPC: 717068964266 In the Box Da-Lite 20860EBL Advantage Electrol 65 x 104" Ceiling-Recessed Motorized Screen (220V, Box Only) Three-Button Wall Switch Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 20860EBL Advantage Electrol 65 x 104" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 20860EBL Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 65.0 x 104.0" / 165.1 x 264.2 cm | | Diagonal | 123.0" / 312.4 cm | | | | Gain | 1.5 | | Viewing Angle | 70 degrees | | Masking | All four sides | | Black Backing | Yes | | | | Motor | Quiet | | Included Controls | Low voltage control, Wall switch | | | | Finish | Aluminum | | Length | 113.5" / 288.3 cm |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
