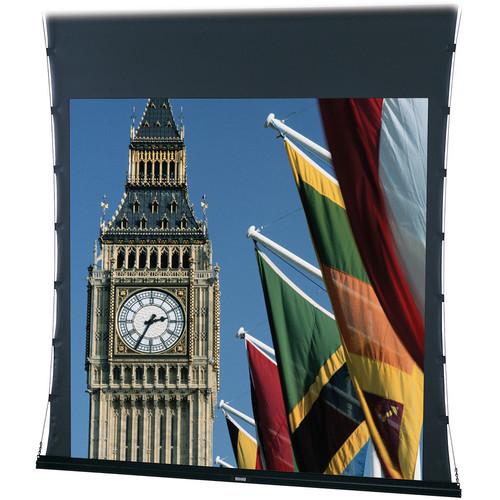

User Manual for Da-Lite 21791EFLSR Tensioned Advantage Electrol 52 x 92" Ceiling-Recessed Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 21791EFLSR Tensioned Advantage Electrol 52
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 21791EFLSR Tensioned Advantage Electrol 52 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description Designed to eliminate the extra step of finishing the screen with trim, the 220V 21791EFLSR Tensioned Advantage Electrol 52 x 92" Ceiling-Recessed Motorized Screen from Da-Lite is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets are included to make it easy to attach the screen housing to the structure above the drop ceiling.
The Advantage Electrol screen features simple in-ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.
Note: This screen does not include a box, and is designed for installations where a box has previously been selected. Please ensure the box you are using is compatible - i.e., is of the same size and has the same option - as with this fabric, roller, and motor assembly. The box that goes with this model number is: 21791EBLSR. - HD Progressive 0.9 Screen Surface
- Ideal for moderate to high output projectors, the light gray surface provides balance between color reproduction and image contrast. Cone: 170° Gain: 0.9
- Tensioning System
-
- Smooth Roll Technology to keep your screen flat
- Slim-Tab, a lower profile and stronger tab design to keep your screen taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- Key Features
-
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Black-backed screen material for enhanced image quality and opacity
- Seamless surface
- SCB-100 RS-232 Control
- An added circuit board that allows for opening or closing the screen with a relay switch or RS-232 protocol communication
- Silent Motor
- Designed to provide silent operation when raising or lowering the screen
- Fabric, Roller, Motor Only - Box Available Separately
- This screen comes with the screen fabric, roller, and motor only, meaning the box must be purchased separately. This design allows the box to be installed during the construction phase while the screen can be installed later, once construction is complete. This ensures the screen won't be damaged during construction
- Low Voltage Control (LVC)
- Allows the included wall switch, as well as devices such as automation systems, third-party wall switches, and remotes that support LVC, to raise or lower the screen remotely
In the Box Da-Lite 21791EFLSR Tensioned Advantage Electrol 52 x 92" Ceiling-Recessed Motorized Screen (220V, No Box) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 21791EFLSR Tensioned Advantage Electrol 52 x 92" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 21791EFLSR Specs | | | Series | Tensioned Advantage Electrol | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed, Wall and ceiling | | | | Viewing Area | 52.0 x 92.0" / 132.1 x 233.7 cm | | Diagonal | 106.0" / 269.2 cm | | | | Finish Name | HD Progressive 0.9 | | Gain | 0.9 | | Viewing Angle | 170 degrees | | Black Backing | Yes | | | | Motor | Quiet | | Included Controls | Low voltage control, RS-232 | | | | Color | White | | Length | 108.5" / 275.6 cm |
