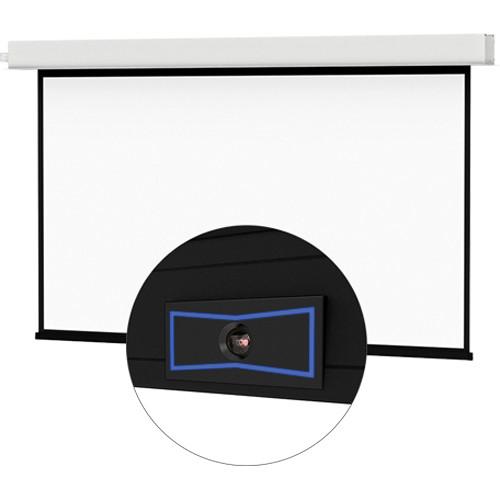

User Manual for Da-Lite 24087ELS ViewShare Advantage Electrol 54 x 96" Ceiling-Recessed Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24087ELS ViewShare Advantage Electrol 54
- Product category: Video Conference Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Video Conference Screens
|
User manual for the Da-Lite 24087ELS ViewShare Advantage Electrol 54 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 220V 24087ELS ViewShare Advantage Electrol 54 x 96" Ceiling-Recessed Motorized Screen from Da-Lite integrates an HD camera into the screen, and is compatible with any free peer-to-peer video conferencing software.
Designed to eliminate the extra step of finishing the screen with trim, the screen features ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening, eliminating the need to complete additional trim work. Sliding installation brackets are provided to make it easy to attach the screen housing to the structure above the drop ceiling.
The ViewShare system screen features simple ceiling-tile installation that can be done in two stages. The screen case can be installed during the rough-in construction stage, and the fabric assembly can be completed during the finishing stage.
- Matte White Screen Surface
- Matte White is a fiberglass surface for non-high-definition projection and environments with controllable ambient light that can display color as well as black and white images. Cone: 120° Gain: 1.0
- Key Features
-
- Simple installation with the included installation kit
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Standard black backing retains projected brightness on front projection surfaces
- Seamless screen surface
Included Options - Silent Motor
- Designed to provide silent operation when raising or lowering the screen
- Integrated Jabra SPEAK 410 MS Speakerphone
-
- Connects via USB
- Requires 120 VAC power (AC adapter included)
- Microsoft certified
- Wideband hi-fi frequency response
- Includes digital signal processing, which digitally optimizes your voice and music while suppressing echoes
- Omnidirectional microphone plus noise filter enhances call clarity by eliminating background noise
- Standard (E-STD) microphone sensitivity is comparable to a normal telephone receiver and is used in most telephone devices
- Mute function directly on the device
- Logitech C930e HD Webcam
-
- The auto-focusing camera is integrated into the slat bar
- Plug-and-play connectivity
- Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
- H.264/SVC video compression
- Supports H.264 SVC 1080p for Microsoft Lync 2013, along with optimizations for call performance in single or multiparty HD video
- 90° field of view
- Up to 4X zoom in 1080p
- Rightlight 2 Technology for clear image in various lighting environments, even low light
- Optional light application for control of pan, tilt and zoom
- Carl Zeiss lens
- External privacy shutter
- Automatic low-light correction
- High-speed USB 2.0 certified (ready for USB 3.0)
- System requirements: Windows 7 or 8 / Mac OS X 10.7 or higher
- 2.4 GHz Intel Core 2 Duo processor
- 2GB of RAM
- Adequate hard drive space for recorded videos
- USB 2.0 port
- Compatible with UVC apps, and H/264 for Lync 2013. Optimized for Lync and Skype
- Low Voltage Control (LVC)
- Allows the included wall switch, as well as devices such as automation systems, third-party wall switches, and remotes that support LVC, to raise or lower the screen remotely
UPC: 717068066755 In the Box Da-Lite 24087ELS ViewShare Advantage Electrol 54 x 96" Ceiling-Recessed Motorized Screen (220V) Limited 5-Year Warranty Limited 3-Year Warranty on Camera Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24087ELS ViewShare Advantage Electrol 54 x 96" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24087ELS Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 54 x 96" / 137.2 x 243.8 cm | | Diagonal | 110" / 279.4 cm | | | | Gain | 1.0 | | Viewing Angle | 120° | | Screen Surface | Matte White |
