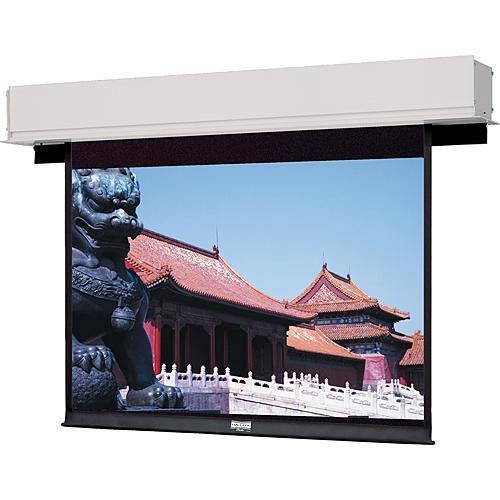

User Manual for Da-Lite 24720L 121 x 216" Tensioned Large Advantage Electrol Ceiling-Recessed Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24720L 121 x 216" Tensioned
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24720L 121 x 216" Tensioned contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 24720L Tensioned Large Advantage Electrol Screen by Da-Lite is a 247" screen that is installed in the ceiling. Operation is provided by a 120 VAC motor. Smooth Roll Technology and a strong Slim-Tab design provide tensioning of the screen surface, ensuring a taut, flat surface. The screen is housed in a white powder-coated case, which is UL Plenum rated. HD Progressive 1.3 is designed for applications where projector brightness and screen size require an increase in gain. It has a gain of 1.3 and a 150° viewing angle. It offers accurate color reproduction and can handle some ambient light. The surface can be cleaned with mild soap and water, and is flame-retardant and mildew-resistant. This seamless surface is also GREENGUARD GOLD certified. To control your screen, a three-position Decora-style wall switch is included. Integrated Low Voltage Control allows the screen to be controlled via a low voltage signal or momentary dry contact from a third-party control system. The LVC is necessary if you are using an IR or RF remote to control your screen. - Standard Low Voltage Control to keep your screen operation flexible
- Smooth Roll Technology to keep the screen flat
- Slim-Tab, a lower profile, and strong tab design to keep your screen taut
- Simple installation with an improved installation kit and user-friendly packaging to keep you on schedule
- Tensioning Cable System designed to prevent warping and ensure even lateral tension
- Includes a Decora-style three-position wall switch
- HD Progressive 1.3 is seamless and has black backing to retain image brightness
In the Box Da-Lite 24720L 121 x 216" Tensioned Large Advantage Electrol Ceiling-Recessed Screen Installation Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24720L 121 x 216" Tensioned Large Advantage Electrol Ceiling-Recessed Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24720L Specs | | | Front/Rear Projection | Front | | Style | Ceiling-recessed | | | | Viewing Area | 121.0 x 216.0" / 307.3 x 548.6 cm | | Diagonal | 247.0" / 627.4 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 150 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | Yes | | | | Motor | Standard | | Included Controls | Low voltage control, Wall switch | | | | Finish | Aluminum | | Length | 246.5" / 626.1 cm | | | | Package Weight | 727.0 lb | | Box Dimensions (LxWxH) | 253.0 x 23.0 x 18.0" |
