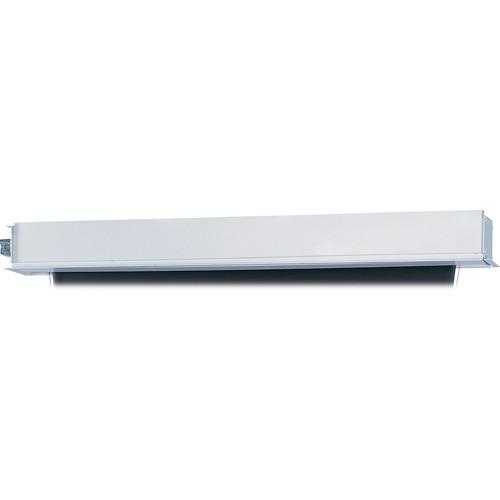

User Manual for Da-Lite 24721BLR Tensioned Large Advantage Electrol 135 x 240" Ceiling-Recessed Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24721BLR Tensioned Large Advantage Electrol
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24721BLR Tensioned Large Advantage Electrol contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description For larger venue installs, the 120V 24721BLR Tensioned Large Advantage Electrol 135 x 240" Ceiling-Recessed Motorized Screen (fabric, roller, and motor available separately) from Da-Lite is designed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening in the ceiling, eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.
Tensioning is provided to help ensure the smoothest surface possible.
Note: This box is part of a system. To complete the system you will also require the fabric, roller, and motor assembly. Purchasing the box first allows the box to be installed during the "rough-in" phase of construction. The screen and other components can then be installed once construction is complete. Please be sure to select the fabric, roller, and motor assembly with the exact size and feature as designated by this box. The fabric, roller, and motor that goes with this model number is: 24721FLR. - HD Progressive 1.3 Screen Surface
- Ideal for applications where projector brightness and screen size require an increase in gain, the white surface offers high-fidelity color reproduction, and allows for more flexibility with ambient light conditions. This surface works for video as well as charts and graphs in a corporate setting. Cone 150° Gain: 1.3
- Tensioning System
-
- Smooth Roll Technology to keep your screen perfectly flat
- Slim-Tab, a lower profile and stronger tab design to keep your screen perfectly taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- Key Features
-
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- UL Plenum rated case
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness on front projection surfaces
- Seamless screen surface
Included Options - Box Only - Screen Fabric Available Separately
- This screen comes with the box only, meaning the desired screen material must be purchased separately. This design allows the box to be installed during the construction phase while the screen can be installed later, once construction is complete . This ensures the screen won't be damaged during construction
- SCB-100 RS-232 Control
- An added circuit board that allows for opening or closing the screen with a relay switch or RS-232 protocol communication
- Low Voltage Control (LVC)
- Allows the included wall switch, as well as devices such as automation systems, third-party wall switches, and remotes that support LVC, to raise or lower the screen remotely
UPC: 717068367852 In the Box Da-Lite 24721BLR Tensioned Large Advantage Electrol 135 x 240" Ceiling-Recessed Motorized Screen (120V, Box Only) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24721BLR Tensioned Large Advantage Electrol 135 x 240" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24721BLR Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 135 x 240" / 342.9 x 609.6 cm (screen material available separately) | | Diagonal | 275" / 698.5 cm | | | | Gain | 1.3 | | Viewing Angle | 150° | | Screen Surface | HD Progressive 1.3 | | | | Motor | Box only; no motor | | Included Controls | Low voltage control
RS-232 |
