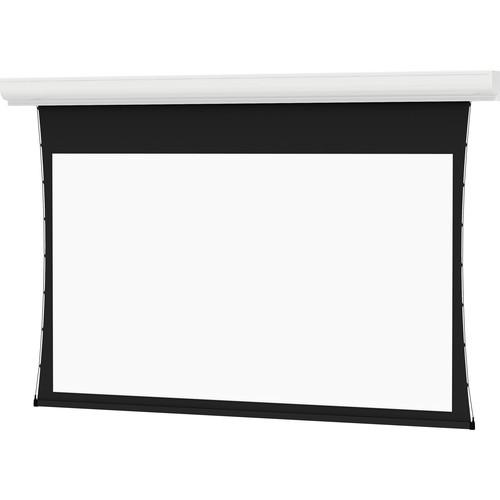

User Manual for Da-Lite 24736LSR Tensioned Contour Electrol 45 x 80" Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24736LSR Tensioned Contour Electrol 45
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24736LSR Tensioned Contour Electrol 45 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 120V 24736LSR Tensioned Contour Electrol 45 x 80" Motorized Screen from Da-Lite supports ceiling or wall mounting. Tensioned screens ensure the smoothest surface possible. HD Progressive 1.3 Screen Surface - Ideal for applications where projector brightness and screen size require an increase in gain, the white surface offers high-fidelity color reproduction, and allows for more flexibility with ambient light conditions. This surface works for video as well as charts and graphs in a corporate setting. Cone 150° Gain: 1.3
Key Features - Standard Low Voltage Control (LVC) to keep your screen operation flexible
- Smooth Roll Technology to keep your screen perfectly flat
- Slim-Tab, a lower profile, stronger tab design to keep your screen taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- Standard black backing retains projected brightness on front projection surfaces
Included Options - Low Voltage Control (LVC)
- Allows controllers, devices, automation systems, and remotes that support LVC to raise or lower the screen remotely
- Silent Motor
- Designed to provide silent operation when raising or lowering the screen
- SCB-100 RS-232 Control
- An added circuit board that allows for opening or closing the screen with a relay switch or RS232 protocol communication
- Black Housing Finish
- The housing for this screen features a black finish
In the Box Da-Lite 24736LSR Tensioned Contour Electrol 45 x 80" Motorized Screen (120V) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24736LSR Tensioned Contour Electrol 45 x 80" Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24736LSR Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Wall and ceiling | | | | Viewing Area | 45.0 x 80.0" / 114.3 x 203.2 cm | | Diagonal | 92.0" / 233.7 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 150 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | Yes | | | | Motor | Quiet | | Included Controls | Low voltage control, RS-232 | | | | Finish | Aluminum | | Length | 100.2" / 254.6 cm |
