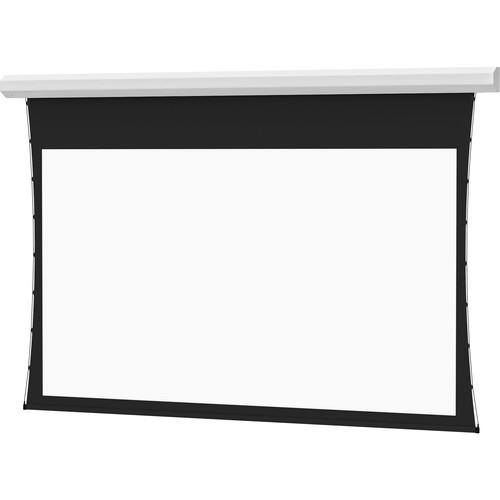

User Manual for Da-Lite 24848 120 x 192" Tensioned Large Cosmopolitan Electrol Wall Ceiling Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24848 120 x 192" Tensioned
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24848 120 x 192" Tensioned contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 24848 Tensioned Large Cosmopolitan Electrol Screen by Da-Lite is a 226" screen that can be mounted on either the wall or ceiling. Operation is provided by a 120 VAC motor. Smooth Roll Technology, a Tensioning Cable System, and a slat bar provide tensioning of the screen surface, ensuring a taut, flat surface. The screen is housed in a two-piece black aluminum case. HD Progressive 1.3 is designed for applications where projector brightness and screen size require an increase in gain. It has a gain of 1.3 and a 150° viewing angle. It offers accurate color reproduction and can handle some ambient light. The surface can be cleaned with mild soap and water, and is flame-retardant and mildew-resistant. This seamless surface is also GREENGUARD GOLD certified. To control your screen, a three-position Decora-style wall switch is included. - In-the-roller motor mounting system
- Smooth Roll Technology to keep the screen flat
- Tensioning Cable System designed to prevent warping and ensure even lateral tension
- Includes a Decora-style three-position wall switch
- HD Progressive 1.3 is seamless
- Black backing retains projected brightness on HD Progressive 1.3
- Two-piece black aluminum case with mounting brackets for wall or ceiling-mounted installation
- Slim-Tab, a lower profile, and stronger tab design to keep your screen taut
In the Box Da-Lite 24848 120 x 192" Tensioned Large Cosmopolitan Electrol Wall/Ceiling Screen Wall Mount Bracket Ceiling Mount Brackets Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24848 120 x 192" Tensioned Large Cosmopolitan Electrol Wall Ceiling Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24848 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Wall and ceiling | | | | Viewing Area | 120.0 x 192.0" / 304.8 x 487.7 cm | | Diagonal | 226.0" / 574.0 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 150 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | Yes | | | | Motor | Standard | | Included Controls | Wall switch | | | | Finish | Aluminum | | Length | 217.0" / 551.2 cm | | | | Package Weight | 309.0 lb | | Box Dimensions (LxWxH) | 0.0 x 12.0 x 15.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
