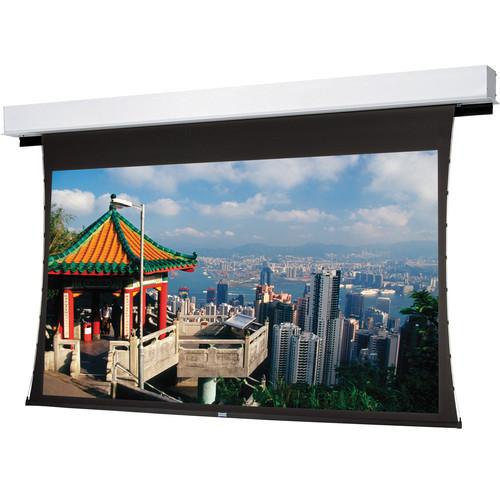

User Manual for Da-Lite 24862 87 x 139" Tensioned Advantage Deluxe Ceiling-Recessed Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24862 87 x 139" Tensioned
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24862 87 x 139" Tensioned contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The white 24862 Tensioned Advantage Deluxe Electrol Projection Screen from Da-Lite is designed to be concealed neatly in a ceiling when not in use, which makes it ideal for corporate conference rooms. The screen can be installed in two stages; the screen case can be installed during construction, and the screen assembly can be attached during the finishing stage. Once the screen is installed, the screen's trim conceals the rough opening in the ceiling, eliminating the need to complete additional trim work. Sliding installation brackets allow you to attach the screen housing to the structure above the drop ceiling. Closure doors keep the screen out of sight when it isn't being used. The HD Progressive 1.3 surface has a gain of 1.3, 150° viewing angle, and is ideal for applications where projector brightness and screen size require an increase in gain. The pure white HD Progressive surface offers true color reproduction, and allows for more flexibility with ambient light conditions. This seamless surface also allows for easy viewing of detail in video as well as charts and graphs in a corporate setting. HD Progressive 1.3 can be cleaned with mild soap and water, and is flame-retardant and mildew-resistant. This surface has also achieved GREENGUARD GOLD Certification. Each side of the material uses a tab guide cable system to maintain even lateral tension and hold the surface flat. This helps to ensure that pixels from the display image don't overlap with one another. Tensioning also helps to prevent creases or folding of your screen. A custom slat bar with added weight maintains vertical tension on the screen surface. For controlling the screen, a three-position Decora-style wall plate is included, along with a cover switch. Low Voltage Control allows the screen to be controlled via a low voltage signal or momentary dry contact from a third-party control system. The LVC is necessary if you are using an IR or RF remote to control your screen. - The screen has two motors, both mounted inside the case. One motor operates the door at the bottom of the case, and the other controls the viewing surface.
- The electrical junction box is internally integrated into the housing, making it possible to install the housing, and then wire to the building's electrical system during construction.
- Smooth Roll Technology to keep your screen flat.
- Slim-Tab, a lower profile, and strong tab design to keep your screen taut.
- White powder-coated case with white endcaps and closure doors for a clean aesthetic.
- The case is UL Plenum rated.
In the Box Da-Lite 24862 87 x 139" Tensioned Advantage Deluxe Ceiling-Recessed Screen (110-120 VAC) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24862 87 x 139" Tensioned Advantage Deluxe Ceiling-Recessed Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24862 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 87.0 x 139.0" / 221.0 x 353.1 cm | | Diagonal | 164.0" / 416.6 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 150 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | Yes | | | | Included Controls | Wall switch | | | | Finish | Aluminum | | Length | 163.2" / 414.7 cm | | | | Package Weight | 188.0 lb | | Box Dimensions (LxWxH) | 172.0 x 13.0 x 10.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
