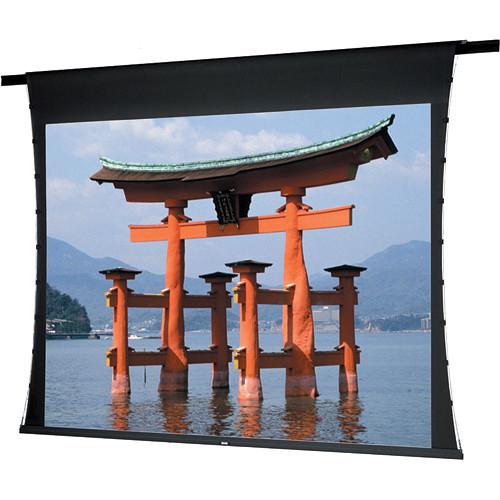

User Manual for Da-Lite 24868F Tensioned Large Advantage Deluxe Electrol 110 x 176" Ceiling Recessed Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24868F Tensioned Large Advantage Deluxe
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24868F Tensioned Large Advantage Deluxe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description For larger venue installs, the 120V 24868F Tensioned Large Advantage Deluxe Electrol 110 x 176" Ceiling Recessed Motorized Screen (box available separately) from Da-Lite is designed to eliminate the extra step of finishing the screen with trim. The Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work. Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.
Tensioning is provided to help ensure the smoothest surface possible. Additionally, as part of the Deluxe family, the screen features a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic.
Note: This screen does not include a box, and is designed for installations where a box has previously been selected. Please ensure the box you are using is compatible - i.e., is of the same size and has the same option - as with this fabric, roller, and motor assembly. The box that goes with this model number is: 24868B. - HD Progressive 1.3 Screen Surface
- Ideal for applications where projector brightness and screen size require an increase in gain, the white surface offers high-fidelity color reproduction, and allows for more flexibility with ambient light conditions. This surface works for video as well as charts and graphs in a corporate setting. Cone 150° Gain: 1.3
- Tensioning System
-
- Smooth Roll Technology to keep your screen flat
- Slim-Tab, a lower profile and stronger tab design to keep your screen taut
- Tensioning Cable System to prevent warping and ensure even lateral tension
- Key Features
-
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- UL Plenum rated case
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness on front projection surfaces
- Seamless screen surface
Included Options - Fabric, Roller, Motor Only - Box Available Separately
- This screen comes with the screen fabric, roller, and motor only, meaning the box must be purchased separately. This design allows the box to be installed during the construction phase while the screen can be installed later, once construction is complete. This ensures the screen won't be damaged during construction
UPC: 717068373389 Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24868F Tensioned Large Advantage Deluxe Electrol 110 x 176" Ceiling Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24868F Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 110 x 176" / 279.4 x 447 cm | | Diagonal | 208" / 528.3 cm | | | | Gain | 1.3 | | Viewing Angle | 150° | | Screen Surface | HD Progressive 1.3 | | | | Motor | Standard | | Included Controls | None |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
