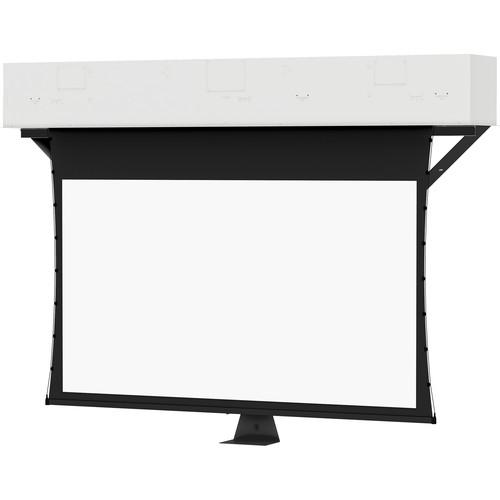

User Manual for Da-Lite 24873 58 x 104" Conference Electrol Tensioned Ceiling-Recessed Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 24873 58 x 104" Conference
- Product category: Electric Screens (Wide Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Wide Formats)
|
User manual for the Da-Lite 24873 58 x 104" Conference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 24873 Tensioned Conference Electrol by Da-Lite is a ceiling-recessed screen designed to keep a room with clean lines. Its 58 x 104" viewing area has a 16:9 aspect ratio and 119" diagonal. 12" of black drop at the top allows for extra space to deploy your screen, handy for high-ceiling installations. Provided trim on the screen conceals the rough opening cut in the ceiling to install the screen. HD Progressive 1.3 is designed for applications where projector brightness and screen size require an increase in gain. It has a gain of 1.3 and a 75° half angle. It offers accurate color reproduction and can handle some ambient light. The surface can be cleaned with mild soap and water, and is flame-retardant and mildew-resistant. This seamless surface is also GREENGUARD GOLD certified. - Integrated video conferencing camera shelf (camera sold separately)
- Slim-Tab, a lower profile, and stronger tab design to keep your screen taut
- Smooth Roll Technology to keep your screen flat
- Tensioning Cable System to prevent warping and ensure even lateral tension
- White powder-coated case for a clean aesthetic
- Standard black backing retains projected brightness on front projection surfaces
- Low Voltage Control allows the screen to be controlled via a low voltage signal or momentary dry contact from a third-party control system. The LVC is necessary if you want to use an IR or RF remote to control your screen
In the Box Da-Lite 24873 58 x 104" Conference Electrol Tensioned Ceiling-Recessed Screen Three-Position Wall Switch and Cover Plate Internal and External Brackets Assembly Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 24873 58 x 104" Conference Electrol Tensioned Ceiling-Recessed Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24873 Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:9 | | Style | Ceiling-recessed | | | | Viewing Area | 58.0 x 104.0" / 147.3 x 264.2 cm | | Diagonal | 119.0" / 302.3 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 1.3 | | Viewing Angle | 150 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | Yes | | | | Motor | Standard | | Included Controls | Low voltage control, Wall switch | | | | Voltage | 120 VAC/60 Hz | | Weight | 383.0 lb / 173.7 kg, approximate | | | | Package Weight | 667.0 lb | | Box Dimensions (LxWxH) | 149.0 x 30.0 x 25.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
