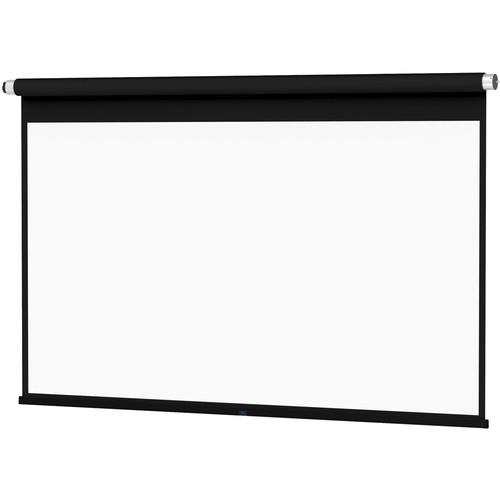

User Manual for Da-Lite 25085HV ViewShare Advantage Electrol Retrofit 72.5 x 116" Ceiling-Recessed Motorized Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 25085HV ViewShare Advantage Electrol Retrofit
- Product category: Video Conference Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Video Conference Screens
|
User manual for the Da-Lite 25085HV ViewShare Advantage Electrol Retrofit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 120V 25085HV ViewShare Advantage Electrol Retrofit 72.5 x 116" Ceiling-Recessed Motorized Screen from Da-Lite enables you to upgrade an existing Advantage Electrol screen by adding ViewShare video conferencing features. It includes a new fabric, motor, and roller assembly. Also included is a Logitech C930e HD Webcam (integrated in the screen's slat bar) and a Jabra SPEAK 410 MS Speakerphone. - Video Spectra 1.5 Screen Surface
- Video Spectra 1.5 is a fiberglass surface with a reflective coating for lower output non-high-definition projectors. It offers increased brightness with a reduced viewing angle. Suitable for uncontrolled ambient light. Cone: 70° Gain: 1.5
- For Screens with Type 1 Motor
- This retrofit is for screens that have the Type 1 Motor. The Type 1 Motor is identified by a 4-wire connector and has manual limit adjustments on the end of the motor
- Integrated Logitech C930e HD Webcam
-
- The auto-focusing camera is integrated into the slat bar
- Plug-and-play connectivity
- Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
- H.264/SVC video compression
- Supports H.264 SVC 1080p for Microsoft Lync 2013, along with optimizations for call performance in single or multiparty HD video
- 90° field of view
- Up to 4X zoom in 1080p
- Rightlight 2 Technology for clear image in various lighting environments, even low light
- Optional light application for control of pan, tilt and zoom
- Carl Zeiss lens
- External privacy shutter
- Automatic low-light correction
- High-speed USB 2.0 certified (ready for USB 3.0)
- System requirements: Windows 7 or 8 / Mac OS X 10.7 or higher
- 2.4 GHz Intel Core 2 Duo processor
- 2GB of RAM
- Adequate hard drive space for recorded videos
- USB 2.0 port
- Compatible with UVC apps, and H/264 for Lync 2013. Optimized for Lync and Skype
- Integrated Jabra SPEAK 410 MS Speakerphone
-
- Connects via USB
- Requires 120 VAC power (AC adapter included)
- Microsoft certified
- Wideband hi-fi frequency response
- Includes digital signal processing, which digitally optimizes your voice and music while suppressing echoes
- Omnidirectional microphone and noise filter enhances call clarity by eliminating background noise
- Standard (E-STD) microphone sensitivity is comparable to a normal telephone receiver and is used in most telephone devices
- Mute function directly on the device
- Key Features
-
- Standard Silent Drive System to keep your screen whisper quiet
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- Smooth Roll Technology to keep your screen flat
- Standard black backing retains projected brightness
- Seamless screen surface
UPC: 717068394339 In the Box Da-Lite 25085HV ViewShare Advantage Electrol Retrofit 72.5 x 116" Ceiling-Recessed Motorized Screen (Type 1 Motor, 120V) Limited 5-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 25085HV ViewShare Advantage Electrol Retrofit 72.5 x 116" Ceiling-Recessed Motorized Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 25085HV Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 16:10 | | Style | Ceiling-recessed | | | | Viewing Area | 72.5 x 116" / 184.2 x 294.6 cm | | Diagonal | 137" / 347.1 cm | | | | Gain | 1.5 | | Viewing Angle | 70° | | Screen Surface | Video Spectra 1.5 | | | | Motor | For screens with Type 1 Motor motor | | Included Controls | Note: Requires motor from existing Electrol screen. Please verify which motor type your existing screen has before selecting a Retrofit screen. For compatibility information, please visit Da-Lite's website |
