User Manual for Da-Lite 32" Yorkshire Floor Lectern with Sound Click to enlarge the picture
Contents of the user manual for the Da-Lite 32" Yorkshire Floor Lectern with
- Product category: Lecterns & Podiums Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Lecterns & Podiums
|
User manual for the Da-Lite 32" Yorkshire Floor Lectern with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

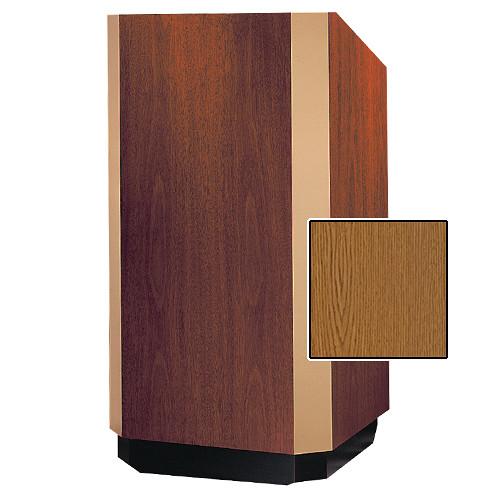

Product description The 32" Yorkshire Floor Lectern from Da-Lite provides a digital clock/timer, LED light, two power outlets, and a sound system in a full-sized form. The lectern features a medium oak veneer finish with brass trim on the front. This lectern is for use with 220VAC electrical systems only.A gooseneck microphone on the reading surface is connected to an on-board AmpliVox sound system, providing 100W of RMS power through a 6.5” woofer and a high-output tweeter. Connections are available for another microphone, another speaker, a line out, and a line in. In the Box Da-Lite 32" Yorkshire Floor Lectern with Sound (Medium Oak Veneer, Brass Trim, 220VAC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 32" Yorkshire Floor Lectern with Sound in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite York Specs | | | Rated Power Output | 100 W continuous | | Max SPL Level | 107 dB @ 1 m | | Frequency Response | 65 Hz to 15 kHz | | Speaker Type | 6.5" (165.1 mm) woofer, high-output tweeter | | Mic Input | Lo-Z, balanced, phantom power, XLR | | Auxiliary Input | Lo-Z, balanced, phantom power, XLR | | Line Input | Hi-Z, unbalanced, .25" phone | | Sensitivity | -52 dBV (2.5 mV RMS) | | Line | -14 dBV (200 mV RMS) | | Mic Output | Lo-Z, transformer balanced, XLR post fader | | Line Output | Buffer isolated, 1/4" phone post fader | | Speaker Output | 70 W @ 4 , switched, 1/4" phone | | AC Power Requirements | 110 to 125 VAC, 50/60 Hz (40 VA nominal, 120 VA max)
210 to 240 VAC, 50/60 Hz | | | | Construction | Wood
Rectilinear design with brass trim | | Electrical Components | High-intensity reading light
LED clock/timer with countdown function | | Power Requirements | 220 VAC, 50/60 Hz | | Reading Surface | 29.5 x 15.5" (74.9 x 39.4 cm) | | Dimensions (W x H x D) | 32.0 x 48.0 x 22.0" (81.2 x 121.9 x 55.8 cm) | | Weight | Approximately 125 lb (56.6 kg) |
