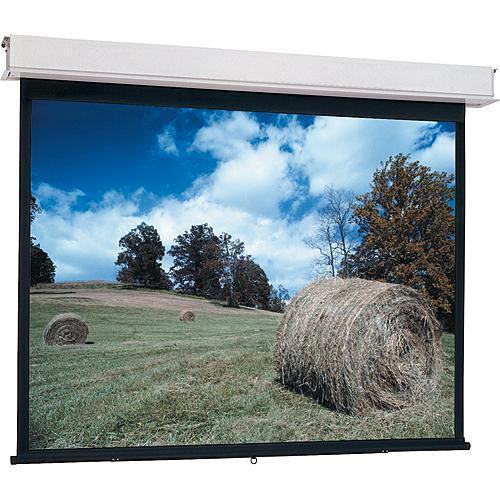

User Manual for Da-Lite 34720 Advantage Manual Projection Screen with CSR Click to enlarge the picture
Contents of the user manual for the Da-Lite 34720 Advantage Manual Projection Screen
- Product category: Manual Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Manual Screens
|
User manual for the Da-Lite 34720 Advantage Manual Projection Screen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Da-Lite 69 x 110" Advantage Manual Projection Screen with CSR (Controlled Screen Return) is a simple but extremely flexible screen for office, educational or business purposes. Not sure which screen finish you want? This screen has the advantage of allowing you to install the case first and then the fabric once it is decided on. The floating brackets (which are built into the extruded aluminum case) permit you to either center or offset the screen - a real bonus if you're not sure when and where the screen will be installed. The edges of the case are finished and can be built-in with ceiling tiles.
The Controlled Screen Return feature provides continuous, quiet and smooth return of the screen into its case. In business and education venues, this is important because it assures uninterrupted attention to the lecture at hand. Note: Suitable for use in environmental air space. Screens with the CSR feature must be fully extended. There are no intermediate stopping positions - Designed for ceiling recessed installation
- Screen is equipped with the patented CSR system (Controlled Screen Return)
- A floating mounting method utilizing adjustable roller brackets is designed into a lightweight, extruded aluminum case allowing the centering of offsetting of the screen
- Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
In the Box Da-Lite 34720 Advantage Manual Projection Screen with CSR (Controlled Screen Return) (69 x 110") Pull Cord Mounting Brackets Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 34720 Advantage Manual Projection Screen with CSR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 34720 Specs | | | Front/Rear Projection | Front | | Style | Ceiling-recessed | | | | Viewing Area | 69.0 x 110.0" / 175.3 x 279.4 cm | | Diagonal | 130.0" / 330.2 cm | | Overall HxW | 94.0 x 146.0" / 238.8 x 370.8 cm | | | | Gain | 1.5 | | Viewing Angle | 70 degrees | | | | Included Controls | Controlled screen return | | | | Package Weight | 108.0 lb | | Box Dimensions (LxWxH) | 128.0 x 13.0 x 10.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
