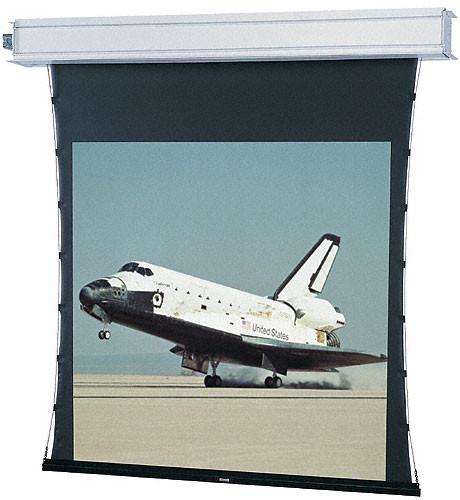

User Manual for Da-Lite 35191L Advantage Tensioned Electrol Motorized Front Projection Screen

Click to enlarge the picture
Da-Lite 35191L Advantage Tensioned Electrol Motorized Front Projection Screen Contents of the user manual for the Da-Lite 35191L Advantage Tensioned Electrol Motorized
  • Product category: Electric Screens (Wide Formats) Da-Lite
  • Brand: Da-Lite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Da-Lite Electric Screens (Wide Formats)

User manual for the Da-Lite 35191L Advantage Tensioned Electrol Motorized contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Da-Lite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!



Product description

The Dalite 90 x 160" Advantage Tensioned Electrol Motorized Front Projection Screen is unique in its design. It is manufactured to be installed during the construction phase of your media, class or board room. Afterwards, the fabric is added to complete the set-up. This stylish ceiling recessed screen is for those who don't want the screen showing when it is not immediately needed but available at the flip of a switch. The concealed design of the Advantage Electrol gives it an edge over similar screens in its category.For easy installation, the Tensioned Advantage Deluxe is available with optional SCB-100 and SCB-200 (RS-232 serial control board) or optional Low Voltage Control unit built into the case.
  • Handsome white powder coated closure doors and case provide a clean look and allow easy installation of ceiling tiles
  • Front projection surfaces standard with black backing for opacity
  • Quiet operation
  • Case put in during the "rough-in" stage
  • Patented in-the-roller motor
  • UL plenum rated case
UPC: 717068121058 In the Box Da-Lite 35191L Advantage Tensioned Electrol Motorized Front Projection Screen (90 x 160")
  • Wall Switch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Da-Lite 35191L Advantage Tensioned Electrol Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Da-Lite 35191L Specs

    Style Advantage
    Front/Rear Projection Front
    Mount Ceiling recessed
    Finish DA-Mat - flame retardant and mildew resistant
    Tension Control Tensioned
    Keystone Control Not Applicable
    Overall Size Not Specified by Manufacturer
    Image Size 90 x 160" (2.3 x 4 m)
    Diagonal 184" (4.7 m)
    Format HDTV
    Aspect Ratio 16:9
    Masking Options Black masking borders standard
    Voltage Screen motor is electrically operated (120V, 60Hz)
    Integrated Control Two motors - one to operate door and one to operate screen
    Pre-set but adjustable limit switches to automatically stop fabric door in the "up" and "down" positions
    Control Options Single motor Low Voltage Control(LVC) - external
    Single motor Low Voltage Control(LVC) - built-in electrical connections will be on right end of screen case on units with built-in LVCs
    Wireless Remote Control for LVC
    Radio Frequency Remote
    Infrared Remote
    Video Projector Interface - 12V or 5V
    Key Locking Cover Plate for 120V Switch or LVC
    Key Operated Switch for 120V only (NOTE: Cannot be used with LVC)
    220/240 Volt (50Hz) Motor
    NET-100 Ethernet-Serial Adapter
    Color White
    Material Rigid aluminum
    Length 177.25" (4.5 m)
    Shipping Weight 169 lbs (76.8kg)
    Package Weight 182.0 lb
    Box Dimensions (LxWxH) 185.0 x 13.0 x 10.0"
