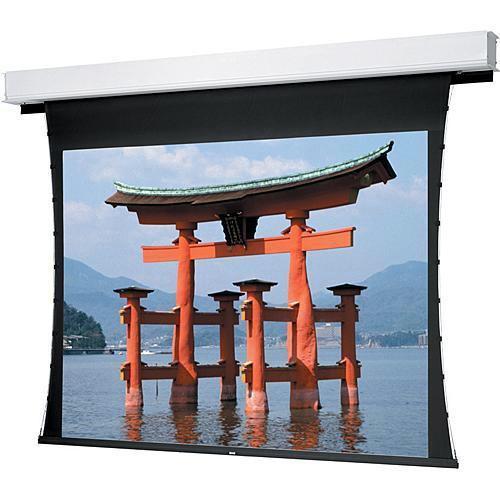

User Manual for Da-Lite 37007EL Large Advantage Electrol Motorized Projection Screen 132 x 176", 220V, 50Hz Click to enlarge the picture
Contents of the user manual for the Da-Lite 37007EL Large Advantage Electrol Motorized
- Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)
|
User manual for the Da-Lite 37007EL Large Advantage Electrol Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 132 x 176" Large Advantage Electrol Projection Screen from Dalite is a unique design. Construction of this ceiling recessed screen permits the case to be installed first and the fabric added later once a suitable projection surface is decided on. This is a big "plus" since companies constructing viewing rooms may not be certain of what they need in a screen. However, the Advantage permits the basic frame to be installed in the ceiling - ready for a finished fabric assembly to be added when all is prepped. It is designed for larger projection venues such as auditoriums, theaters and lecture halls. Unlike similar screens of its size, The Large Advantage Electrol features one-piece construction. The system contains a rugged braking system that stops the screen at exactly the height you want it without any "coasting". The motor is oiled-for-life and contains a thermal cutout switch to help prevent burnouts. The junction box is integrated into the housing which facilitates hooking the screen up to the house electrical system. The exceptionally quiet motor gives it an edge over similarly priced screens. Quiet "up" and "down" operation makes the Advantage more professional in appearance as well as less distracting to your audience. The Advantage Electrol has several options which make it a great choice for schools, lecture halls, libraries and corporate environments. Because it can be installed during the construction phase of your office, there is no pressure to buy a "finished" screen while budgets may still be on the table. The option of many remote controls also adds to its flexibility.The tab-tensioning feature assures a flat, undistorted image. The back of the screen is designed with additional bracing to promote an even flatness to the screen surface. When this is achieved, the projected image appears more professional leaving less room for your audience to be distracted by a potentially skewed image. Note: This item is ONLY wired for 220V, European voltage - Designed to have the case installed during the "rough-in" stages of construction and the fabric assembly during the finish stage
- Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
- Standard with a Decora style three position wall switch
- Suitable for use in environmental air space in accordance with section 300-22 (c) of the National Electric Code, and sections 2-128, 12-010 (3) and 12-100 of the Canadian Electrical Code, part 1, CSA C22.1
- Matte White fabric up to and including 10' high will be seamless; Glass Beaded fabric up to and including 8' high will be seamless; Video Spectra 1.5 and High Contrast Matte White fabric are available in sizes up to 8' high; High Power fabric is available in sizes up to 9 x 12' and will be seamless up to 6' high
In the Box Da-Lite 37007EL Large Advantage Electrol Motorized Projection Screen (132 x 176", 220V, 50Hz Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 37007EL Large Advantage Electrol Motorized Projection Screen 132 x 176", 220V, 50Hz in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 37007EL Specs | | | Style | Large Advantage Electrol | | Front/Rear Projection | Front or Rear | | Mount | Ceiling recessed | | Finish | Dual Vision; flame retardant and mildew resistant fiberglass | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 132 x 176" (3.4 x 4.5 m) (H x W) | | Diagonal | 220" (5.6 m) | | Format | Video | | Aspect Ratio | 4:3 | | Masking Options | Standard black masking borders | | | | Voltage | 220V, 50Hz This item is ONLY wired for 220V, European voltage | | Integrated Control | With Low Voltage Controller
Motor mounted inside the roller
Noise silencer to be three wire quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor
Electric brake to prevent coasting
Preset, adjustable limit switches to automatically stop picture surface in the "up" and "down" positions | | Control Options | Single Motor Low Voltage Control System
Dual Motor Low Voltage Control System
Single Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
Dual Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter | | | | Color | White | | Material | Extruded aluminum | | Length | 208.25" (5.3 m) | | | | Shipping Weight | 801 lb (363.3kg) | | | | Package Weight | 620.0 lb | | Box Dimensions (LxWxH) | 214.0 x 23.0 x 18.0" |
