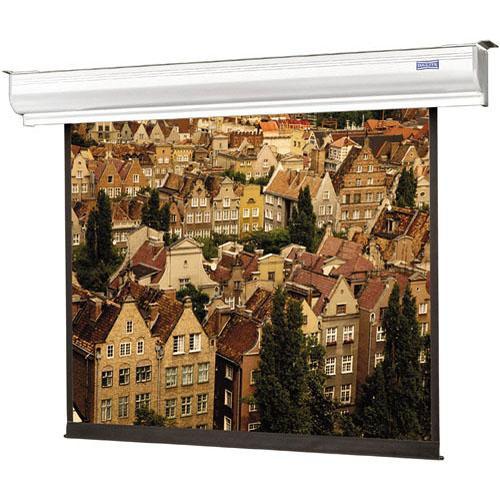

User Manual for Da-Lite 37089LS Contour Electrol Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 37089LS Contour Electrol Motorized Projection
- Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)
|
User manual for the Da-Lite 37089LS Contour Electrol Motorized Projection contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 10 x 10' Contour Electrol Motorized Front Projection Screen makes a great addition to any school room or business boardroom. It features a strong extruded aluminum case which is available in either black, white or graphite finish. When not in use, this screen easily retracts into its case which can either be mounted on a wall or in the ceiling. The Contour Electrol is a beautiful addition to any installation. The motor is oiled-for-life and features an automatic thermal cut-off switch to help prevent overloads. In addition, the screen contains a unique braking system to stop it exactly where you want it. The junction box is incorporated into the housing to help with installation and facilitates connection to the building's power supply. A three-position switch controls the screen and contains a cover plate. The Silent Motor feature assures ultra quiet operation - a must for schools, libraries, hospitals and corporate boardrooms. - The retractable screen gives your room a finished, neat appearance
- Veneer choices include: Honey Maple, Medium Oak, Heritage Walnut, Mahogany, Light Oak, Natural Walnut, Cherry
- Optional speakers are available
- Adjustable mounting brackets make installation quick and easy
- For easy installation, the Contour Electrol is available with optional SCB-100 and SCB-200 (RS-232 serial control board), Low Voltage Control unit, Silent Motor, Silent Motor with Low Voltage Control or Video Projector Interface built into the case
UPC: 717068566958 In the Box Da-Lite 37089LS Contour Electrol Motorized Projection Screen (10 x 10') Three Position Wall Switch Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 37089LS Contour Electrol Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 37089LS Specs | | | Style | Contour Electrol | | Front/Rear Projection | Front | | Mount | Wall or Ceiling | | Finish | Matte White HC; flame retardant and mildew resistant fiberglass | | Tension Control | Non-Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 10 x 10' (3.1 x 3.1 m) | | Diagonal | 170" (4.3 m) | | Format | Square (Audio-Visual) | | Aspect Ratio | 1:1 | | Masking Options | Standard black masking borders | | | | Voltage | 120V, 60Hz | | Integrated Control |
Silent Motor
With Low Voltage Controller
Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions | | Control Options |
Three position wall switch (included)
Single Motor Low Voltage Control (LVC) (external)
Single Motor Low Voltage Control (LVC) - built-in (adds 3.75" to length of case)
Wireless Remote Control for LVC; Radio Frequency Remote
Infrared Remote
Key Locking Switch Cover Plate for 120V Switch or LVC
Key Operated Switch for 120V only (Note: Cannot be used with LVC)
220 Volt (50Hz) Motor
Anchor Speaker Option, pair with brackets | | | | Color | White, textured powder coat Black available as an option | | Material | Extruded aluminum | | Length | 129.75" (3.3 m) | | | | Shipping Weight | 101 lbs (45.8kg) | | | | Package Weight | 101.0 lb | | Box Dimensions (LxWxH) | 137.25 x 13.0 x 10.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
