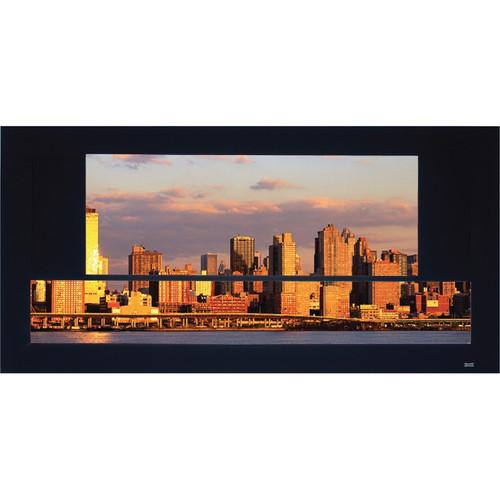

User Manual for Da-Lite 38063EV Dual Format Imager Masking System Click to enlarge the picture
Contents of the user manual for the Da-Lite 38063EV Dual Format Imager Masking
- Product category: Masking Panels & Strips Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Masking Panels & Strips
|
User manual for the Da-Lite 38063EV Dual Format Imager Masking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite Cinemascope 81.54 x 192" to Video 81.5 x 145" Dual Format Imager Masking System is a sophisticated and intriguing way to get multi-format projection on one screen. When used in conjunction with one of Dalite's Cinema Contour, DA-Snap, Perm-Wall or Imager fixed frame projection screens; you'll be able to mask Cinemascope to HDTV format or HDTV to NTSC Video format. In fact, it can be used over any other permanently wall mounted screen. The motor is an oiled-for-life, quick reversal type with built-in thermal overload cut-off to prevent burn-outs. It also features an advanced braking system that stops when asked and prevents "drifting". The frame is finished with Dalite's Pro-Trim - a light absorbing material that not only produces a stylish but functional edge to the screen. Pro-Trim will absorb any ambient light that happens to contaminate the surrounding area of the screen. The mechanism will lower and employ Dalite's "Stay-Flat" masking system that will assure an undistorted image. The masking fabric is joined to the slat bar and provides a perfect mask that is equally balanced on each side of the screen. The Dual Format Imager gives you the flexibility to go as large as 220" (diagonal) - that translates into an 18' screen - more than enough for the home media room, business boardroom or lecture hall. The system is operated by either a wall switch or optional remote control. The masking fabric will lower from the top with the slat bar concealed in the bottom frame. Note: This item is ONLY wired for 220V, European voltage. - Electrically operated and sophisticated horizontal masking system
- Frame standard with Pro-Trim finish. Pro-Trim is a fabric frame covering that aesthetically enhances the appearance of the installation while absorbing light that surrounds the viewing area
- System can be installed over Dalite's Cinema Contour, Imager, DA-Snap or Perm-Wall fixed frame screen, rear projection screens or over any other permanently wall mounted screen
UPC: 717068417335 In the Box Da-Lite 38063EV Dual Format Imager Masking System (Cinemascope 81.54 x 192" to Video 81.5 x 145", 220V, European Voltage) One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 38063EV Dual Format Imager Masking System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 38063EV Specs | Style | Dual Format Imager | Front/Rear Projection | Front or Rear | Mount | Wall | Finish | Pro-Trim | Tension Control | Tensioned | Keystone Control | Not Applicable | | Overall Size | 94.5 x 208" (2.5 x 5.3 m) | Image Size | Cinemascope 81.54 x 192" to Video 81.5 x 145" (2.1 x 4.9 m to 2.1 x 3.7 m) | Diagonal | Open: 208" (5.3 m) Closed: 166" (4.2 m) | Format | Cinemascope to Video | Aspect Ratio | 2.35 to 4:3 | Masking Options | Cinemascope 81.54 x 192" to Video 81.5 x 145" (2.1 x 4.9 m to 2.1 x 3.7 m) | | Voltage | 220V, 50Hz, not more than 1.2 amp This item is ONLY wired for 220V, European voltage. | Integrated Control | Wall switch | Control Options | Remote control | | Color | Black (framed in Pro-Trim) | Material | Aluminum frame; roller is cold drawn steel | Length | 94.5 x 208" (2.5 x 5.3 m) | | Shipping Weight | 272 lb (123.4kg) | | Package Weight | 272.0 lb | Box Dimensions (LxWxH) | 215.0 x 29.0 x 15.0" |
