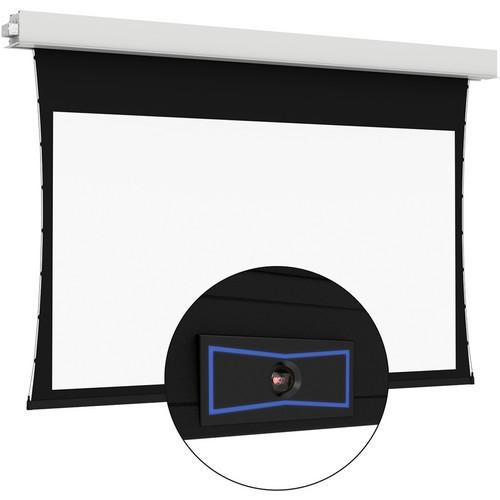

User Manual for Da-Lite 72.5 x 116" 24072LS ViewShare Advantage Tensioned Electrol Ceiling-Recessed Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 72.5 x 116" 24072LS ViewShare
- Product category: Video Conference Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Video Conference Screens
|
User manual for the Da-Lite 72.5 x 116" 24072LS ViewShare contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 24072LS ViewShare Advantage Tensioned Electrol by Da-Lite is a ceiling-recessed 16:10 projection screen with a built-in Logitech C930e HD webcam in the slat bar. This allows you to convert your standard conference room into a videoconference room. A Jabra SPEAK 410 MS speakerphone is also included, allowing you to speak to other presenters and hear them clearly at your end. An included local CAT5-to-USB extender and a power supply connects the screen to the included powered USB hub, which connects all the components to your computer. The screen is installed in the ceiling, but the ViewShare Tensioned Advantage already has trim around the edges to conceal the opening cut in your ceiling for installation. Installation of the screen can be done in two stages. The screen case can be installed during the rough-in construction stage, and the fabric assembly can be completed during the finishing stage. This prevents damaging the screen surface during construction of the room. The HD Progressive 0.9 surface has a 0.9 gain, 170° viewing angle, and is used with moderate to high output projectors. The light gray surface achieves an ideal balance between color reproduction and image contrast. The seamless surface can be cleaned with mild soap and water and is flame-retardant and mildew-resistant. It is also GREENGUARD GOLD Certified. The screen surface is tensioned, which allows for a flat, even, and clean image. This helps to ensure that pixels from the display image don't overlap with one another. Tensioning also helps to prevent creases or folding of your screen. -
- Logitech C930e HD camera integrated into the screen
- Plug-and-play connectivity
- Compatible with free peer-to-peer software, such as Lync and Skype
- Standard Silent Drive System to reduce noise from the screen motor
- Low Voltage Control allows the screen to be controlled via a low voltage signal or momentary dry contact from a third-party control system. The LVC is necessary if you want to use an IR or RF remote to control your screen
- Smooth Roll Technology to keep your screen flat
- Slim-Tab, a low profile, and strong tab design to keep your screen taut
- Tensioning Cable System designed to prevent warping and ensure even lateral tension
- Includes a Decora-style, three-button wall switch
- Also includes a local CAT5-to-USB extender and power supply, 6’ USB cable, USB speakerphone, and a powered USB hub. A CAT5 cable to connect the screen to the extender is not included, must be purchased separately, and cannot exceed 200’ in length
- 12” standard black drop at top
UPC: 717068060883 In the Box Da-Lite 72.5 x 116" 24072LS ViewShare Advantage Tensioned Electrol Ceiling-Recessed Screen Local CAT5 to USB Extender with Power Supply 6' USB Cable USB Speakerphone Powered USB Hub Limited 5-Year Warranty Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 72.5 x 116" 24072LS ViewShare Advantage Tensioned Electrol Ceiling-Recessed Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 24072LS Specs | | | Front/Rear Projection | Front | | Style | Ceiling-recessed | | | | Viewing Area | 72.5 x 116.0" / 184.2 x 294.6 cm | | Diagonal | 137.0" / 348.0 cm | | Extra Top Drop | 12" / 30.5 cm | | | | Gain | 0.9 | | Viewing Angle | 170 degrees | | Masking | All four sides | | Tensioned | Yes | | Black Backing | Yes | | | | Included Controls | Wall switch | | | | Finish | Aluminum | | Length | 135.5" / 344.2 cm | | | | Package Weight | 140.0 lb | | Box Dimensions (LxWxH) | 143.0 x 13.0 x 10.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
