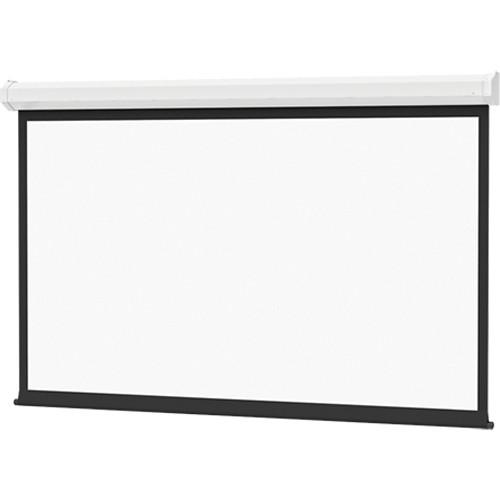

User Manual for Da-Lite 74711ESVN 96 x 120" Cosmopolitan Electrol Wall & Ceiling Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 74711ESVN 96 x 120" Cosmopolitan
- Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)
|
User manual for the Da-Lite 74711ESVN 96 x 120" Cosmopolitan contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The 74711ESVN Cosmopolitan Electrol Wall & Ceiling Screen from Da-Lite is designed to be mounted or hung from a wall or ceiling. Its 96 x 120" viewing area has a 154" diagonal and 5:4 aspect ratio. The Video Spectra 1.5 viewing surface offers a 70° total viewing angle (35° half angle) and a gain of 1.5. It is a fiberglass surface with a reflective coating for lower output non high-definition projectors. It offers increased brightness with a reduced viewing angle and is suitable for uncontrolled ambient light. Video Spectra 1.5 can be cleaned with mild soap and water, and is flame-retardant and mildew-resistant. It is also GREENGUARD GOLD Certified. To control your screen, a three-position Decora-style wall switch is included. This screen uses a silent motor, which offers reduced operating noise compared to the standard motor. Note: Da-Lite offers honey maple, light oak, medium oak, heritage walnut, cherry, and mahogany veneers. After placing your order, you will be contacted for your choice of veneer. You can choose white or black endcaps to match the veneer selected. - An optional floating mounting bracket allows the screen to be mounted onto wall or ceiling studs and aligned left or right after installation (veneer can be added to bracket to match case). This must be purchased separately.
- An optional ceiling trim kit is available, enabling this screen to be easily recessed into a drop ceiling.
In the Box Da-Lite 74711ESVN 96 x 120" Cosmopolitan Electrol Wall & Ceiling Screen (Veneer Case) Three-Position Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 74711ESVN 96 x 120" Cosmopolitan Electrol Wall & Ceiling Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 74711ESVN Specs | | | Front/Rear Projection | Front | | Aspect Ratio | 5:4 | | Style | Wall and ceiling | | | | Viewing Area | 96.0 x 120.0" / 243.8 x 304.8 cm | | Diagonal | 154.0" / 391.2 cm | | | | Gain | 1.5 | | Viewing Angle | 70 degrees | | Masking | All four sides | | Black Backing | Yes | | | | Included Controls | Wall switch | | | | Finish | Veneer | | Length | 128.0" / 325.1 cm |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
