Da-Lite 84316LS Advantage Electrol Motorized Front

Search your instruction manual in PDF to download

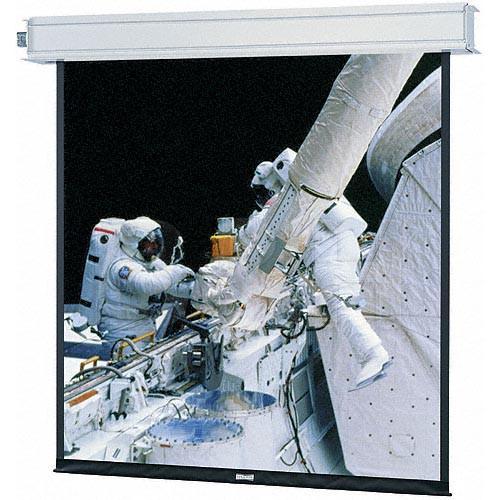

User Manual for Da-Lite 84316LS Advantage Electrol Motorized Front Projection Screen

Click to enlarge the picture
Da-Lite 84316LS Advantage Electrol Motorized Front Projection Screen Contents of the user manual for the Da-Lite 84316LS Advantage Electrol Motorized Front
  • Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
  • Brand: Da-Lite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)

User manual for the Da-Lite 84316LS Advantage Electrol Motorized Front contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Da-Lite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!



Product description

The Dalite 69 x 92" Advantage Electrol Projection Screen is a unique design. Construction of this ceiling recessed screen permits the case to be installed first and the fabric added later once a suitable projection surface is decided on. This is a big "plus" since companies constructing viewing rooms may not be certain of what they need in a screen. However, the Advantage permits the basic frame to be installed in the ceiling - ready for a finished fabric assembly to be added when all is prepped. The exceptionally quiet motor gives it an edge over similarly priced screens. Quiet "up" and "down" operation makes the Advantage more professional in appearance as well as less distracting to your audience. The Silent Motor feature assures ultra quiet operation - a must for libraries, schools, hospitals and corporate boardrooms. feature assures ultra quiet operation - a must for libraries, schools, hospitals and corporate boardrooms.The Advantage Electrol has several options which make it a great choice for schools, lecture halls, libraries and corporate environments. Because it can be installed during the construction phase of your office, there is no pressure to buy a "finished" screen while budgets may still be on the table. The option of many remote controls also adds to its flexibility.
  • Designed to have the case installed during the "rough-in" stages of construction and the fabric assembly during the finish stage
  • The Silent Motor feature assures ultra quiet operation - a must for libraries, schools, hospitals and corporate boardrooms. feature assures ultra quiet operation - a must for libraries, schools, hospitals and corporate boardrooms.
  • Handsome finished white aluminum case provides a clean look and allows easy installation of ceiling tiles
  • Standard with a Decora style three position wall switch
  • UL Plenum Rated case
  • Matte White fabric up to and including 10' high will be seamless; Glass Beaded fabric up to and including 8' high will be seamless; Video Spectra 1.5 and High Contrast Matte White fabric are available in sizes up to 8' high; High Power fabric is available in sizes up to 9'x12' and will be seamless up to 6' high
UPC: 717068172708 In the Box Da-Lite 84316LS Advantage Electrol Motorized Front Projection Screen (69 x 92")
  • Wall Switch
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Da-Lite 84316LS Advantage Electrol Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Da-Lite 84316LS Specs

    Style Advantage Electrol Silent Motor
    Front/Rear Projection Front
    Mount Ceiling recessed
    Finish Spectra; flame retardant and mildew resistant fiberglass
    Tension Control Non-Tensioned
    Keystone Control Not Applicable
    Overall Size Not Specified by Manufacturer
    Image Size 69 x 92" (1.8 x 2.3 m) (H x W)
    Diagonal 120" (3 m)
    Format Video
    Aspect Ratio 4:3
    Masking Options Standard black masking borders
    Voltage 120V, 60Hz Silent Motor
    Integrated Control With Low Voltage Connector

    Motor mounted inside the roller
    Noise silencer to be three wire quick reversal type, oiled for life, with automatic thermal overload cutout, integral gears, capacitor
    Electric brake to prevent coasting
    Preset, adjustable limit switches to automatically stop picture surface in the "up" and "down" positions
    Control Options Single Motor Low Voltage Control System
    Dual Motor Low Voltage Control System
    Single Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
    Dual Motor Low Voltage Control System with a Three-Button Wireless Radio Frequency Remote Receiver and Transmitter
    Color White
    Material Extruded aluminum
    Length 101.5" (2.6 m)
    Shipping Weight 89 lb (40.4kg)
    Package Weight 90.0 lb
    Box Dimensions (LxWxH) 110.0 x 13.0 x 10.0"
