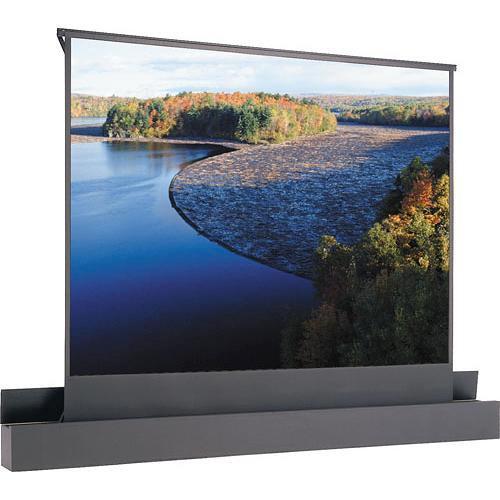

User Manual for Da-Lite 84774 Ascender Electrol Motorized Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 84774 Ascender Electrol Motorized Front
- Product category: Floor Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Floor Screens
|
User manual for the Da-Lite 84774 Ascender Electrol Motorized Front contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 65 x 116" Ascender Electrol Motorized Front Projection Screen is an interesting and functional option for venues where a ceiling mounted screen is not viable.This unique screen can be recessed into the floor and with the flip of a switch rise to comfortable viewing height. If you prefer not to recess the screen into the floor, the Ascender can be mounted within an attractive case. The concealed approach to this screen makes it appealing to people who are limited by space and need a screen which can be hidden when not required. Note: This item is wired for 220 Volts, European voltage - Allows screen to be recessed into the floor for a concealed appearance or installed into a decorative surrounding
- Motorized spring-assisted scissor mechanism raises the screen surface from the housing to ensure smooth operation
- A trap door housing keeps the screen and lift mechanism hidden until the screen is activated
UPC: 717068604070 In the Box Da-Lite 84774 Ascender Electrol Motorized Front Projection Screen (65 x 116") One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 84774 Ascender Electrol Motorized Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 84774E Specs | | | Style | Ascender Electrol | | Front/Rear Projection | Front | | Mount | Floor mounted | | Finish | Spectra; flame retardant and mildew resistant fiberglass | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | Not Specified by Manufacturer | | Image Size | 65 x 116" (1.7 x 3 m) | | Diagonal | 133" (3.4 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Black masking borders standard | | | | Voltage | 220 Volts, 50Hz | | Integrated Control | Operated by low voltage control unit, momentary contact rocker switch, and inputs for optional infrared or radio frequency remote control
Preset but adjustable limit switches to automatically stop picture surface in the "up" and "down" position | | Control Options | Wireless Remote Control
Radio Frequency Remote
Radio Frequency Range Extender available
Key Locking Cover Plate for LVC Switch
220 Volt (50Hz) Motor | | | | Color | Finished with a black primer coat - ready to accept final finish by others | | Material | Wood; finished with a black primer coat - ready to accept final finish by others | | Length | 134" (3.4 m) | | | | Shipping Weight | 500 lbs (226.8kg) | | | | Package Weight | 527.0 lb | | Box Dimensions (LxWxH) | 142.0 x 28.0 x 22.0" |
