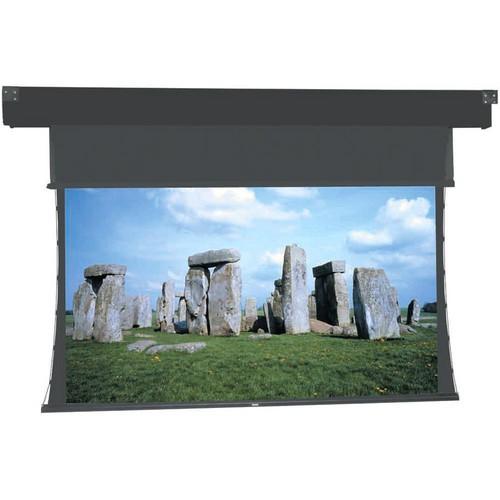

User Manual for Da-Lite 86916ES Horizon Electrol Motorized Masking Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 86916ES Horizon Electrol Motorized Masking
- Product category: Masking Electric Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Masking Electric Screens
|
User manual for the Da-Lite 86916ES Horizon Electrol Motorized Masking contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 86916ES Horizon Electrol Motorized Masking Projection Screen gives you the creative freedom to mask your screen to any of four factory pre-set aspect ratios. The benefit of having a masking screen is that it saves you the cost of purchasing several different screens to accommodate various formats.The motor is oiled-for-life and contains a thermal overload cutoff system that helps prevent burnouts. The braking system is sophisticated and will stop the screen where you want it without any "coasting". The Horizon is designed so that the masking is maintained flush against the screen. In this way, shadows are kept to a minimum, thereby assuring a smooth, uninterrupted projection. The screen includes a six button switch for opening and closing. The switch also controls "halt" when your screen meets the format required. Note: This item is ONLY wired for 220V, European voltage. - Native Video format with masking to HDTV, Letterbox and Cinemascope formats
- The Horizon Electrol is the first screen available allowing four position masking with the touch of a button
- Dry contacts are provided on the electronic controller so you can adjust the screen to the factory presets from a properly equipped master control
- Careful engineering ensures the masking remains flush against the surface of the screen preventing distracting shadows around the projected image
- Equipped with a six button wall switch, you can automatically open and close the screen, halt operation and position the screen into any of the four aspect ratios
- Matte White will be seamless in all sizes. High Contrast Matte White and Video Spectra 1.5 fabrics are available in sizes up to 8' in height. High Power fabric will be seamless in sizes up to and including 6' in height
In the Box Da-Lite 86916ES Horizon Electrol Motorized Masking Projection Screen (116" Format Width) 6-Button Wall Switch Cover Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 86916ES Horizon Electrol Motorized Masking Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 86916ES Specs | | | Style | Horizon Electrol | | Front/Rear Projection | Front | | Mount | Wall or ceiling | | Finish | DA-Mat; flame-retardant and mildew resistant fiberglass | | Tension Control | Tensioned | | Keystone Control | No | | | | Overall Size | Not Specified by Manufacturer | | Image Size | | | Diagonal | | | Format | | | Aspect Ratio | Video: 4:3
HDTV: 16:9
Letterbox: 1.85:1
Cinemascope: 2.35:1 | | Masking Options | Black masking borders standard | | | | Voltage | 220V, 50Hz This item is ONLY wired for 220V, European voltage. | | Integrated Control | Six-button switch with a cover plate | | Control Options | Infrared Wireless Remote Control
Radio Frequency Wireless Remote Control
Silent Motor | | | | Color | Black | | Material | Wood | | Length | | | | | Package Weight | 223.0 lb | | Box Dimensions (LxWxH) | 154.0 x 15.0 x 12.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 89 owners. Add your rating and experience with the product.
