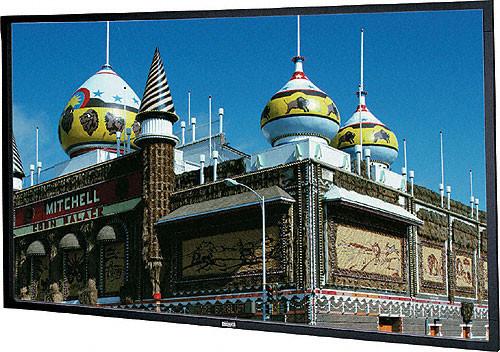

User Manual for Da-Lite 87716 Imager Fixed Frame Front Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 87716 Imager Fixed Frame Front
- Product category: Fixed Frame Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Fixed Frame Screens
|
User manual for the Da-Lite 87716 Imager Fixed Frame Front contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 52 x 92" Imager Fixed Frame Front Projection Screen is an extremely and precisely flat screen ideal that is perfect for all types of video projection. The wall mounted Imager is the perfect solution for a library, school or office where a reliable, unadorned and manual wall screen is desired. It is available in various formats to suit any projection need (Video, AV, HDTV and Cinemascope). The Imager will present no technical problems and will provide many years of uninterrupted and reliable service. The Imager is easy to install on the wall or inside a cabinet and available in a wide variety of styles to blend with virtually any decor. - The projection fabric is attached to the frame by a Touch Fastener
- Frame available with Pro-Trim finish for an additional charge; Pro-Trim is a fabric frame covering that aesthetically enhances the appearance of the installation while absorbing light that surrounds the viewing area
- Da-Mat, High Contrast Da-Mat, Da-Tex (rear), Pearlescent, Cinema Vision, High Contrast Cinema Vision and Dual Vision fabrics up to and including 12' high will be seamless
- Audio Vision, High Contrast Audio Vision and High Contrast Cinema Perf fabrics up to and including 8' high will be seamless
In the Box Da-Lite 87716 Imager Fixed Frame Front Projection Screen (52 x 92") Mounting Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 87716 Imager Fixed Frame Front Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 87716 Specs | | | Style | Imager | | Front/Rear Projection | Front | | Mount | Wall (Bracket included) | | Finish | DA-Mat High Contrast; All screen surfaces are fire and mildew resistant | | Tension Control | Tensioned - Screen surface attaches to frame with a touch-fastener strip | | Keystone Control | Not Applicable | | | | Overall Size | 56 x 96" (1.4 x 2.4 m) | | Image Size | 52 x 92" (1.3 x 2.3 m) | | Diagonal | 106" (2.7 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Not Applicable: The Dalite Multi-Mask Imager screen is also available - a fixed frame screen that features both horizontal and vertical masking and is available with a choice of eleven projection screen surfaces | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Thick textured matte black powder coated | | Material | 6063-T5 aluminum | | Length | Screen frame is 2 x 2-1/32" | | | | Shipping Weight | 30 lb (14kg) | | | | Package Weight | 33.0 lb | | Box Dimensions (LxWxH) | 104.0 x 9.0 x 8.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
