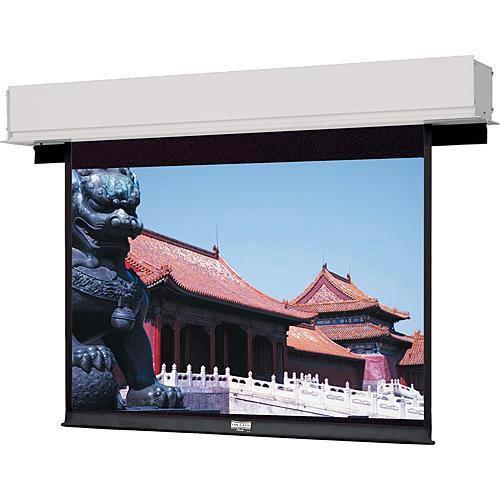

User Manual for Da-Lite 88132ER Advantage Deluxe Electrol Motorized Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 88132ER Advantage Deluxe Electrol Motorized
- Product category: Electric Screens (Square & 4:3 Formats) Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Electric Screens (Square & 4:3 Formats)
|
User manual for the Da-Lite 88132ER Advantage Deluxe Electrol Motorized contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|
Product description The Dalite 60 x 80" Advantage Deluxe Electrol Projection Screen is designed to have the case installed during the "rough-in" stages of construction and the fabric assembly during the finish stage. Its handsome white powder coated closure doors and case provide a clean look and allow easy installation of ceiling tiles. The Advantage Deluxe has a motorized trapdoor that opens and closes to let the fabric out. Note: This item is ONLY wired for 220V. The standard Advantage model will be ceiling recessed, it just doesn't have the motorized door. Instead, it has a 2" slot on the bottom where the fabric drops out. - Patented in-the-roller motor mounting system for quiet operation
- As screen formats change with technology, fabric replacement is simple and inexpensive
- Matte White fabric up to and including 10' high will be seamless; Glass Beaded fabric up to and including 8' high will be seamless; Video Spectra 1.5 and High Contrast Matte White fabric up to and including 8' high will be seamless; High Power fabric up to and including 6' high will be seamless
UPC: 717068708334 In the Box Da-Lite 88132ER Advantage Deluxe Electrol Motorized Projection Screen (60 x 80") 3-Position Wall Switch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 88132ER Advantage Deluxe Electrol Motorized Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 88132ER Specs | | | Style | Advantage Deluxe Electrol | | Front/Rear Projection | Front | | Mount | Ceiling recessed | | Finish | Spectra - flame retardant and mildew resistant fiberglass | | Tension Control | Non-Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 60 x 80" (1.5 x 2 m) | | Image Size | 60 x 80" (1.5 x 2 m) | | Diagonal | 100" (2.54 m) | | Format | Video | | Aspect Ratio | 4:3 | | Masking Options | Not Applicable | | | | Voltage | 220V, 50Hz European Voltage, screen motor is electrically operated This item is ONLY wired for 220V. | | Integrated Control |
SCB-100 - RS-232 Serial Control Board
Two motors - one to operate door and one to operate screen
Pre-set but adjustable limit switches to automatically stop fabric door in the "up" and "down" positions | | Control Options | Single motor Low Voltage Control (LVC)
Built-in electrical connections will be on right end of screen case on units with built-in LVCs
Wireless Remote Control for LVC
Radio Frequency Remote
Infrared Remote
Video Projector Interface (12V or 5V)
Key Locking Cover Plate for 120V Switch or LVC
Key Operated Switch for 120V only (NOTE: Cannot be used with LVC)
220/240V (50Hz) Motor
NET-100 Ethernet-Serial Adapter | | | | Color | White | | Material | Rigid aluminum | | Length | 96.25" (2.4 m) | | | | Shipping Weight | 108 lbs (49.0kg) | | | | Package Weight | 118.0 lb | | Box Dimensions (LxWxH) | 106.0 x 13.0 x 10.0" |
