User Manual for Da-Lite 88605HD Fast-Fold Deluxe Projection Screen Click to enlarge the picture
Contents of the user manual for the Da-Lite 88605HD Fast-Fold Deluxe Projection Screen
- Product category: Folding Screens Da-Lite
- Brand: Da-Lite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Da-Lite Folding Screens
 |
User manual for the Da-Lite 88605HD Fast-Fold Deluxe Projection Screen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Da-Lite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Da-Lite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Da-Lite product will considerably shorten its lifespan!
|

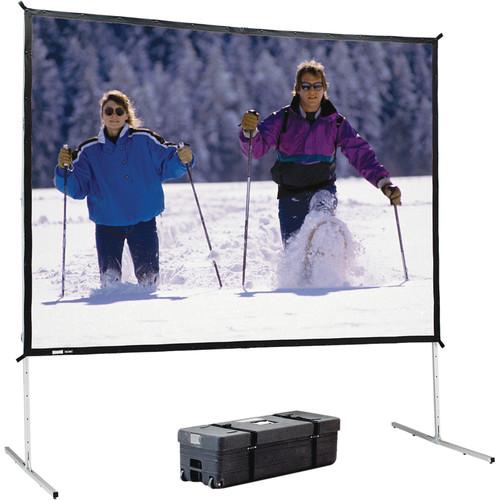

Product description - Fast Fold Deluxe Projection Screen

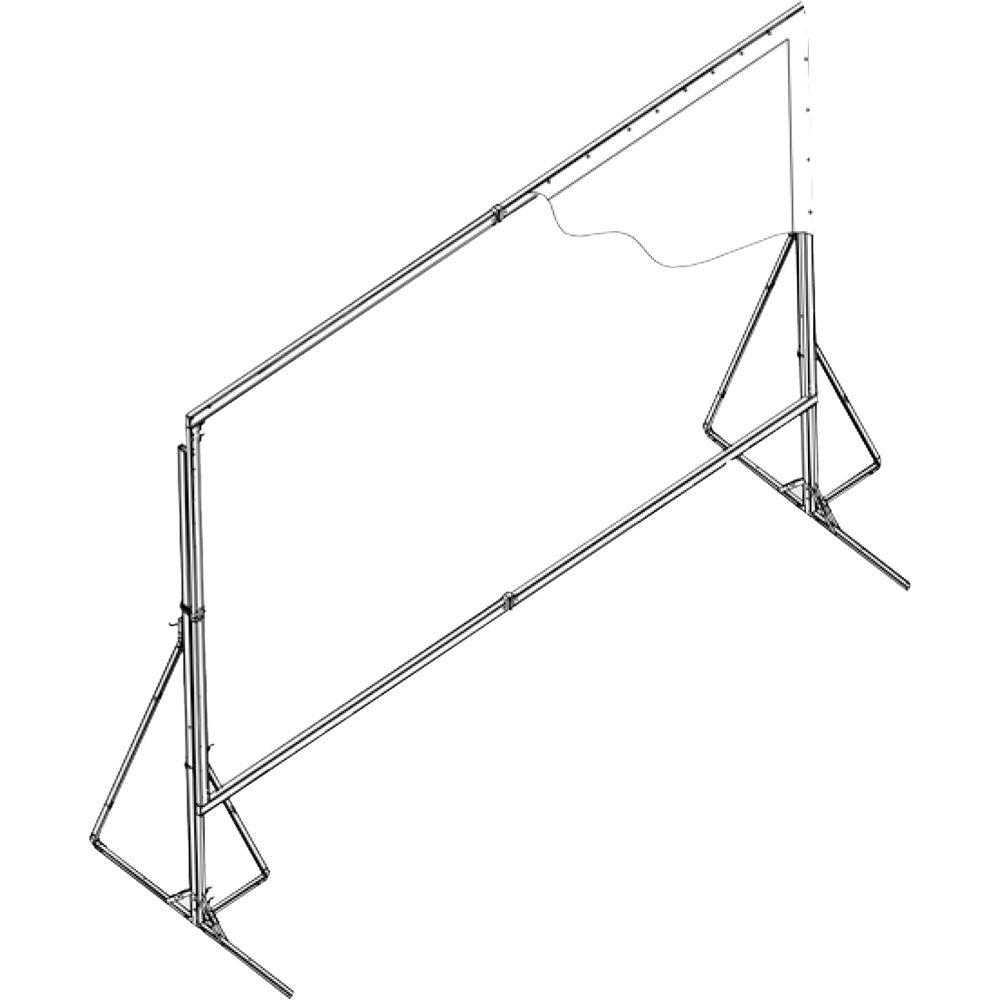

The Dalite 62 x 108" Fast-Fold Deluxe Projection Screen is a quick set-up system for Point-of-Purchase and trade shows. It is also very useful for people who travel much of the time and need a system that they can carry around - either in their car or via airplane.The legs of this screen are made from 1.25" rugged aluminum tubing and are easy to set-up using the quick release latches. This is a completely portable system featuring compactness and ease of use. No tools are required for set-up or break-down making it even more desirable as a travel unit.The tab-tensioning feature assures a flat, undistorted image. The back of the screen is designed with additional bracing to promote an even flatness to the screen surface. When this is achieved, the projected image appears more professional leaving less room for your audience to be distracted by a potentially skewed image. - Includes folding frame and legs
- Protective pouch holds projection surface
- Speedy Crank storage compartment
- Fast-Fold Deluxe frames fold without coming apart utilizing simple Snap-Latch Hinge design
- Corner braces are concealed within frame tubing providing greater strength and protection
- Rugged 1.25" extruded aluminum tubing on frame provides greater strength while allowing for lightweight frame reliability
- Legs mount to frame with Speedy Cranks requiring no tools for set up (Includes Speedy Cranks)
- Legs incorporate same Snap-Latch Hinge and concealed corner brace design as frame

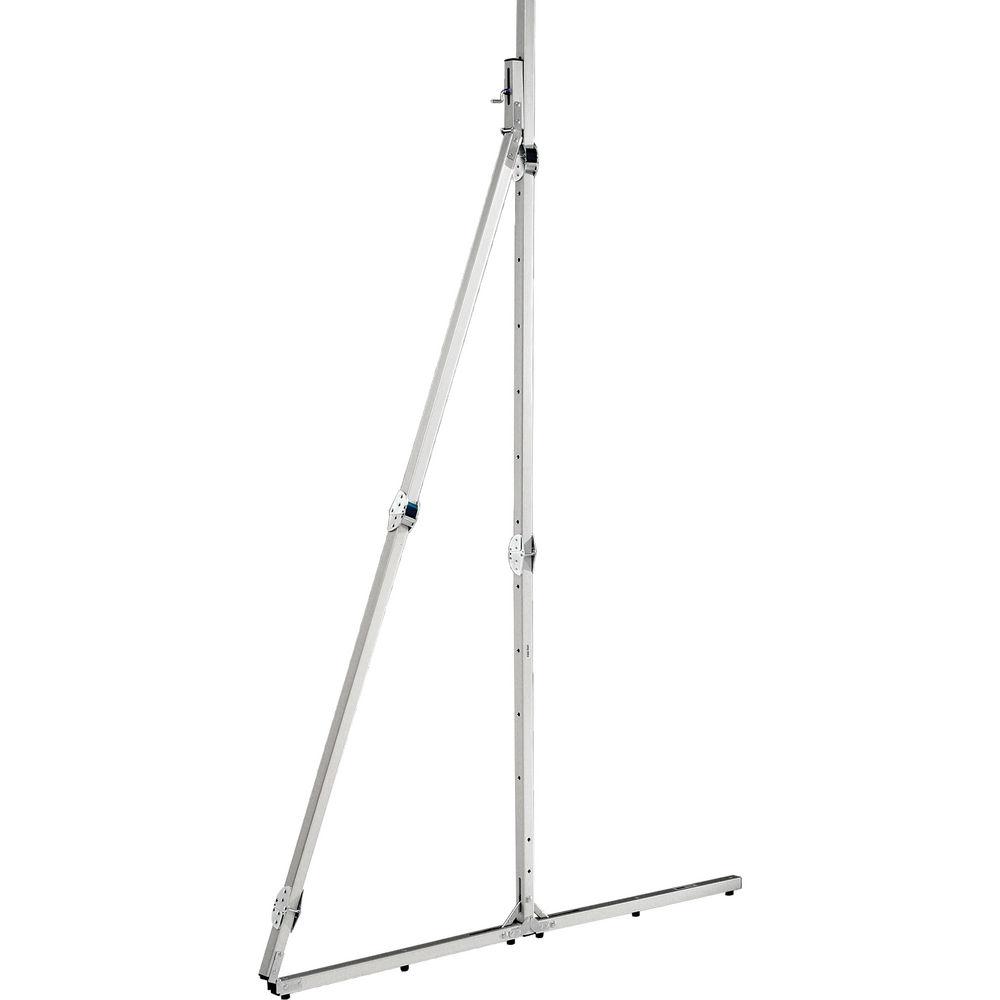

- Heavy Duty Legs are made from 1.25" aluminum tubing and provide additional stability
UPC: 717068797604 In the Box Da-Lite 88605HD Fast-Fold Deluxe Projection Screen (62 x 108") Heavy Duty Legs Frame and Support Screen Speedy Crank Wheeled Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Da-Lite 88605HD Fast-Fold Deluxe Projection Screen in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDa-Lite 88605HD Specs | | | Style | Fast-Fold Deluxe | | Front/Rear Projection | Front | | Mount | Free Standing | | Finish | DA-Mat - flame retardant and mildew resistant | | Tension Control | Tensioned | | Keystone Control | Not Applicable | | | | Overall Size | 62 x 108" (1.6 x 2.7 m) | | Image Size | 58 x 104" (1.5 x 2.6 m) | | Diagonal | 125" (3.2 m) | | Format | HDTV | | Aspect Ratio | 16:9 | | Masking Options | Not Applicable | | | | Voltage | Not Applicable | | Integrated Control | Not Applicable | | Control Options | Not Applicable | | | | Color | Aluminum tubing | | Material | Aluminum (height adjustments up or down in 6" increments)
With Chrome Frame | | Length | Not Specified by Manufacturer | | | | Shipping Weight | 80 lbs (36.3kg) | | | | Package Weight | 82.0 lb | | Box Dimensions (LxWxH) | 44.0 x 18.0 x 13.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
